Chemglass Dual Vacuum Trap Assembly with O-Rings, Airfree, Schlenk

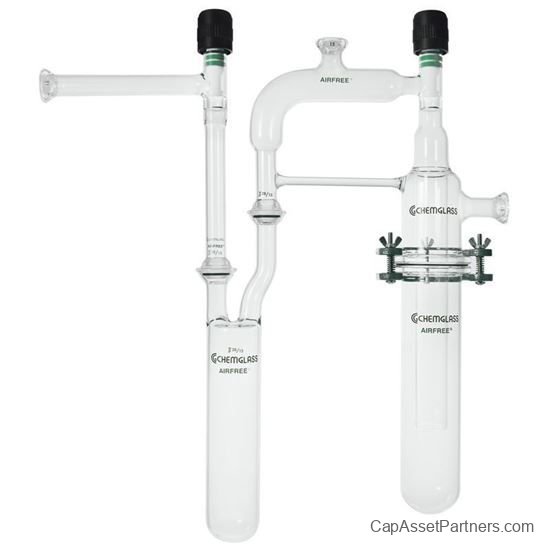

The Chemglass Dual Vacuum Trap Assembly is engineered for superior performance in laboratory environments, designed for compatibility with AF-0060 or AF-0061 manifolds. This essential equipment is optimal for effective vacuum management, enhancing your workflow with its innovative features.
Product Features
- Dual Trap Design: Features a robust dual trap assembly, ensuring efficient vacuum retention and operation.

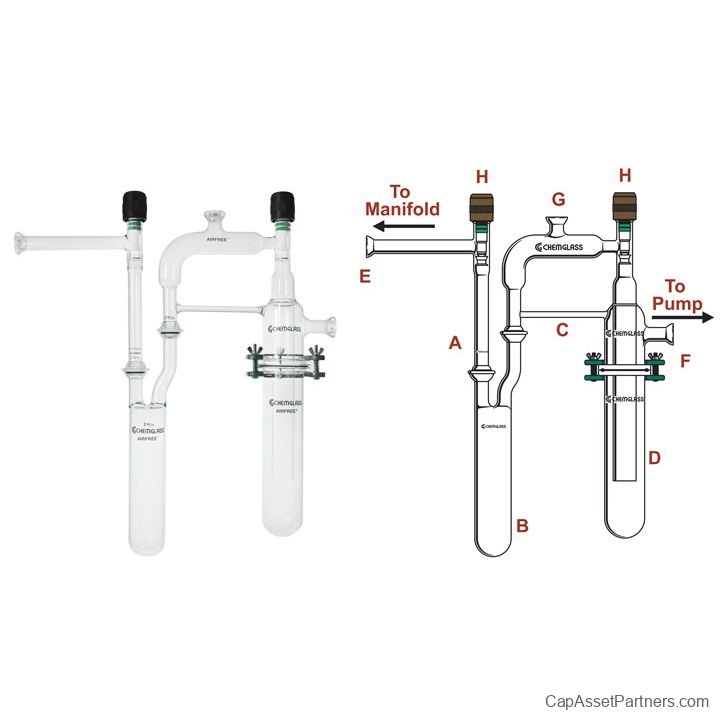

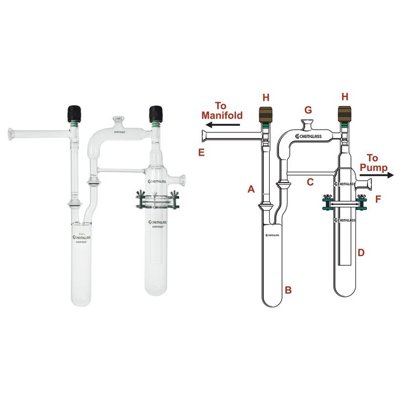

- Pre-Trap Specifications: Includes a pre-trap (B) measuring 51mm OD x 250mm long with 28/15 polished socket joints for seamless connection to the main trap.
- Main Trap Construction: The main trap (C) is built with a 57mm flat o-ring flange and a body size of 57mm OD x 250mm long.
- Center-to-Center Distance: The distance between the traps is measured at 175mm for optimal configuration.
- Versatile Connections: Manifold connection via a #15 o-ring joint (E), while the fore-pump is connectable to the main trap assembly at the (F) port using AF-0070 or AF-0071 adapters for various flexible tubing sizes.
- Vacuum Measurement Integration: A #15 o-ring joint (G) allows for the connection of a vacuum measurement device through an AF-0300-07 thermocouple adapter.
- Isolation Capability: Both traps can be isolated from the manifold or pump through 0-12mm Chem-Vac™ Chem-Cap® valves (H), providing flexibility in system configuration.
- Universal Compatibility: This assembly can be conveniently connected to either side of the AF-0060 or AF-0061 manifolds, enhancing adaptability in your laboratory setup.
Included Components
- CG-139-02 horseshoe clamp (1)
- CG-150-05 #28 S.S. pinch clamps (2)
