EcoChyll X3 Rotary Evaporator, 12L

Get Quote Add to Quote List

Do you have a EcoChyll X3 Rotary Evaporator, 12L you want to sell?

We buy used equipment! Learn about selling

Manufactured by: Ecodyst

Category: Rotary Evaporators

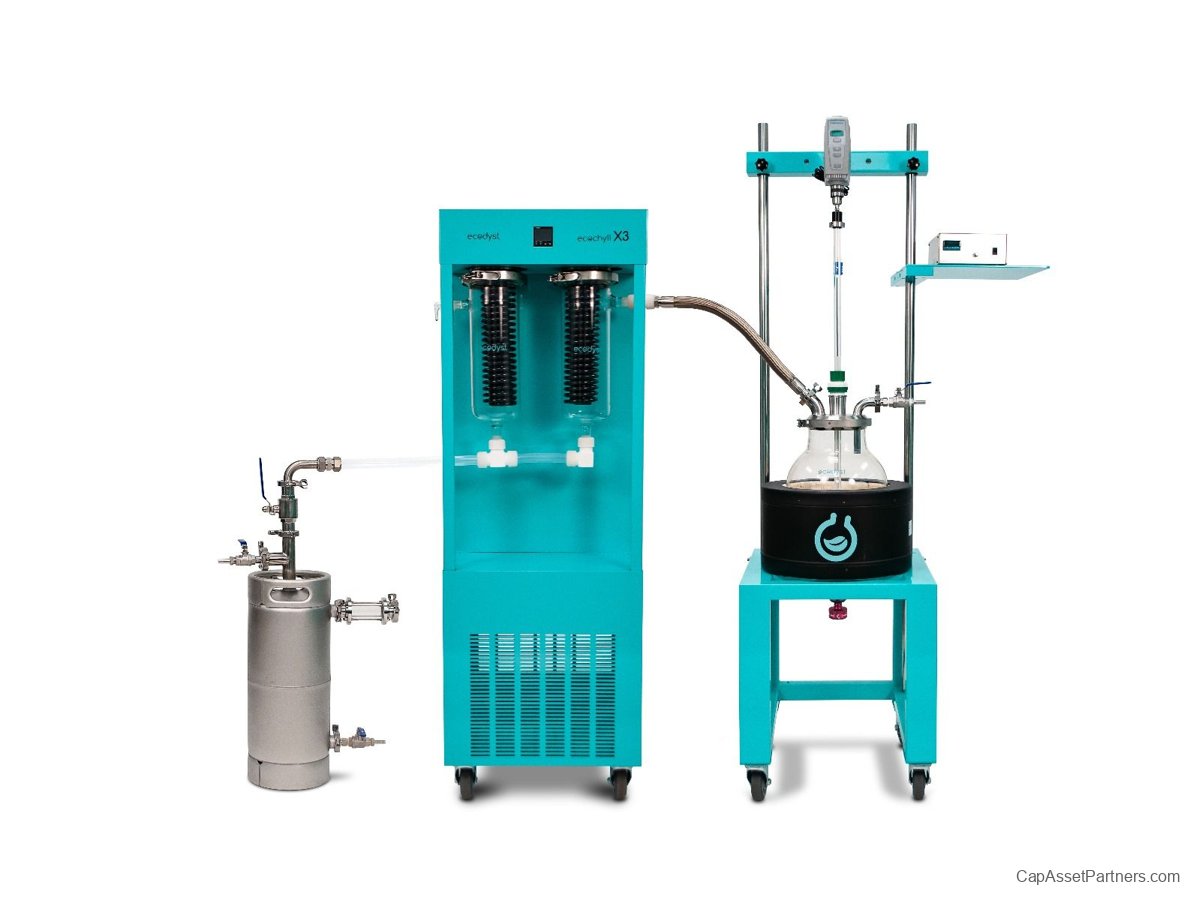

Ecodyst EcoChyll X3 Rotary Evaporator, 12L

EcoChyll X3 Rotary Evaporator - 12L

The EcoChyll X3 Rotary Evaporator is engineered for high-speed solvent recovery, boasting an impressive 12L capacity. This advanced system doubles as a benchtop appliance, providing continuous direct cooling for your samples. Recognized as best-in-class, it combines exceptional evaporation rates with energy efficiency, ensuring a cost-effective and user-friendly experience.

Unmatched Efficiency for the Cannabis Industry

Designed with the cannabis industry in mind, the EcoChyll X3 preserves cannabinoids in oils thanks to its high evaporation rates and mild operating conditions. Its innovative technology facilitates effective solvent recovery while providing the convenience of decarboxylation. The evaporation system incorporates a bottom oil drain valve for safe operation, minimizing potential damage and accommodating substantial load volumes.

Key Features:

High-Efficiency Metallic Condensers: Proprietary condensers designed specifically for rotary evaporators enhance the condensation process.

Direct Self-Cooling Technology: Say goodbye to dry ice and antifreeze chillers. The EcoChyll utilizes a direct cooling system for optimal performance.

Environmentally Friendly: This evaporator is energy efficient and sustainable, aligning with eco-conscious laboratory practices.

Convenient Drain Valve: Fast and easy oil collection is made possible, boosting efficiency during solvent recovery.

EcoChyll X3 12L Package Includes:

SKU	Product
ECO-555-X3	EcoChyll X3, 115V Dual Condenser Double Loop Halar Coated Stainless Steel Coils
ECO-777-133	Condenser Body, Left Side,120mm Flat O-Ring Flange, 1" OD Pipe
ECO-777-134	Condenser Body, Right Side,120mm Flat O-Ring Flange, 1" OD Pipe
ECO-777-199	120 mm Quick Release Clamp
ECO-777-197	Viton O-Ring, 120mm
ECO-777-005	1" PFA Elbow Compression Fitting
ECO-777-015	1" PFA Tee Compression Fitting
ECO-777-010	1" PFA Straight Compression Fitting
ECO-777-007	Vacuum tubing, 5ft length
ECO-777-008	Advanced Self Cleaning Dry Vacuum with Digital Controller
ECO-777-011	Inlet feed tubing 5ft length
ECO-777-115	12 Liter Evaporator Flask, 150mm Flat O-Ring Flange, 1.5" Bottom Drain Valve
ECO-777-203	150mm 4 Neck Stainless Steel Evaporator Lid, 45/50 joint CN, 24/40 joint SN, 2-Elbow 1.5" TC Pipes
ECO-777-034	Zero Dead Space Drain Valve, 2" Beaded Pipe, 1" Beaded Pipe Sidearm, GL-40 Thread
ECO-777-003	150mm Quick Release Clamp
ECO-777-004	150mm Viton O-Ring
ECO-777-037	2" Coupling for Zero Dead Space Drain Valve
ECO-777-016	19mm Polished Stir Shaft, overall length 30.6"
ECO-777-018	5.5" O.D. Teflon Agitator, High Viscosity
ECO-777-019	19mm Stirrer Bearing, 45/50
ECO-777-020	Stirrer Shaft Coupling, 19mm
ECO-777-108	Compact Overhead Stirrer with mounting rod
ECO-777-103	12 Liter Heating Mantle, 4" Diameter Hole in Bottom, 2 Circuits Rated @770 Watts, 115V, 1540 watts total
ECO-777-105	Digital Temperature Controller, 120V, 15 amps, 1800 watts
ECO-777-024	Coiled cord type T type plug
ECO-777-106	Teflon coated Temperature probe 1/4x22
ECO-777-107	PTFE 1/4" Thermocouple Adapter, 24/40
ECO-777-030	EcoChyll X3 and Evaporator Support Stand
ECO-777-128	Beam Torque Wrench with 7/16” deep socket
ECO-777-145	Stainless Steel Tube Fitting, Union, 1" Tube OD
ECO-777-124	Positive Displacement Pump for emptying keg
ECO-777-104	Insulating Mantle Top, for 12 L RBF - Optional: Contact us for more details!
