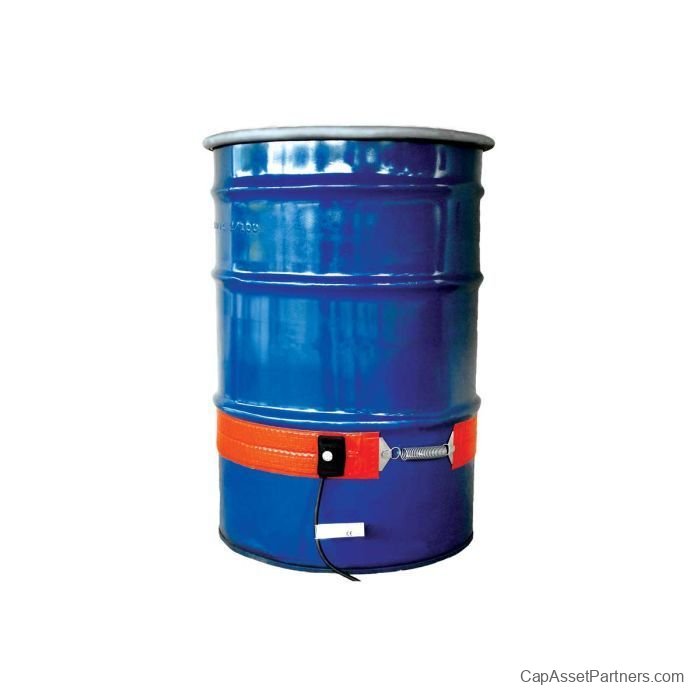

The ECONO Silicone Rubber Drum/Pail Heaters offer an economical and effective solution for heating standard metal drums and pails. With exceptional durability and flexibility, these drum heaters cater to a diverse range of applications, ensuring optimal performance in even the toughest environments.
Key Features:

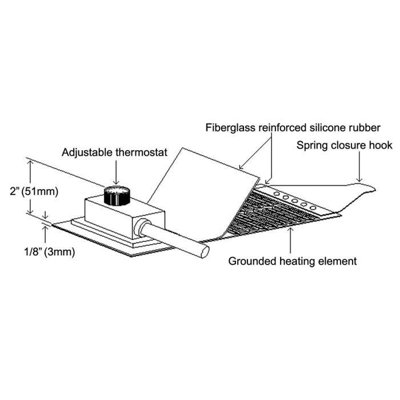

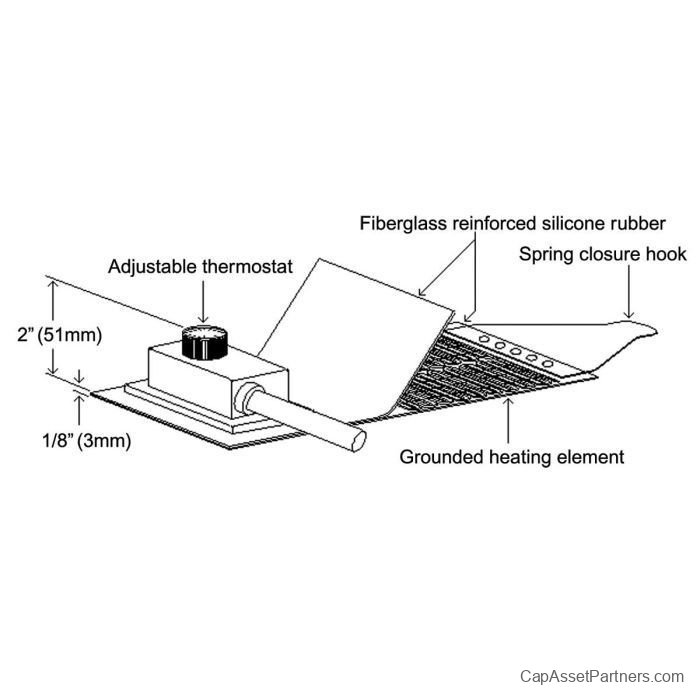

- Adjustable Thermostat: Capable of reaching temperatures up to 425°F (218°C), providing precise temperature control for various heating needs.
- Moisture and Chemical Resistant: Featuring an IP 54 rating, these heaters are designed to withstand exposure to moisture and chemicals, making them suitable for industrial environments.
- Power Cord: Comes with a 6 ft (1.8 m) long power cord, available with a choice of plug or bare wire leads for versatility.
- Heater Width: At a compact 3.6 in (91 mm), these heaters provide efficient coverage without occupying excessive space.
- Voltage Options: Available in both 120 VAC and 240 VAC configurations to meet specific power requirements.
- Temperature Exposure Range: Resistant to temperatures ranging from -60°F to 450°F (-51°C to 232°C) with a dielectric strength of over 2000 volts.
- Attachment Type: Features an expandable spring closure that accommodates sizes up to 3 in (76 mm), allowing for a secure fit on various drum sizes.
- Silicone Rubber Density: Constructed from high-quality silicone rubber with a density of 46.0 oz/yd² (1560 g/m²), ensuring durability and reliability.
- IP Rating: Classified as IP54, protecting against dust and water splashes from any direction.
Specifications:
| SKU |
Temperature Range |
Type |
Width |
Capacity |
| ECONO5-1 |
Up to 425°F (218°C) |
Metal |
3.6 in (91 mm) |
3.5 - 7 gal (13 - 26 L) |
| ECONO15-1 |
Up to 425°F (218°C) |
Metal |
3.6 in (91 mm) |
15 - 16 gal (57 - 61 L) |
| ECONO30-1 |
Up to 425°F (218°C) |
Metal |
3.6 in (91 mm) |
30 gal (114 L) |
| ECONO55-1 |
Up to 425°F (218°C) |
Metal |
3.6 in (91 mm) |
55 gal (200 - 208 L) |
Additional Information:
| SKU |
Voltage |
Certification |
Plug Type |
Lead Length |
| ECONO5-1 |
120V |
CE (Bare Wire Leads), cRUus (Up to 392°F/200°C), REACH, RoHS |
NEMA 5-15P |
6 ft (1.8 m) |
| ECONO15-1 |
120V |
CE (Bare Wire Leads), cRUus (Up to 392°F/200°C), REACH, RoHS |
NEMA 5-15P |
6 ft (1.8 m) |
| ECONO30-1 |
120V |
CE (Bare Wire Leads), cRUus (Up to 392°F/200°C), REACH, RoHS |
NEMA 5-15P |
6 ft (1.8 m) |
| ECONO55-1 |
120V |
CE (Bare Wire Leads), cRUus (Up to 392°F/200°C), REACH, RoHS |
NEMA 5-15P |
6 ft (1.8 m) |
