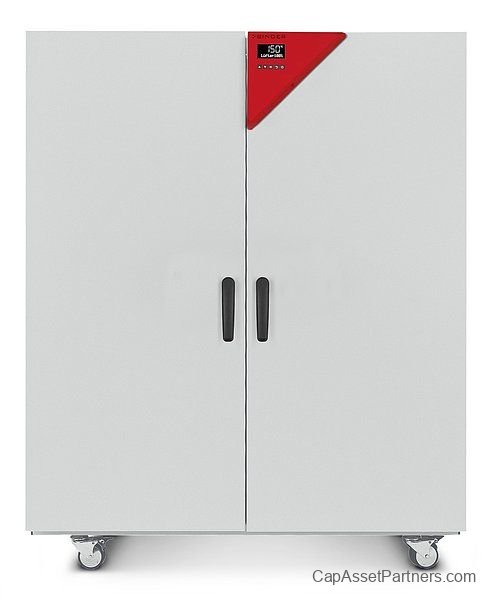

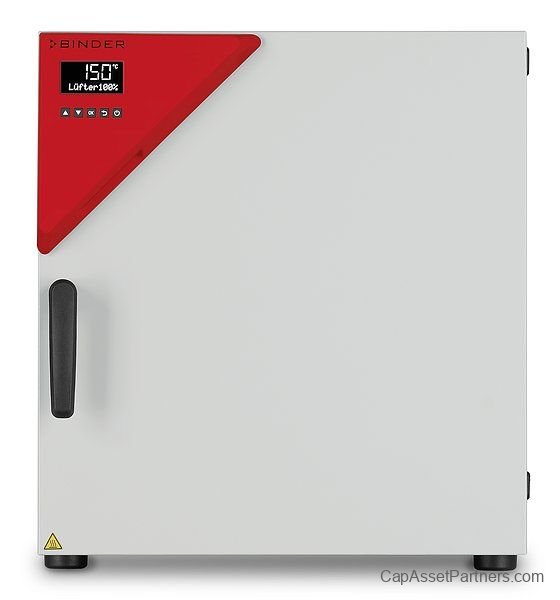

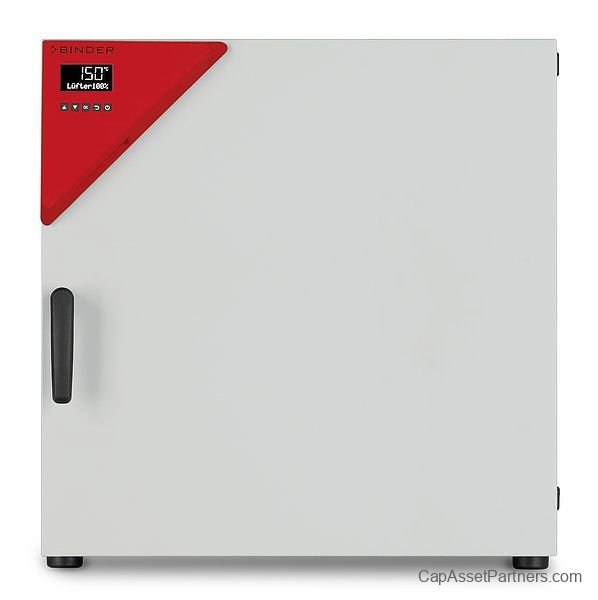

ED Series Avantgarde Drying and Heating Chambers are expertly designed to efficiently handle routine drying and sterilization tasks at temperatures of up to 300°C. Utilizing natural gravity convection, these chambers ensure fast and uniform drying, making them an ideal solution for clinical and laboratory environments.
Key Features:
- Temperature Range: Ambient temperature plus 5°C to 300°C
- High Temperature Accuracy: Achieved through advanced APT.line™ technology
- Convection Mechanism: Gravity convection for optimal thermal efficiency
- User-Friendly Interface: Easy-to-read LCD display for intuitive control
- Exhaust Control: Electromechanical control of the exhaust air flap

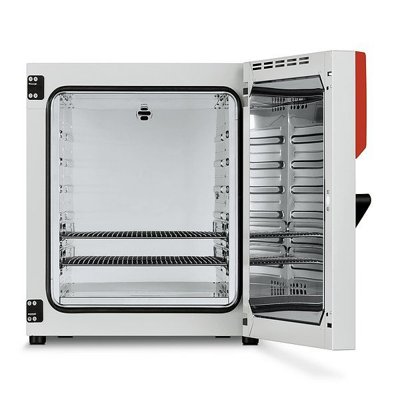

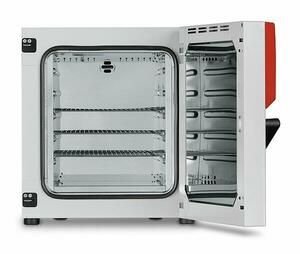

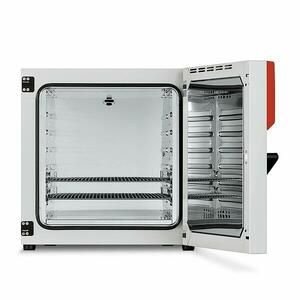

- Storage Options: Comes standard with 2 chrome-plated racks, with stackable units available for a maximum of up to 115 L capacity
- Safety Features: Class 2 independent temperature safety device (DIN 12880) equipped with a visual temperature alarm for peace of mind
- Ergonomics: Features an ergonomic handle design for ease of use
- Data Recording: Built-in USB port for convenient data recording and retrieval
Benefits of ED Series Chambers:
- Energy Efficiency: Market-leading energy efficiency ensures economical operation
- Temperature Consistency: Provides excellent temporal and spatial temperature accuracy for reliable results
- Broad Temperature Capability: Versatility with a maximum temperature up to +300°C enhances functionality
Specifications:
| SKU |
Temperature Range |
Temperature Fluctuation |
Temperature Variation |
| 9010-0333 |
300°C +5°C |
± 0.4 at 150°C |
± 2.3 at 150°C |
| 9010-0334 |
300°C +5°C |
± 0.4 at 150°C |
± 2.3 at 150°C |
| 9010-0335 |
300°C +5°C |
± 0.4 at 150°C |
± 1.5 at 150°C |
| 9010-0336 |
300°C +5°C |
± 0.4 at 150°C |
± 1.5 at 150°C |
| 9010-0340 |
300°C +5°C |
± 0.8 at 150°C |
± 1.8 at 150°C |
| 9010-0339 |
300°C +5°C |
± 0.8 at 150°C |
± 1.8 at 150°C |
| 9010-0341 |
300°C +5°C |
± 0.8 at 150°C |
± 3.2 at 150°C |

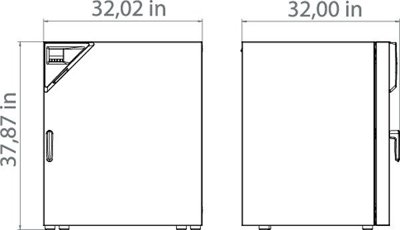

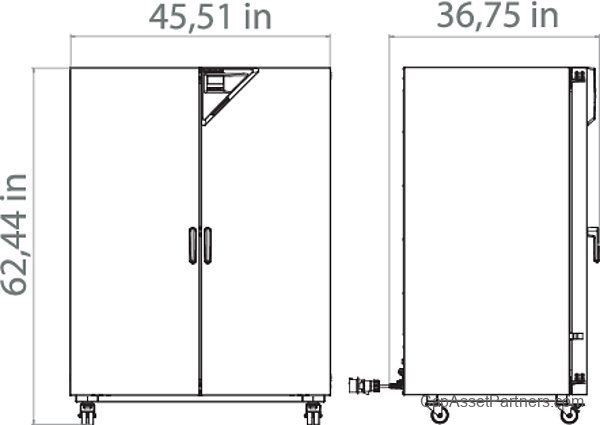

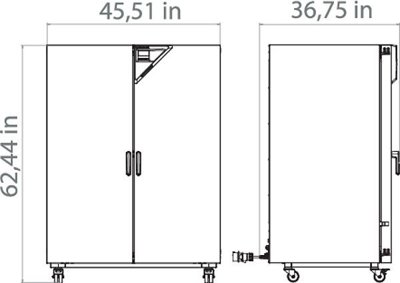

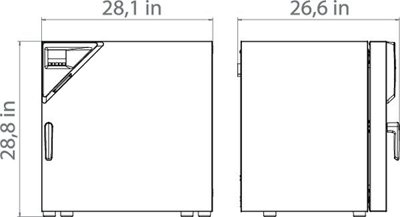

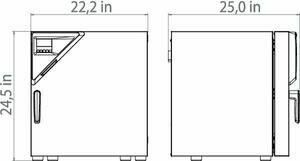

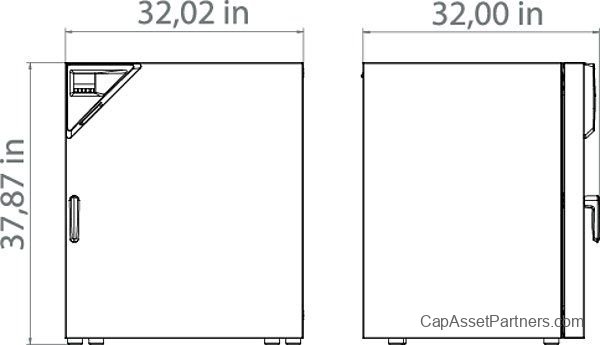

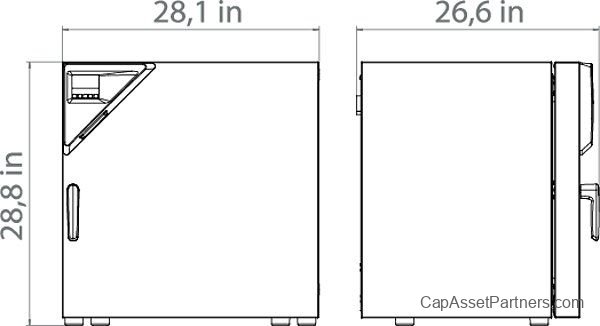

Additional Information:
| SKU |
# of Shelves |
Depth |
Height |
Width |
Power Requirement |
| 9010-0333 |
2 std./4 max. |
22.26 in |
24.63 in |
22.06 in |
230 V, 50/60 Hz |
| 9010-0334 |
2 std./4 max. |
22.26 in |
24.63 in |
22.06 in |
120 V, 60 Hz |
| 9010-0335 |
2 std./5 max. |
23.84 in |
27.78 in |
27.97 in |
230 V, 50/60 Hz |
| 9010-0336 |
2 std./5 max. |
23.84 in |
27.78 in |
27.97 in |
120 V, 60 Hz |
| 9010-0340 |
2 std./8 max. |
29.94 in |
37.04 in |
31.91 in |
240 V, 60 Hz |
| 9010-0339 |
2 std./8 max. |
29.94 in |
37.04 in |
31.91 in |
230 V, 50/60 Hz |
| 9010-0341 |
2 std./16 max. |
34.28 in |
62.6 in |
45.9 in |
400 V, 50/60 Hz |
