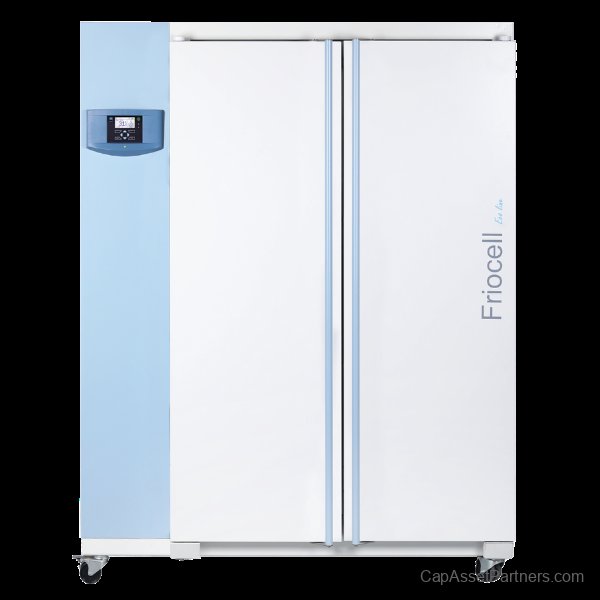

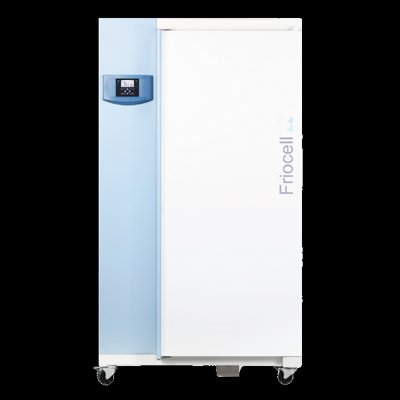

Friocell® ECO Cooled Incubators
The Friocell® Cooled Incubators are engineered to meet the rigorous demands of scientific and industrial applications requiring precise temperature control. With a wide temperature range from -20°C to 100°C, these incubators are suitable for a variety of uses such as biochemical oxygen demand (BOD) testing, specimen preservation, microbiological research, insect and fish breeding, as well as seed germination.
Advanced Temperature Control Technology
Featuring a patented forced air convection system, the Friocell® ensures simultaneous vertical and horizontal airflow. This innovative design allows for rapid heating and cooling times, guaranteeing consistent temperature distribution throughout the chamber. Continuous monitoring is managed by sophisticated microprocessor controls that adjust parameters in real-time, maintaining your specified conditions without overshooting the set point.
Key Features
- ECO standard microprocessor controller for enhanced performance
- Fuzzy logic with a 3-inch digital LCD display for easy monitoring
- Real-time programming with up to 9 programs and 2 segments for varied loads and parameters, accommodating up to 99 cycles
- Integrated digital safety thermostat
- Delayed heating start and stop functionality for flexible use
- Acoustic and digital alarms for enhanced safety
- Keypad lock feature for controlled access
- USB and RS 232 ports for data transfer and integration
- Pharmaceutical-grade AISI 304 stainless steel inner chamber for durability and hygiene
- Removable inner chamber for easy cleaning and maintenance
- Molded brackets in inner chamber walls optimize shelf placement
- Double-wall chamber with 5 layers of insulation for uniform internal conditions
- Rounded interior corners to facilitate cleaning
- Patented 4-point closing system that seals the door for optimal efficiency

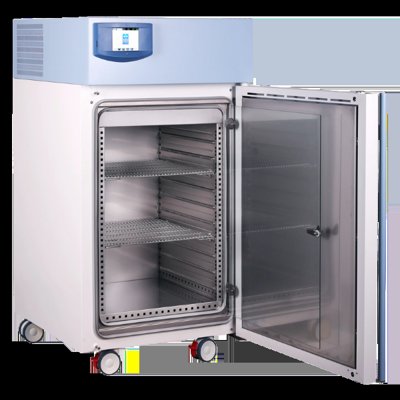

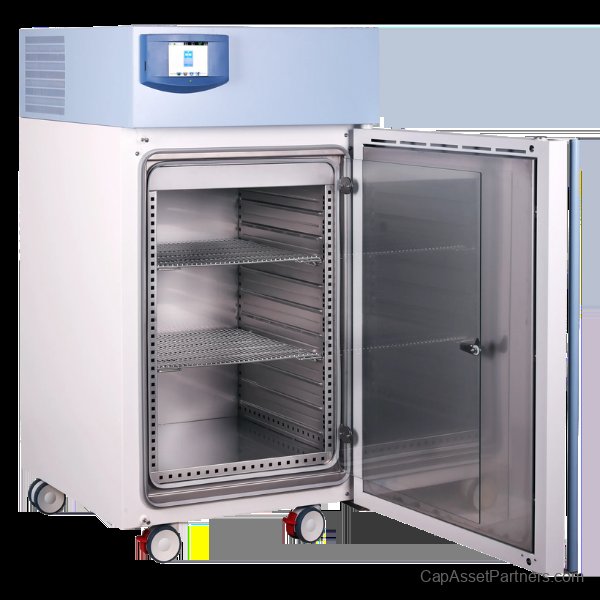

- Inner glass door provides visibility of samples without disrupting the internal environment
- 50 mm stainless steel access port for external monitoring capabilities
Certifications
- CE, UL, and CSA listed, ensuring compliance with international safety standards
Specifications
| SKU |
Model # |
Hinge |
Door Type |
Heat-Up Time |
Interior Material |
Door Recovery Time |
| MC 000234 |

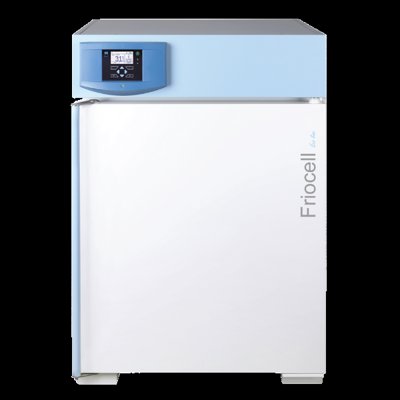

Friocell ECO 55 |
Right |
Solid Swing Door |
< 11 min to 37°C |
AISI 304 Stainless Steel |
< 5 min to 37°C / 6 min to 50°C |
| MC 000235 |
Friocell ECO 111 |
Right |
Solid Swing Door |
< 11 min to 37°C |
AISI 304 Stainless Steel |
< 5 min to 37°C / 6 min to 50°C |
| MC 000236 |
Friocell ECO 222 |
Right |
Solid Swing Door |
< 11 min to 37°C |
AISI 304 Stainless Steel |
< 2 min to 37°C / 3 min to 50°C |
| MC 000237 |
Friocell ECO 404 |
Right |
Solid Swing Door |
< 13 min to 37°C |
AISI 304 Stainless Steel |
< 2 min to 37°C / 4 min to 50°C |
| MC 000238 |
Friocell ECO 707 |
Left and Right |
Dual Solid Swing Door |
< 13 min to 37°C |
AISI 304 Stainless Steel |
< 6 min to 37°C / 6 min to 50°C |
| MC 000239 |

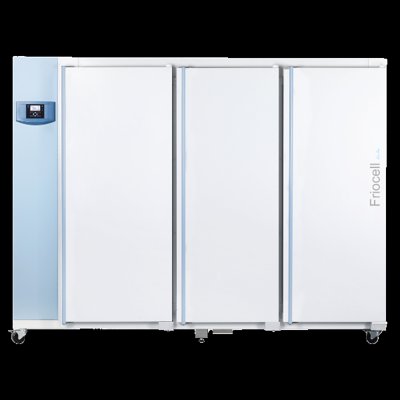

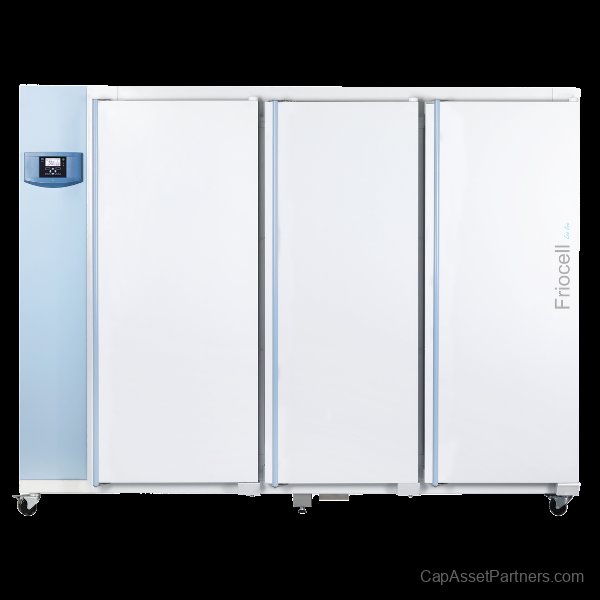

Friocell ECO 1212 |
Left and Right |
Triple Solid Swing Door |
< 30 min to 37°C |
AISI 304 Stainless Steel |
< 10 min to 37°C / 10 min to 50°C |
