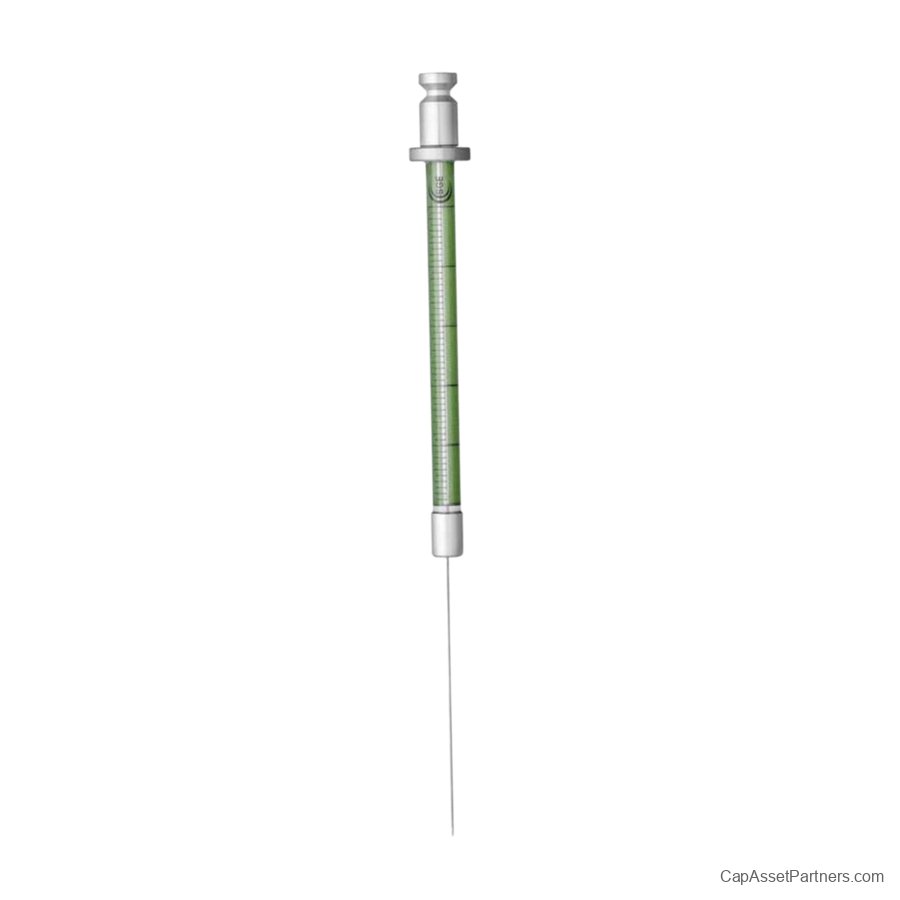

GC Autosampler CTC Analytics Syringes

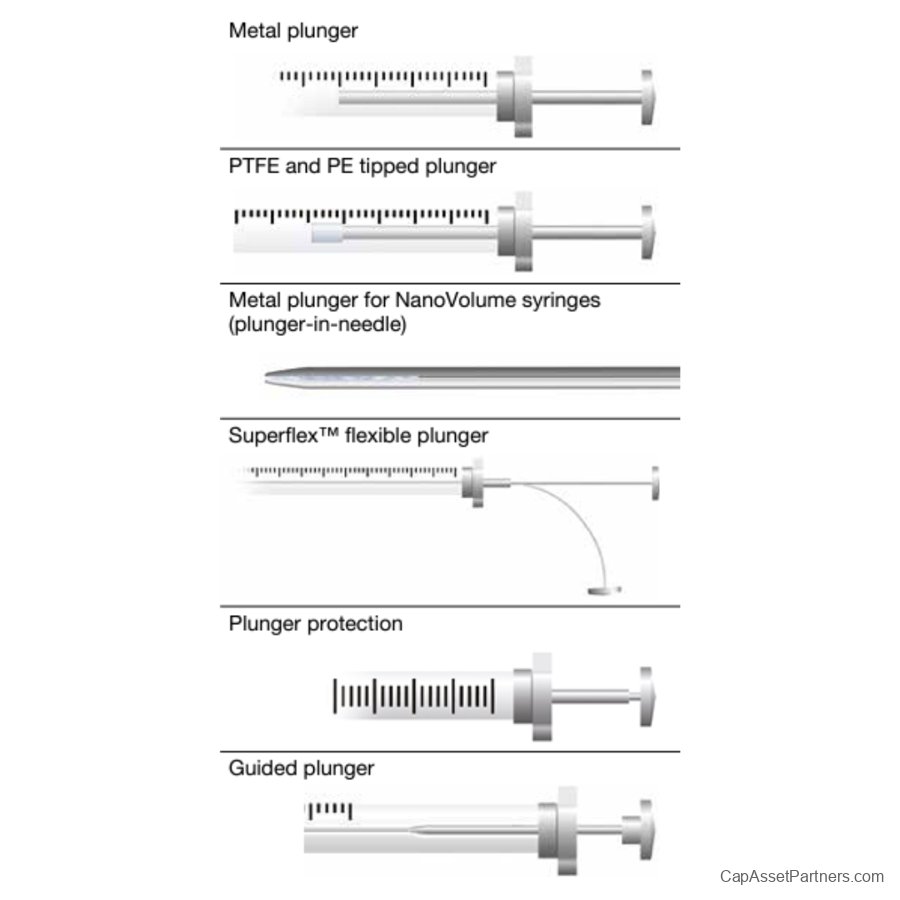

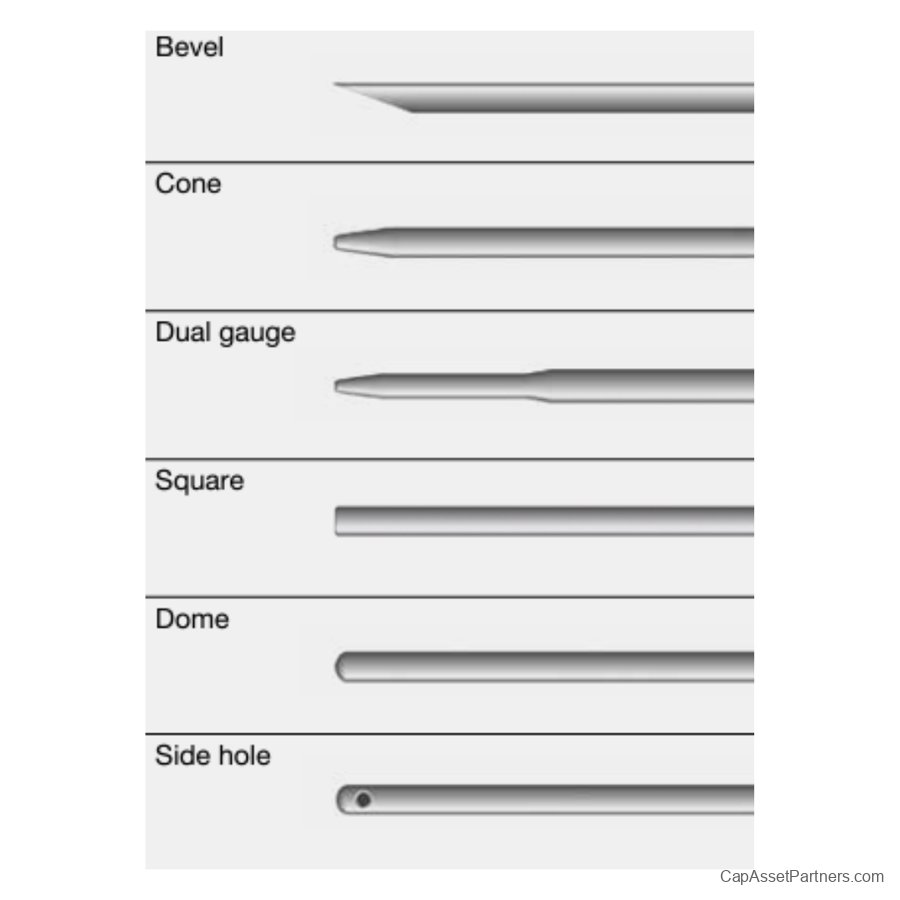

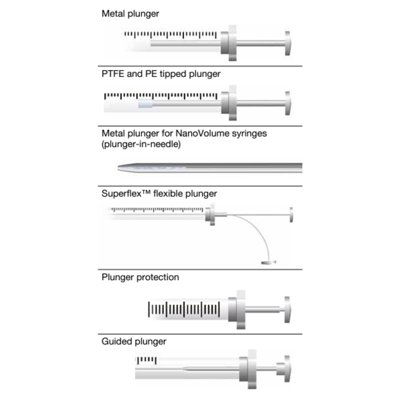

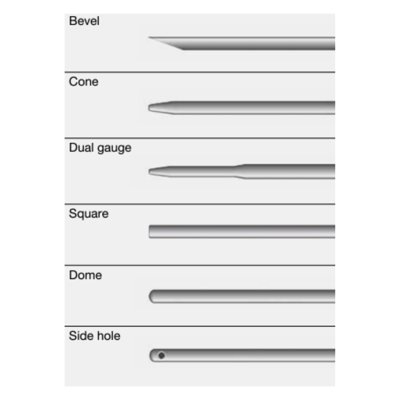

The GC Autosampler CTC Analytics Syringes are engineered for optimal performance with CTC Analytics autosamplers, ensuring precision and reliability in every injection. Featuring an innovative plunger design, these syringes significantly minimize the risk of bending and seizing during operation, enhancing workflow efficiency. The needles are specifically designed with a cone-shaped bevel tip and a side hole point style, making them ideal for the rigorous multi-injection requirements typical of autosampling systems.
Compatibility
These syringes are compatible with several leading autosampler systems, including:
- CTC Analytics PAL RTC (PAL3)
- Thermo Scientific TriPlus RSH
Key Features
- Customizable needle sizes and volumes to match your specific application needs.
- International Standards Traceability for consistent quality assurance.
Technical Specifications
| Accuracy and Reproducibility |
Scale Length |
Borosilicate Glass Barrel OD |
±1% (dispensed volume)
(±2% for 0.5 μL and 1 μL syringes) |
0.5 μL to 1 μL = 27.05 mm
5 μL to 10 μL = 54.1 mm
25 μL to 5 mL = 60 mm |
0.5 μL to 100 μL = 6.5 mm
250 μL to 500 μL = 8 mm
1 mL = 7.6 mm
2.5 mL = 9.7 mm
5 mL = 14 mm |
Specifications
| SKU |
For Use With |
Inner Diameter |
Type |
Length |
Volume |
Tip Shape |
| 000680 |
CTC, Shimadzu, Thermo Scientific, Agilent |
0.22 mm |

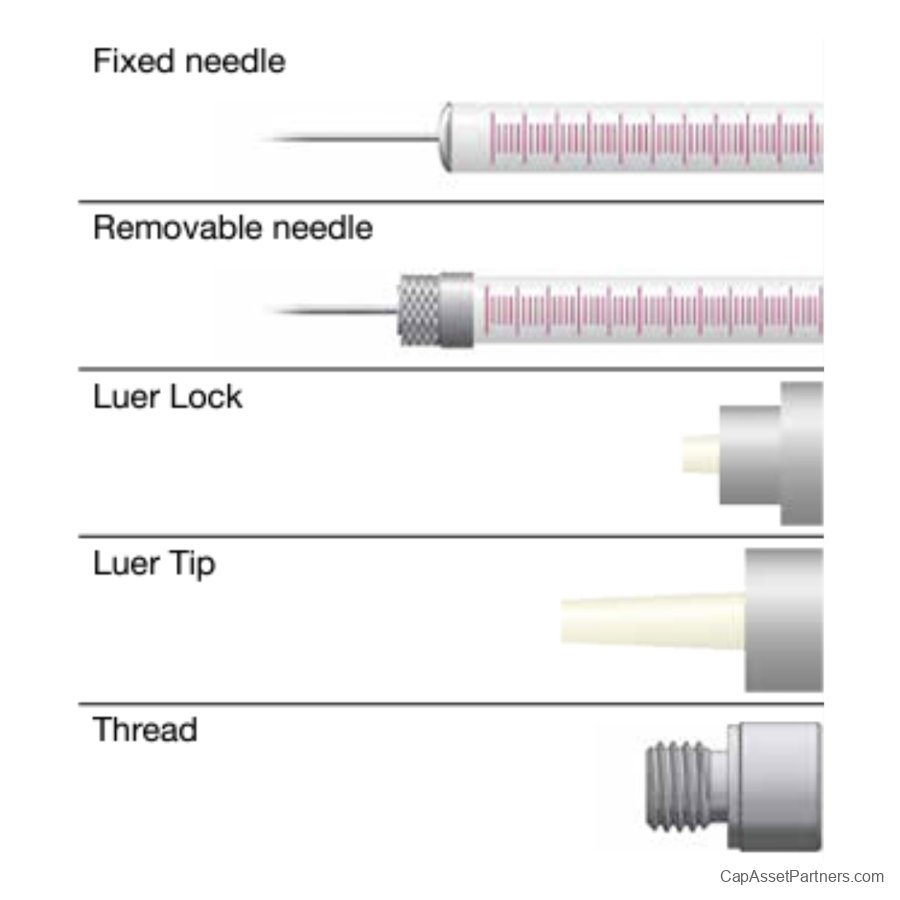

Removable Needle |
57 mm |
1.0 μL |
Cone |
| 001861 |
CTC, Shimadzu, Thermo Scientific, Agilent |
0.11 mm |
Fixed Needle |
57 mm |

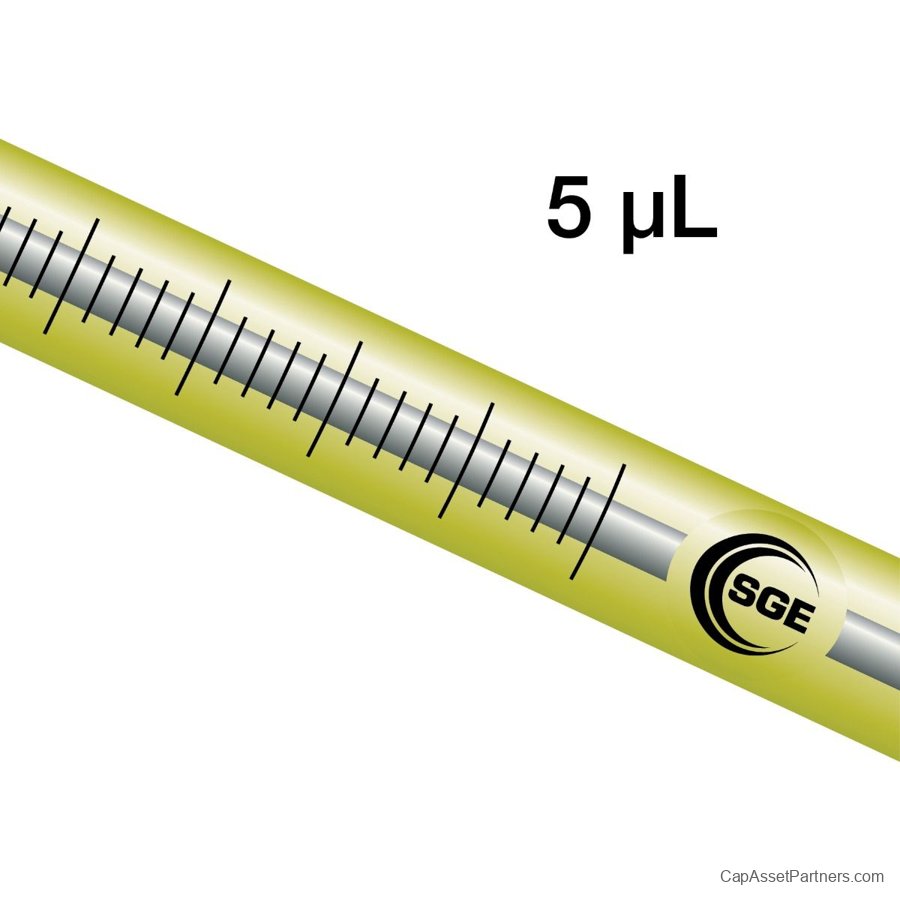

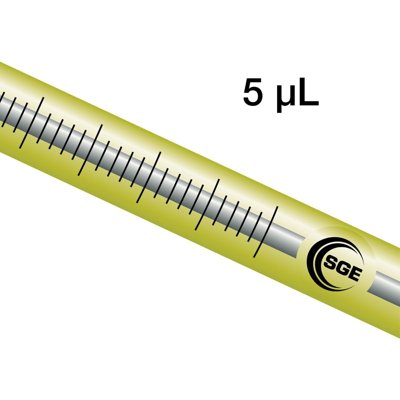

5 μL |
Cone |
Note: These products may require additional confirmation for shipping. A business/commercial shipping address may be necessary upon checkout. Please contact for more details.
Image is representative and may not reflect the specific item.
