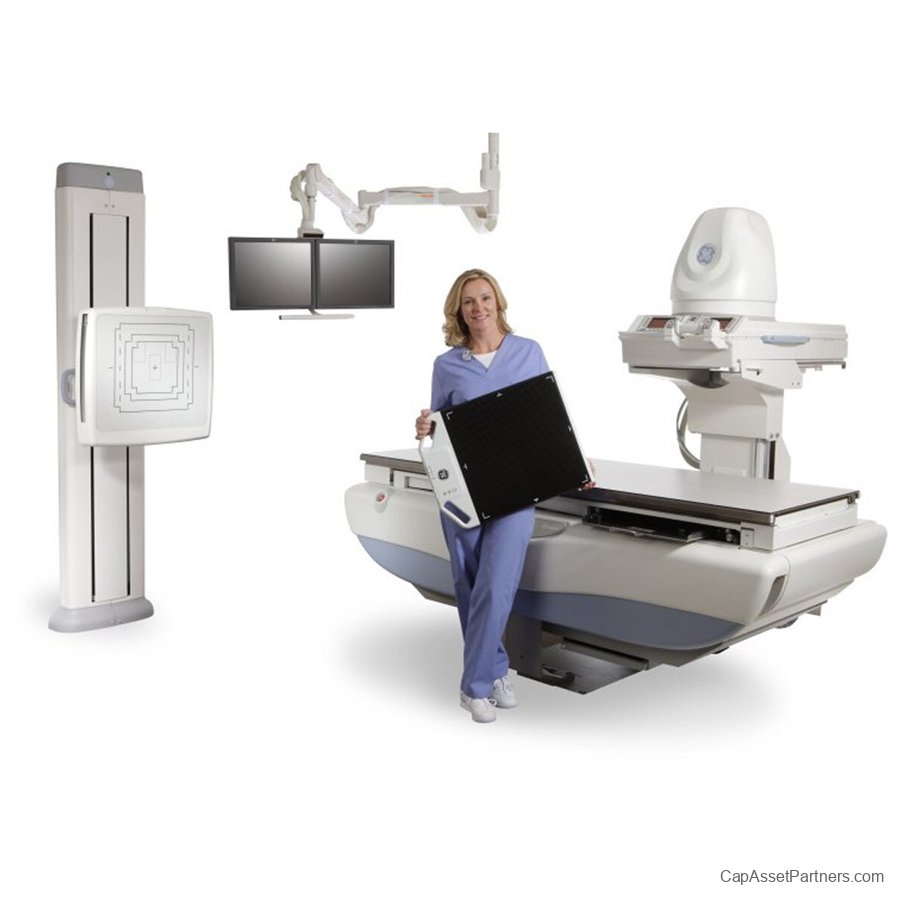

GE Precision 500D Radiology & Fluoroscopy Room

GE Precision 500D Radiology & Fluoroscopy Room
Introducing the GE Precision 500D, a cutting-edge digital radiography and fluoroscopy system specifically designed to elevate your imaging capabilities. This PC-based platform effectively replaces traditional fluoroscopic techniques, providing healthcare practitioners with exceptional image quality while significantly reducing radiation exposure for patients. Ideal for boosting patient throughput and enhancing clinical productivity, the GE Precision 500D represents the future of radiology.

Key Features

• High-Resolution Imaging: Experience the ability to view stunning 1024 x 1024 images immediately upon acquisition, ensuring that vital details are captured and displayed with clarity.

• Advanced Imaging Options: Utilize features such as computerized windowing, subtraction, inversion, edge enhancement, level adjustment, and magnification to uncover details that may be challenging to visualize with conventional systems.

• User-Friendly Interface: Designed for ease of use, the interface allows for quick navigation, streamlining the workflow in fast-paced clinical environments.

• Versatile Imaging and Archiving: Print images to traditional film output devices and archive them using a variety of other media, giving you flexibility in managing patient records.

• Exceptional Dose Management: Benefit from advanced dose-management features to ensure patient safety without compromising image quality.

• Automatic Controls: Enjoy automatic last-image-hold and closed-loop automatic brightness control that adjusts settings for optimal performance, while special filtration minimizes the absorbed dose during fluoroscopy.

• Digital Spatial Filters: Enhance radiographic image quality with sophisticated digital spatial filters and utilize virtual collimation to assess collimator position without requiring additional exposures.

Optimize your radiology and fluoroscopy procedures with the GE Precision 500D, where state-of-the-art technology meets practical functionality for efficient and safer patient care.

GE Precision 500D Radiology & Fluoroscopy Room Specifications

Table

• Longitudinal Travel: 60” (152.4 cm)

• Longitudinal Travel (either side of center): 30” ± 0.75” (76.2 cm ± 1.9 cm)

• Lateral Travel (either side of center): 3.88” ± 0.12” (9.85 cm ± 0.3 cm)

• Power: 240 VAC, 20 Amps, Single Phase, 50/60 Hz

• Max Patient Load - No Movement or Tilt: 500 lb (226 kg)

• Max Patient Load - With Movement and/or Tilt: 300 lb (136 kg)

• Max Patient Load - Under Table Patient Step: 450 lb (204 kg)

X-Ray Tube

• Model: MX 100 FL

• Target Angle: 12.5°

• Focal Spot Sizes: 0.6 mm / 1.25 mm

• Power: 32/100 kW

• Shim: 2.1°

OTS Radiographic Suspension

• Longitudinal Focal Spot Travel: 108.54” (275.7 cm)

• Lateral Focal Spot Travel: 47.24” (120 cm)

• Vertical Focal Spot Travel: 59” (150 cm)

• Horizontal Tube Rotation: ± 180 degrees; detents at each 90 degree position

• Vertical Tube Rotation: +110/-20 degrees

• Focal Spot to Ceiling Distance (Horizontal): 28.86” - 87.87” (73.3 - 223.2 cm)

• Focal Spot to Ceiling Distance (Vertical): 28.07” - 87.05” (71.3 - 221.1 cm)

• Minimum Overall Room Dimension, Front to Back (without Modifying Basic Structure): 10.5 ft (3.2 m)

• OTS Suspension Weight: 500 lbs (431 kg)

Collimator

• Dimensions (L x W x H): 13.74” x 9.33” x 7.12” (34.9 x 23.7 x 18.1 cm)

• Weight: 21.6 lbs ± 1.1 (9.8 kg ± 0.5)

• Aperture Angle: 28° / 28°

• Angle of Rotation around Central Beam Axis: ± 45°
