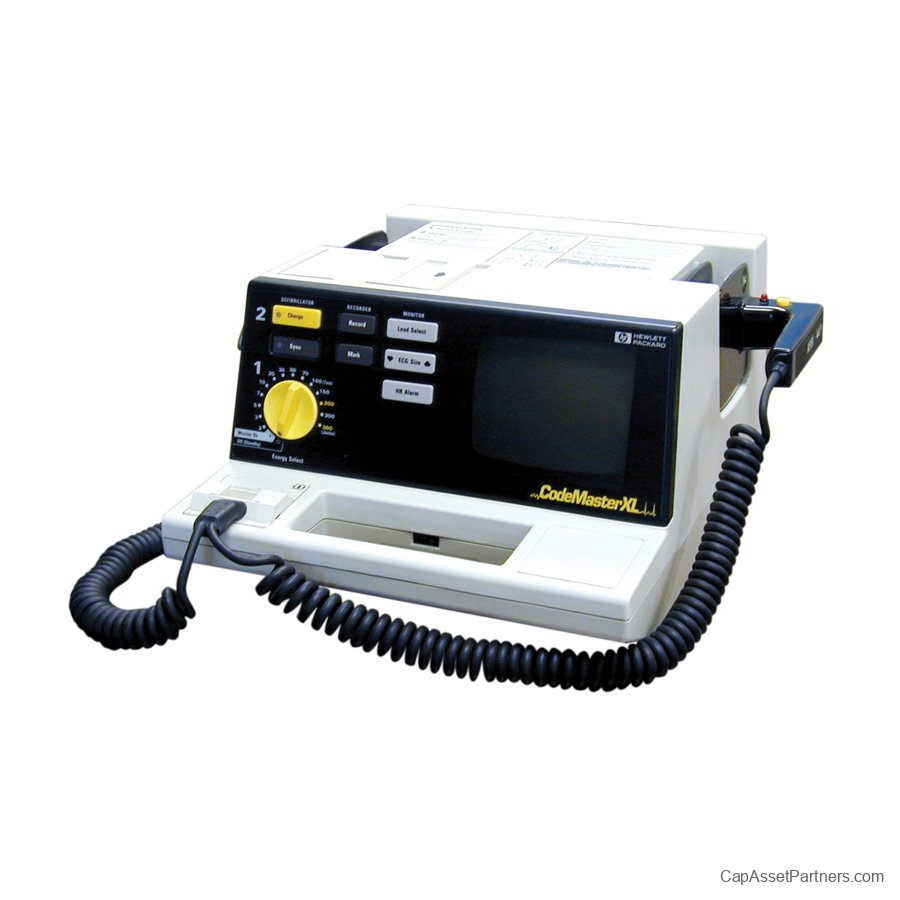

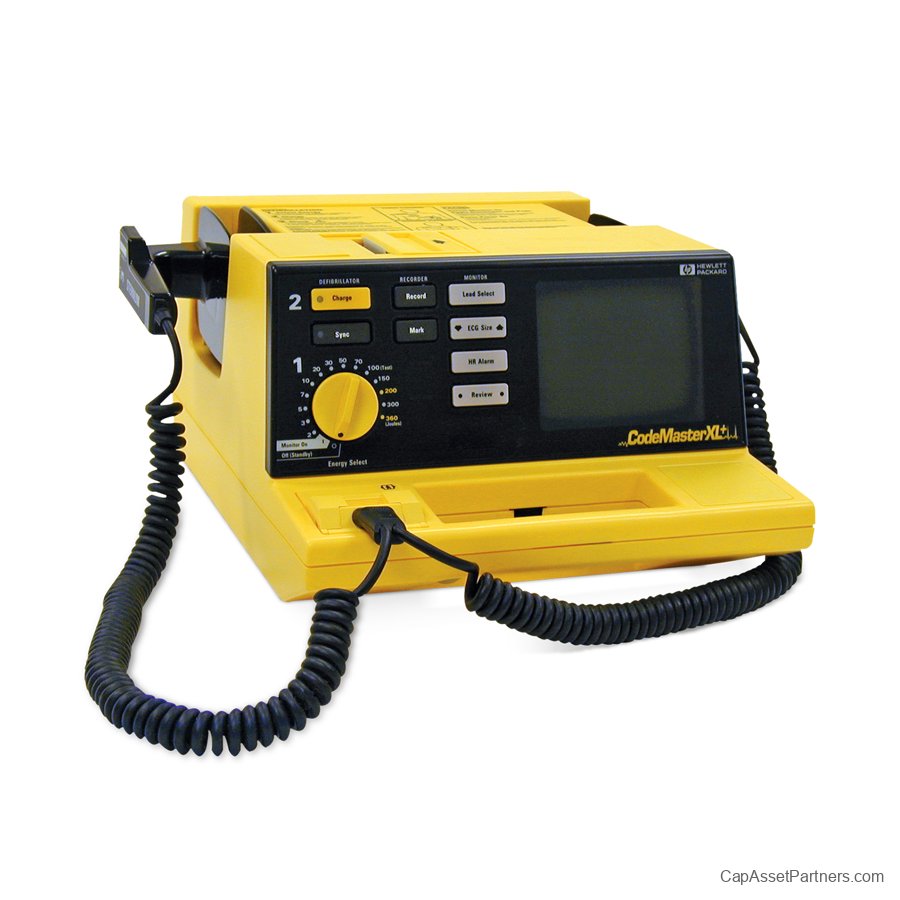

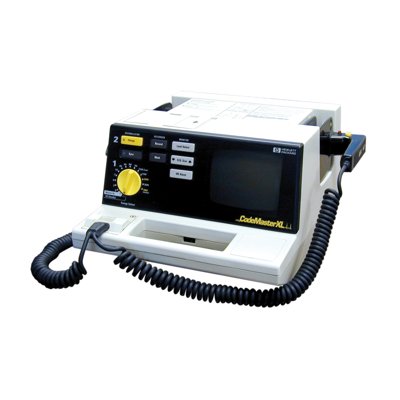

Hewlett Packard Codemaster XL Defibrillator

Hewlett Packard Codemaster XL Defibrillator

The Hewlett Packard Codemaster XL is a state-of-the-art defibrillator designed for both professional and emergency medical settings. This advanced device features a built-in recorder and ECG display, ensuring that vital information is always at your fingertips. With AC power complemented by a reliable battery backup, you can trust the Codemaster XL to perform when it matters most.

Key Features:

• Built-in Recorder: Easily document critical heart data and access it instantly.

• ECG Monitoring: Continuous heart rhythm monitoring for accurate assessment and timely intervention.

• AC Power with Battery Backup: Ensures reliability during emergencies, providing uninterrupted performance.

Optional Features:

Enhance your defibrillator's capabilities with these optional features:

• SPO2 - Pulse Oximetry: Monitor oxygen saturation levels for comprehensive patient assessment.

• Pacing: Offers pacing capabilities for patients in need of cardiac support.

• Advisory Mode: Provides guidance during resuscitation efforts, improving overall patient outcomes.

• External Electrode Adapters: Flexible connectivity options for various patient scenarios.

The Hewlett Packard Codemaster XL Defibrillator combines innovation and reliability, making it an essential tool for healthcare professionals dedicated to saving lives.

Hewlett Packard Codemaster XL Defibrillator Specifications

Physical Weight & Dimensions

• Height: 7.9 inches (20 cm)

• Width: 11.8 inches (30 cm)

• Depth: 15.6 inches (39.7 cm)

• Weight: 24 lbs (10.9 kg)

Battery

• Type: Rechargeable, sealed lead-acid battery, 4 Ah, 12 V nominal

• Charge Time:

• 2 hours to 90% full capacity

• 18 hours to 100% full capacity (Repeated charging to less than 100% may reduce battery life)

• Capacity:

• 2.5 hours monitoring

• 50 full-energy discharges

• 1 hour monitoring and recording

• AC Input: 100 to 230 VAC ± 15%, 50/60 Hz

• Battery Indicators:

• Illuminated LED indicates charging

• Low Battery message appears on the monitor

Defibrillator

• Waveform: Damped sinusoidal

• Output Energy (delivered): 2, 3, 5, 7, 10, 20, 30, 50, 70, 100, 150, 200, 300, and 360 joules

• Charge Control: Push-button on apex paddle and on front panel

• Charge Time: Less than 5 seconds to 360 joules with functional battery installed

• Charge Done Indicator: Display shows available energy, charge-done light on apex paddle, charge done tone

• Synchronizer: SYNC message on monitor, audible beep with each detected R-wave

• Paddles:

• Standard paddles are anterior/anterior

• Adult electrodes (83 cm²) slide off to expose pediatric electrodes (21 cm²)

• Paddle cord length: 10 feet (3 m)

Monitor

• Input: ECG activity viewed through paddles or patient cable

• Lead Fault: LEADS OFF message and dashed baseline for disconnected leads

• Common Mode Rejection: Greater than 100 dB (measured per AAMI standards)

• Heart Rate Display: Digital output on monitor from 20 to 280 bpm

Recorder

• Annotations: Time, date, heart rate, event markers, ECG mode, selected energy

• Recorder Mode: Automatically documents events and ECG during defibrillation episodes; configurable for real time or with 6-second delay

• Frequency Response:

• Monitor bandwidth: 0.5 to 40 Hz

• Diagnostic bandwidth: 0.05 to 150 Hz (selectable)
