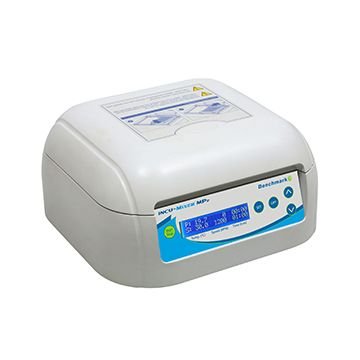

Incu-Mixer™ MP Heated Plate Vortexers
The Incu-Mixer MP series is revolutionizing the way laboratories vortex and incubate microplates. With its innovative design, this equipment guarantees optimal performance through simultaneous heating from both the bottom surface and the heated lid, ensuring uniform temperature distribution throughout the samples. The heated lid plays a crucial role in minimizing evaporation and preventing condensation, allowing for more accurate results.
Its compact and efficient 2mm orbit guarantees thorough mixing in microplates without any splashing, making it a reliable choice for delicate lab work. Essential parameters such as speed, time, and temperature are readily displayed in real-time on a large LCD screen. An internal validation system continuously monitors these parameters for accuracy, ensuring that you maintain optimal conditions during your experiments.

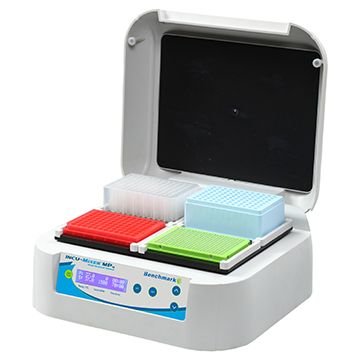

This versatile series is designed with application flexibility in mind, available in both two-plate and four-plate formats, allowing it to accommodate all standard plates up to 40mm high. The independent controls for time, temperature, and speed allow the Incu-Mixer to serve as three machines in one: a multi-plate incubator, a vortexer, or a combination of the two. Ideal for various molecular biology applications, including immunochemical reactions, enzyme and protein analysis, and microarray analysis, this heated plate vortexer is a must-have for sophisticated laboratory work.
Key Features:
- Optimized for incubated mixing in microplates
- Heated lid that prevents condensation
- Accepts plates up to 46mm high (four-plate model only)
- Independent control of time, temperature, and speed
- Available in two-plate and four-plate formats
Specifications:
| Parameter |
Incu-Mixer MP4
(four-plate format) |
Incu-Mixer MP2
(two-plate format) |
| Shaking Orbit |
2 mm |
| Temperature Range |
ambient +5°C to 70°C |
| Temperature Increment |
0.1 °C |
| Temperature Accuracy |
±0.2 °C |
| Temperature Uniformity |
±0.5 °C |
| Mixing Speed |
100 to 1500 rpm |
100 to 1200 rpm |
| Speed Increment |
10 rpm |
| Timer |
1 minute to 99 hours 99 minutes / continuous |
| Product Weight |
19.7 lbs. (9 kg) |
15.4 lbs. (7 kg) |
Product Dimensions
(W x D x H in. / mm) |
12.6 x 13.8 x 7.3 in.
(320 x 350 x 185 mm) |
11 x 10.6 x 5.5 in.
(280 x 270 x 140 mm) |
| Shipping Weight |
21 lbs. (9.6 kg) |
18 lbs. (8.2 kg) |
Shipping Dimensions
(W x D x H in. / mm) |
19 x 19 x 12 in.
(483 x 483 x 305 mm) |
| Electrical |
115 or 230 V, 50-60 Hz, 600 W |
universal voltage, 100 to 240 V, 50-60 Hz, 500 W |
| CE-marked |
230 V only |
yes |
| Warranty |
2 years |
