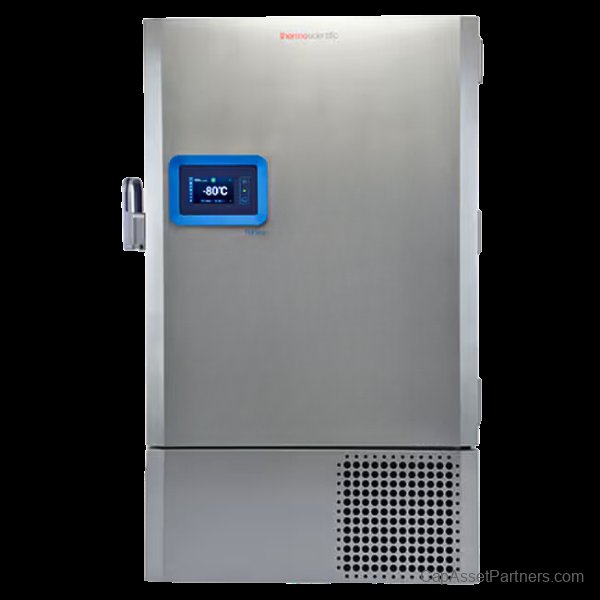

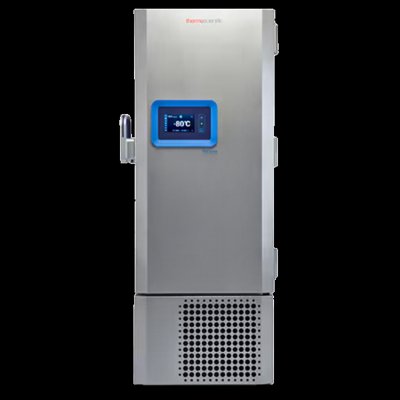

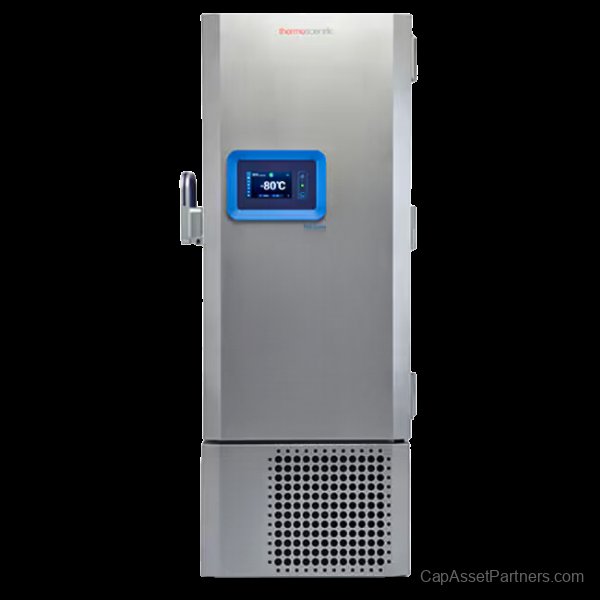

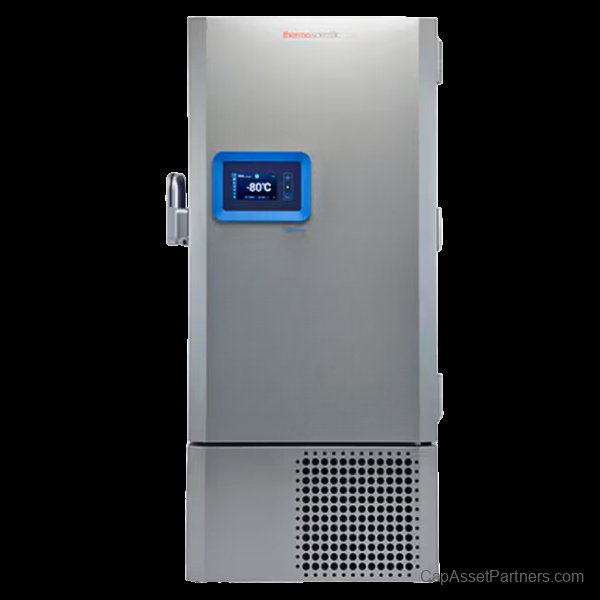

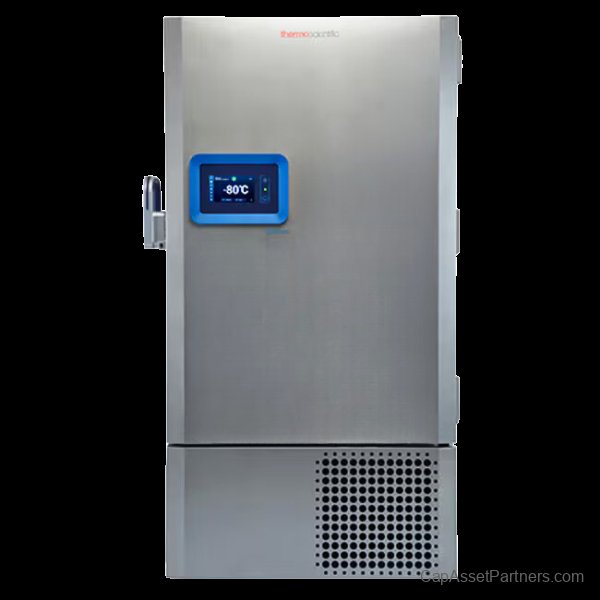

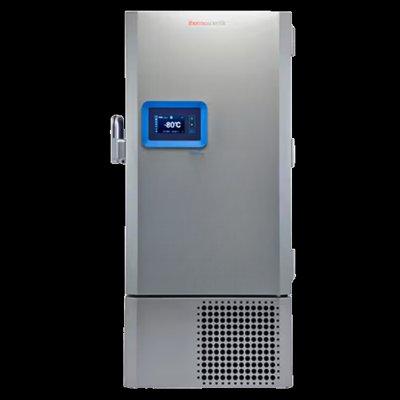

TSX Series Universal Ultra-Low Freezers With CO2 Back-up

Pioneering in preservation, the TSX Series Universal Ultra-Low Freezers are designed to maintain optimal conditions for sensitive samples with exceptional reliability. These ultra-low temperature freezers ensure minimal temperature fluctuations across the cabinetry and operate at a remarkably low noise level, making them ideal for direct placement in laboratories.

Advanced Features

• Universal V-Drive Technology: Smart adaptive controller adjusts to usage patterns, optimizing energy efficiency.
• Touchscreen LCD: User-friendly interface allows for easy navigation, even with gloves.
• Fast Recovery Time: Quickly returns to set temperatures, reducing risk of sample degradation.
• Wireless Alarms: Audible and visual alerts for high and low temperatures and other critical system parameters.
• Two Rear Probe Access Ports: Enhance ease of use for monitoring and management.
• Stainless Steel Shelves: Durable and easy to clean for increased longevity and hygiene.
• Security Features: Includes a standard key lock, padlock loop, and secure setpoint adjustments.
• Multiple Interior Configurations: Designed with a solid exterior swing door and dual interior doors for optimal access.

Package Contents

• CO2 Back-up System
• Two Sliding Drawer Racks

Certifications

• ENERGY STAR Certified
• ACT Labeled
• Listed under UL 61010, CE, and ISO 13485
• Compliant with ISO 5.5 Cleanroom Standards

Storage Capacity

Designed to accommodate various quantities of CryoBoxes™:

• 400 CryoBoxes™ - Model TSX40086FARAKCO*
• 500 CryoBoxes™ - Model TSX50086FARAKCO*
• 600 CryoBoxes™ - Model TSX60086FARAKCO*
• 700 CryoBoxes™ - Model TSX70086FARAKCO*

Specifications Overview

SKU	Shelf Type	# of Shelves	Door Type	Operating Temperature Range	Certification
TSX40086FARAKCO	1 Fixed, 3 Adjustable	4 Shelves	Solid Swing Door, 4 Inner Doors	-40°C to -86°C	ENERGY STAR, ACT Labeled
TSX50086FARAKCO	1 Fixed, 3 Adjustable	4 Shelves	Solid Swing Door, 4 Inner Doors	-40°C to -86°C	ENERGY STAR, ACT Labeled
TSX60086FARAKCO	1 Fixed, 3 Adjustable	4 Shelves	Solid Swing Door, 4 Inner Doors	-40°C to -86°C	ENERGY STAR, ACT Labeled
TSX70086FARAKCO	1 Fixed, 3 Adjustable	4 Shelves	Solid Swing Door, 4 Inner Doors	-40°C to -86°C	ENERGY STAR, ACT Labeled

Additional Information

SKU	Electrical Information	Dimensions	Refrigerant	Plug Type
TSX40086FARAKCO	100-230V, 50/60Hz, 1-PH	37.6 in x 28.3 in x 78.0 in	R290 (1st Stage), R170 + R290 Mix (2nd Stage)	NEMA 5-15
TSX50086FARAKCO	100-230V, 50/60Hz, 1-PH	37.6 in x 34.0 in x 78.0 in	R290 (1st Stage), R170 + R290 Mix (2nd Stage)	NEMA 5-15
TSX60086FARAKCO	100-230V, 50/60Hz, 1-PH	37.6 in x 39.6 in x 78.0 in	R290 (1st Stage), R170 + R290 Mix (2nd Stage)	NEMA 5-15
TSX70086FARAKCO	100-230V, 50/60Hz, 1-PH	37.6 in x 45.2 in x 78.0 in	R290 (1st Stage), R170 + R290 Mix (2nd Stage)	NEMA 5-15

Note: CryoBoxes™ measure 5 in x 5 in x 2 in.
