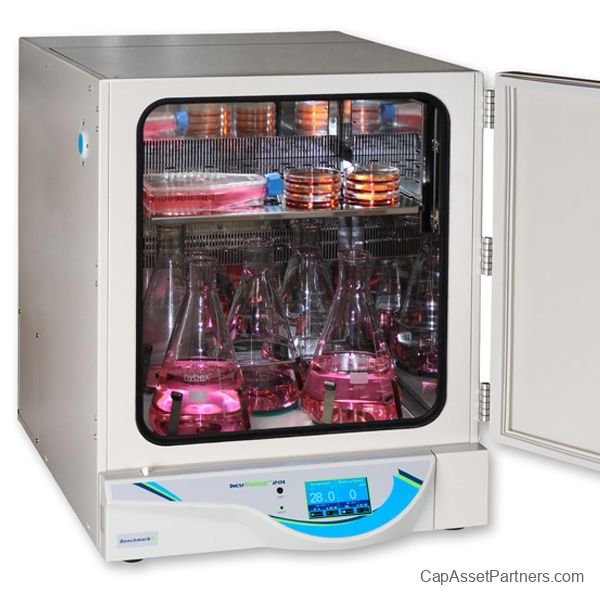

Incu-Shaker™ Stackable Shaking Incubators

The Incu-Shaker™ 20L and 20LR Stackable Shaking Incubators redefine laboratory efficiency, featuring the highest capacity in the Incu-Shaker line. With a spacious shaking platform and a generous +22-inch chamber height, the 20L series supports high-throughput culture growth in flask sizes of up to 5/6 liters. Designed for optimal space-saving, these versatile shakers can be stacked up to two units high, maximizing laboratory floor space.

Constructed from premium-grade stainless steel (304), the incubator's internal chambers are equipped with proprietary heat distribution technology, ensuring precise temperature maintenance throughout. The powerful brushless induction motor is engineered for longevity, promoting trouble-free service even under continuous heavy loads. An advanced, computer-designed motor isolation system minimizes noise and vibration, ensuring stability at all speed levels.

Key Features:

• Convenient stacking capability with included brackets
• Adjustable shelf for custom height clearance
• Stainless steel chamber for enhanced temperature uniformity
• User-friendly full-color touch screen controls
• Access port on the left side for external temperature monitoring or power cable management

Maximum Capacity:

Flask Size	Max Capacity
125 mL Flasks	36
250 mL Flasks	25
500 mL Flasks	16
1000 mL Flasks	9
2000 mL Flasks	5
2.8 L Fernbach	5
3000 mL Flasks	4
5000 mL Flasks	4

Specifications:

SKU	Platform Size	Mixing Orbit	Temperature Accuracy	Temperature Uniformity	Material	Includes
H3020-E	18 in x 18 in	19 mm	± 0.1°C at 37°C	± 0.5°C at 37°C	Stainless Steel, 304	18 in x 18 in Non-Slip Rubber Mat Platform, Stacking Brackets, Adjustable Shelf
H3022	18 in x 18 in	19 mm	± 0.1°C at 37°C	± 0.5°C at 37°C	Stainless Steel, 304	18 in x 18 in Non-Slip Rubber Mat Platform, Stacking Brackets, Adjustable Shelf
H3022-E	18 in x 18 in	19 mm	± 0.1°C at 37°C	± 0.5°C at 37°C	Stainless Steel, 304	18 in x 18 in Non-Slip Rubber Mat Platform, Stacking Brackets, Adjustable Shelf
H3020	18 in x 18 in	19 mm	± 0.1°C at 37°C	± 0.5°C at 37°C	Stainless Steel, 304	18 in x 18 in Non-Slip Rubber Mat Platform, Stacking Brackets, Adjustable Shelf

Additional Information:

SKU	Dimensions	Power Requirement	Increments	Timer Range	Chamber Size
H3020-E	23.6 in x 34.3 in x 28.7 in	230V	0.1°C	1 min to 48 hr. or Continuous	20 in x 19.9 in x 22.7 in
H3022	23.6 in x 34.3 in x 28.7 in	115V	0.1°C	1 min to 48 hr. or Continuous	20 in x 19.9 in x 22.7 in
H3022-E	23.6 in x 34.3 in x 28.7 in	230V	0.1°C	1 min to 48 hr. or Continuous	20 in x 19.9 in x 22.7 in
H3020	23.6 in x 34.3 in x 28.7 in	115V	0.1°C	1 min to 48 hr. or Continuous	20 in x 19.9 in x 22.7 in
