Inert Gas High Temperature Ovens, 95 - 223L
The Inert Gas High Temperature Ovens are engineered for precise temperature testing and heat treatment in a controlled, non-oxidizing environment. By incorporating N2 gas into the chamber, these ovens ensure superior performance for a variety of applications.
Performance & Functions
- Heat resistance capabilities reaching up to 360°C.
- User-friendly interface featuring interactive key input.
- Versatile operation modes including program operation and calibration offset functions.
- Power failure recovery mode selection ensuring reliability during outages.
- Ability to save user configurations for streamlined operation.
- Supports repeatable operation with up to 99 programmable steps across 99 patterns.
- Adjustable N2 gas flow for optimal process control.
Safety Functions
- Comprehensive safety measures to safeguard operations.
- Integrated self-diagnostic functions for real-time performance tracking.
- Digital settings for precise temperature control.
- Independent overheat prevention device and electric leakage protection.
- Automatic shutdown of the fan and heater triggered by door switch activation during operation.
Please Note: All 220V Models are not equipped with a power plug. The 220V models include a Rounded Terminal for M4. For more information, please refer to the downloads tab.
Specifications
| SKU |
Controller |
Power Requirement |
Material |
| DN-411IE |
PID Control by Microprocessor |
220 V/13.5 A/ single phase, No Plug, Round Terminal |
Stainless Steel, Cold Rolled Steel Plate |
| DN-611IE |
PID Control by Microprocessor |
220 V/19 A/ single phase, No Plug, Round Terminal |
Stainless Steel, Cold Rolled Steel Plate |
Additional Info
| SKU |
Includes |
Width |
Depth |
Height |

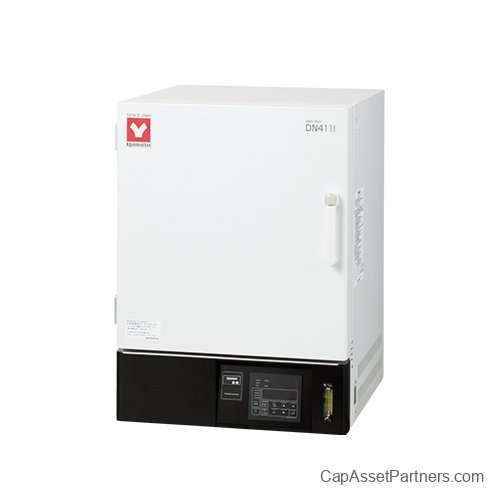

| DN-411IE |
|
640 mm |
695 mm |
915 mm |

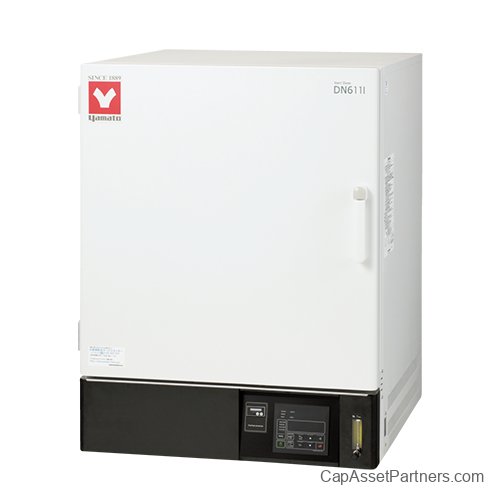

| DN-611IE |
|
790 mm |
845 mm |
1065 mm |
