Infrasonics Infant Star 950 Ventilator

Infrasonics Infant Star 950 Ventilator

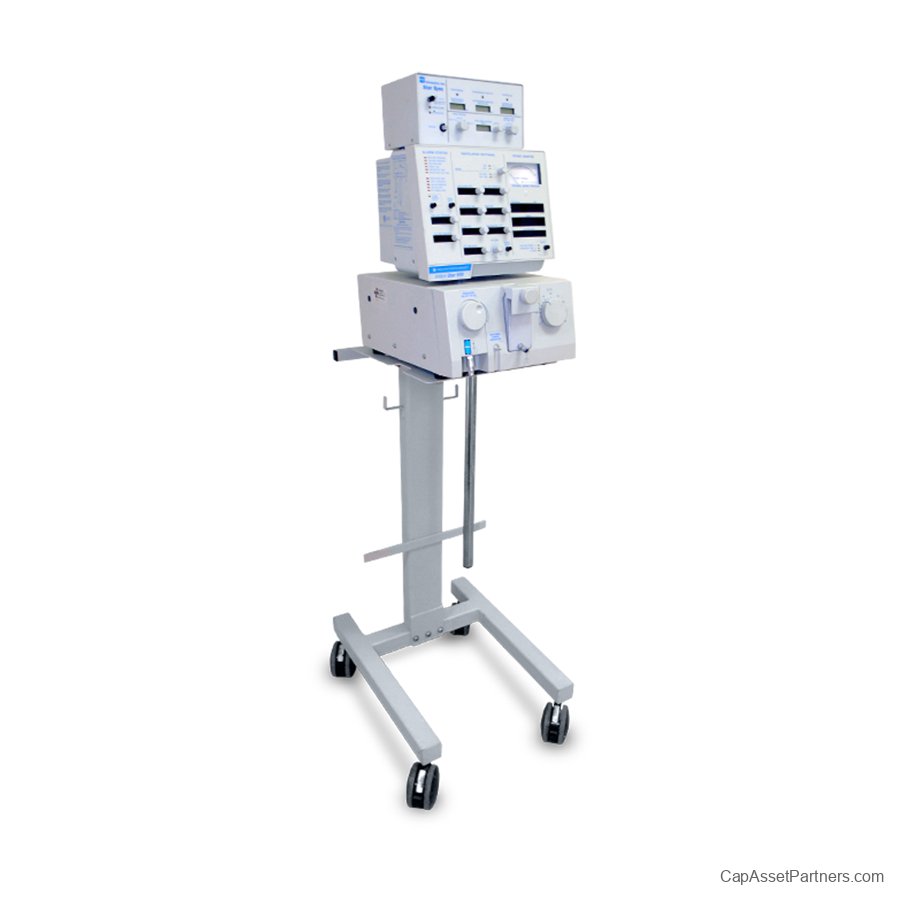

The Infrasonics Infant Star 950 Ventilator is designed specifically for the delicate needs of infants requiring respiratory support. This high-frequency ventilator features a star cart system for enhanced mobility and ease of use.
Key Features:

• Advanced Ventilation Modes: The 950 Ventilator operates as a timed cycled, pressure-limited, continuous flow ventilator, making it a versatile choice for various clinical scenarios.

• Adjustable Background Flow: With the ability to adjust background flow in both CPAP (Continuous Positive Airway Pressure) and IMV (Intermittent Mandatory Ventilation) modes, this ventilator provides the flexibility necessary for effective treatment.

• Consistent Performance: The operational capabilities in CPAP and IMV modes are consistent with those found in the 500 Ventilator, ensuring a reliable and familiar interface for healthcare providers.

Improve your neonatal care with the Infrasonics Infant Star 950 Ventilator, a robust solution for critical respiratory support in infants. Experience the reliable performance and innovative features that help you provide the best care possible.

Infrasonics Infant Star 950 Ventilator Specifications

Physical Weight & Dimensions

• Height: 16.25 inches (41 cm)

• Width: 11.25 inches (29 cm)

• Depth: 19.25 inches (49 cm)

• Weight: 50 lbs (23 kg)

Modes - Invasive

• Pressure-controlled modes: Assist/control, SIMV, CPAP/backup (requires Star Sync), IMV, CMV, CPAP

• Flow-controlled modes: CMV (optional), SIMV

• Combined modes: HFV, HFV + IMV

Waveforms

• Pressure: Rectangular

• Flow: Rectangular

Operating Range of Controls

• Ventilator Rate: 1 to 150 BPM

• PIP (Peak Inspiratory Pressure): 5 to 90 cmH2O

• PEEP/CPAP: 0 to 24 cmH2O

• Inspiratory Time: 0.1 to 3.0 seconds

• Flow Rate (Mandatory Breath): 4 to 40 LPM

• Background Flow: 2 to 32 LPM (demand system provides up to 40 LPM total flow)

• Proximal Airway Pressure: -10 to 120 cmH2O

• Mean Airway Pressure: 0 to 99.9 cmH2O

• I:E Ratio: 1:0.1 to 1:99.9

• Expiratory Time: 0.2 to 59.9 seconds

• Duration Positive Pressure: Duration of positive pressure applied 1 cmH2O above baseline in seconds

• High Frequency Rate: 2 to 22 Hz

• Amplitude: Measured HFV pulse pressure 0 to 160 cmH2O

Front Panel Controls

• Ventilator Settings

• Ventilator Rate

• PIP (Peak Inspiratory Pressure)

• PEEP/CPAP

• Inspiratory Time

• Flow Rate (Mandatory Breath)

• Background Flow

• Manual Breath

• Proximal Airway Pressure

• Mean Airway Pressure

• I:E Ratio

• Expiratory Time
