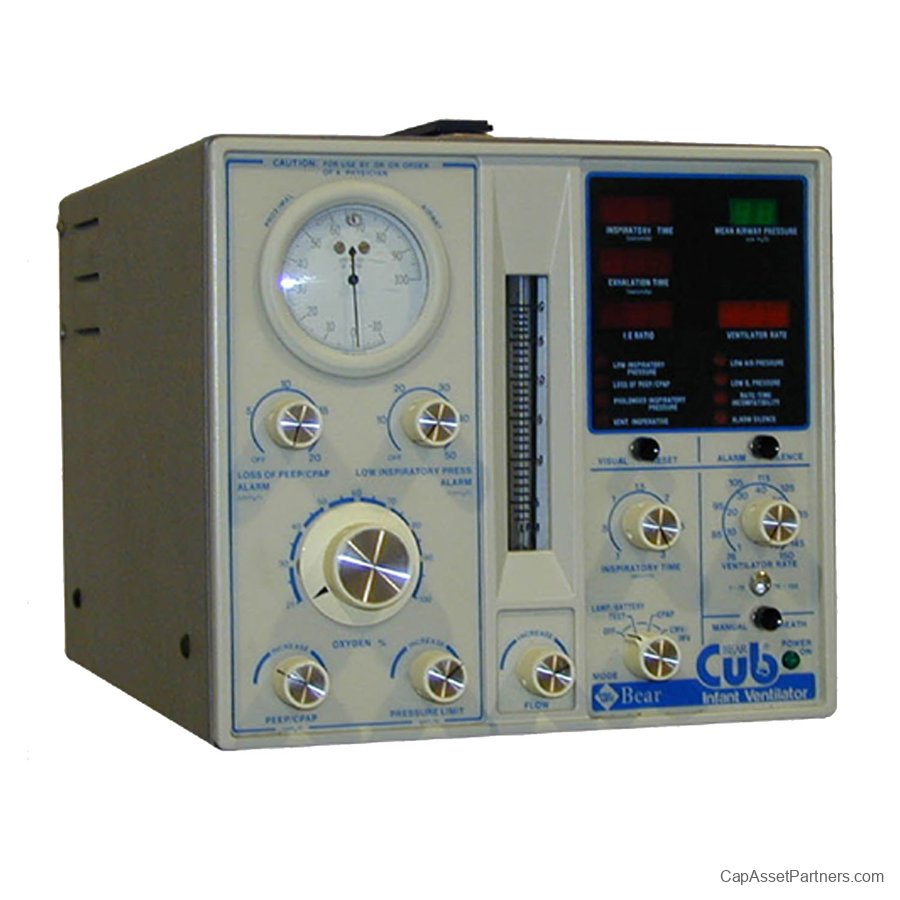

Bear Cub Infant Ventilator

Introducing the Bear Cub Infant Ventilator, a sophisticated respiratory support solution designed specifically for the delicate needs of infants. This ventilator features time-cycled, pressure-limited operation and offers multiple modes including Continuous Positive Airway Pressure (CPAP), Controlled Mechanical Ventilation (CMV), and Intermittent Mandatory Ventilation (IMV).
With an adjustable ventilator rate ranging from 1 to 150 breaths per minute and inspiratory times from 0.1 to 3.0 seconds, the Bear Cub ensures precise ventilation tailored to each neonate's requirements. Safety is paramount, and this device is equipped with a clear digital display along with both audible and visual alarms to promptly alert healthcare providers of any changes in the patient's condition.
Enhance the versatility of the Bear Cub with optional accessories like a humidifier, pedestal stand, and patient circuit, allowing for comprehensive respiratory care in various clinical settings. The Bear Cub Infant Ventilator is your trusted partner in providing critical respiratory support for vulnerable patients.

Bear Cub Infant Ventilator Specifications

• Model: Bear Cub

• Type: Infant Ventilator

• Weight: 5.5 lbs (2.5 kg)

• Dimensions:

• Width: 11.8 inches (30 cm)

• Depth: 6.7 inches (17 cm)

• Height: 9.8 inches (25 cm)

• Ventilation Modes:

• Continuous Positive Airway Pressure (CPAP)

• Assist-Control (A/C)

• Synchronized Intermittent Mandatory Ventilation (SIMV)

• Tidal Volume Range:

• 2 to 20 mL

• Respiratory Rate:

• 5 to 150 breaths/min

• FiO2 (Fraction of Inspired Oxygen):

• Adjustable from 21% to 100%

• Peak Inspiratory Pressure:

• 5 to 50 cm H2O

• End-Expiratory Pressure:

• 0 to 20 cm H2O

• Monitoring Capabilities:

• Expiratory tidal volume

• Peak inspiratory pressure

• Respiratory rate

• FiO2

• Alarms:

• High and low pressure

• High and low respiratory rate

• Power Supply:

• AC mains: 100-240 V (50/60 Hz)

• Battery backup available

• Display:

• LCD screen

• User Interface:

• Touch screen controls

• Compliance:

• Meets ISO and EN standards for infant ventilators

Additional Features:

• Integrated nebulizer support

• Compact design suitable for transport

• User-friendly software for diagnostics and settings adjustment

• Ultra-low noise operation for neonatal care environments

Note: Manufacturer's recommendations for ventilation settings should always be followed.
