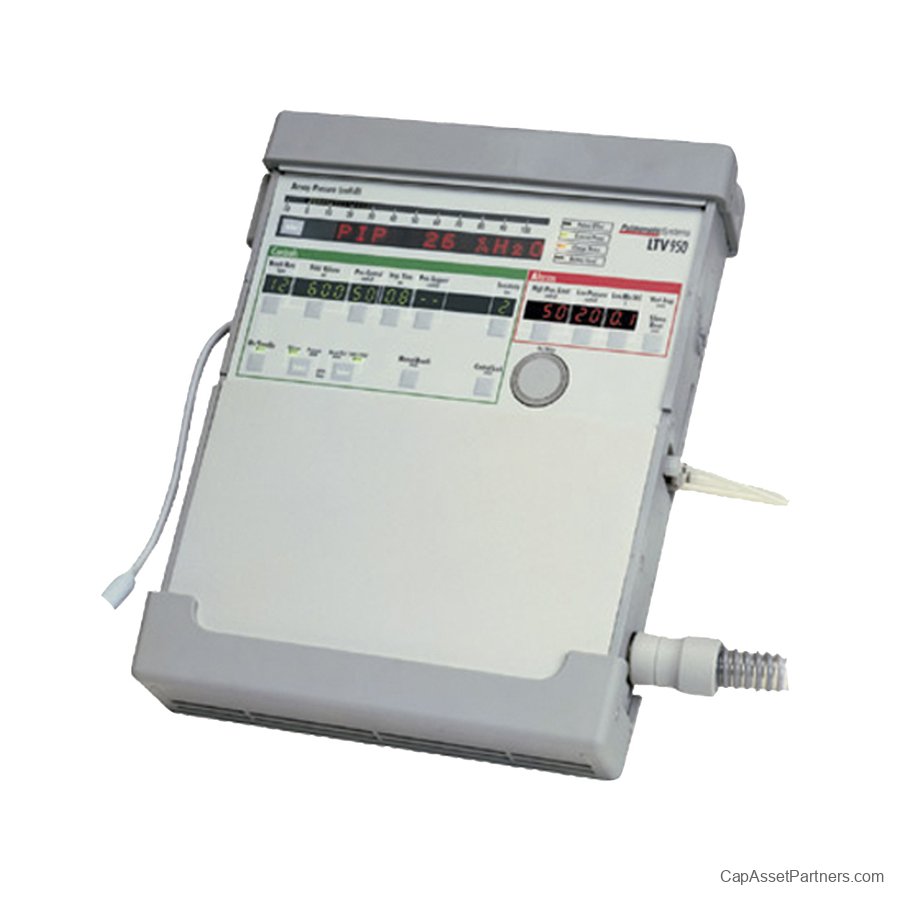

Pulmonetic LTV-950 Ventilator

Pulmonetic LTV-950 Ventilator: Advanced Mobility Meets Cutting-Edge Technology
The Pulmonetic LTV-950 Ventilator is designed for those who demand the best in respiratory care while maintaining an active lifestyle. Weighing just 13.4 lbs (6.1 kg), this lightweight ventilator enhances patient mobility without sacrificing the advanced ventilation features essential for optimal care.
Innovative Features for Optimal Care
Equipped with a range of advanced ventilation modes, including pressure control, pressure support, and non-invasive positive pressure ventilation (NPPV), the LTV-950 adapts seamlessly to each patient's needs. Its easy-to-use interface simplifies operation, while extensive monitoring capabilities and a robust alarms system ensure patients receive the highest level of care.
Key Benefits Include:

• User-Friendly Design: The intuitive interface is complemented by comprehensive monitoring features.

• Enhanced Comfort: Enjoy a range of comfort-oriented settings such as:

• Variable Rise Time

• Adjustable Flow Trigger Sensitivity

• Flow and Time Termination Options

• Leak Compensation

• High Pressure Alarm Delay

• Flexible Oxygen Delivery: The ventilator supports low flow and low-pressure oxygen bleed in for customized therapy.

Versatile Power Options for Greater Mobility
Designed for versatility, the LTV-950 can be powered by multiple sources to accommodate patient needs during transport:

• AC Power

• LTV Transport Battery System

• LTV Universal Power Supply

• 3-Hour and 9-Hour External Batteries

• Automobile Lighter Adapter

Experience the fusion of innovative technology and portability with the Pulmonetic LTV-950 Ventilator—an ideal solution for those seeking enhanced mobility and comfort in respiratory support.

Pulmonetic LTV-950 Ventilator Specifications:

• Type: Portable ventilator

• Modes:

• Assist/Control (A/C)

• Synchronized Intermittent Mandatory Ventilation (SIMV)

• Pressure Support (PSV)

• Continuous Positive Airway Pressure (CPAP)

• Tidal Volume Range:

• 50 - 2,000 mL (2 - 68 fl oz)

• Rate Range:

• 1 - 150 breaths/min

• I:E Ratio:

• Adjustable (1:1 to 1:4)

• Pressure Settings:

• Peak Inspiratory Pressure Range: 5 - 50 cm H?O (2 - 39 mmHg)

• Positive End-Expiratory Pressure (PEEP): 0 - 20 cm H?O (0 - 15 mmHg)

• Flow Rate:

• 1 - 120 L/min (0.26 - 31.7 gal/min)

• Oxygen Concentration:

• 21% - 100%

• Power Supply:

• AC: 100-240 V, 50/60 Hz

• DC: 12 V, 24 V

• Dimensions:

• 15.8 in x 11.3 in x 5.6 in (40.1 cm x 28.7 cm x 14.2 cm)

• Weight:

• 3.5 lbs (1.6 kg)

• Operation Environment:

• Temperature: 10°C to 40°C (50°F to 104°F)

• Humidity: 10% to 90% non-condensing

• Display:

• LCD with waveform and numeric parameters

• Battery Life:

• Up to 8 hours, depending on usage conditions

• Accessories:

• Integrated alarm system (audible/visual)

• Respiratory circuit and patient interface options available.

• Certifications:

• CE Marked

• FDA Approved

Note: Always refer to the manufacturer's manual for specific operational details and guidelines.
