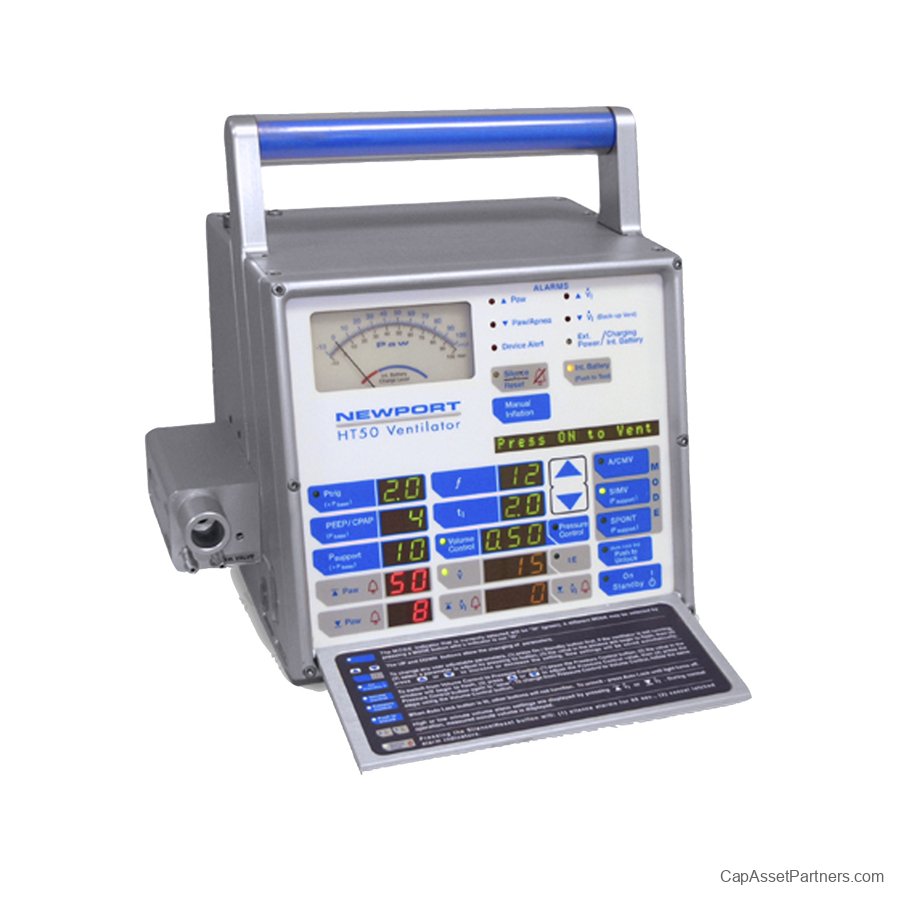

Newport HT 50 Ventilator

Newport HT50 Ventilator: Your Trusted Partner in Ventilatory Care
The Newport HT50 Ventilator is a leading choice for ventilatory care, combining robust construction and advanced technology to deliver unparalleled support for patients. Designed for versatility, this compact and lightweight ventilator is ideal for a wide range of applications, including transport, extended care, hospital, and homecare settings.
Engineered for both pediatric (10kg) and adult patients, the Newport HT50 offers the flexibility of invasive or non-invasive ventilation. Its user-friendly design ensures ease of operation, while the low maintenance requirements make it a cost-effective solution for healthcare providers.
Key Features:

• Volume or Pressure Control Ventilation: Tailored support based on patient needs.

• Invasive or Non-Invasive Ventilation: Suitable for various treatment scenarios.

• Pressure Support: Enhances patient comfort and ventilation efficacy.

• Built-in PEEP/CPAP: Provides essential breathing support.

• Comprehensive Alarms/Monitoring: Ensures patient safety and real-time oversight.

• Long-lasting Internal Battery: Equipped with rapid recharging capabilities for uninterrupted care.

• Unique Gas Delivery System: Operates independently without needing an external air compressor.

• Optional Air/Oxygen Mixer: Enables high-pressure mixing for optimized airflow (0.21-1.00).

• Optional Blending Bag: Ideal for low-flow systems, enhancing versatility.

Choose the Newport HT50 Ventilator for reliable performance and advanced features that cater to diverse healthcare environments. Experience the future of ventilatory care today!

Newport HT 50 Ventilator Specifications

Physical Weight & Dimensions

• Height: 10.24 inches (26 cm)

• Width: 10.63 inches (27 cm)

• Depth: 10.24 inches (26 cm)

• Weight: 15 lbs (6.8 kg) (without humidifier)

Patient Range

• Pediatric (? 10 kg) - Adult

Control Settings

• Modes (Pressure or Volume): A/CMV, SIMV, SPONT

• Volume Control (Tidal volume): 100 to 2,200 mL

• Frequency (ƒ): 1 to 99 breaths/min

• Inspiratory Time (tl): 0.1 to 3.0 sec

• PEEP/CPAP: 0 to 30 cmH2O / 0 to 30 mbar

• Pressure Support (Psupport): 0 to 60 cmH2O / 0 to 60 mbar

• Flow (V): 6 to 100 L/min

• I:E Ratio: 1:99 to 3:1

• Pressure Control (Target Pressure): 5 to 60 cmH2O / 5 to 60 mbar

• Sensitivity (P trig): -9.9 to 0 cmH2O / -9.9 to 0 mbar

• Panel Lock: ON/OFF

• Manual Inflation: Up to 3 sec maximum (single operator controlled breath)

• FIO2: 0.21 to 1.00

Monitor Parameters

• Peak, Mean, Base Airway Pressure (Paw)

• Tidal Volume (VT) (inspiratory tidal volume)

• Proximal Airway Temperature

• Inspiratory Minute Volume

• Internal Battery: Total frequency (ƒ total)
