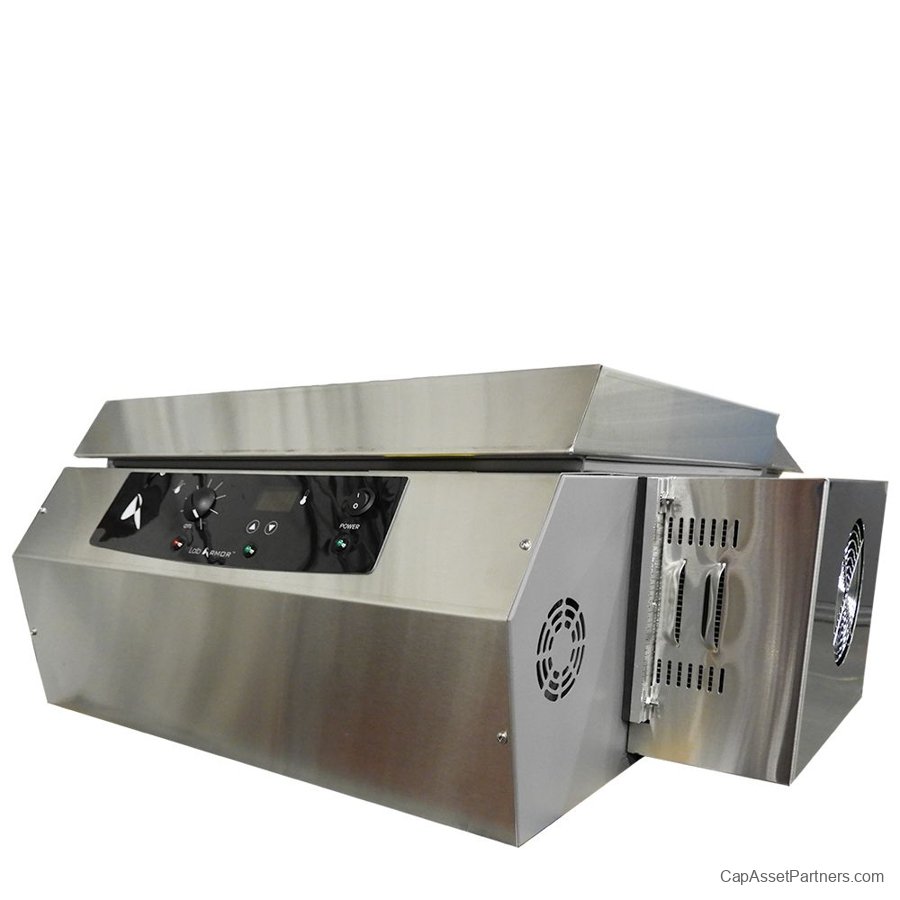

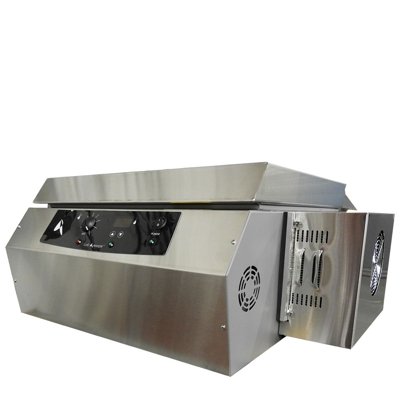

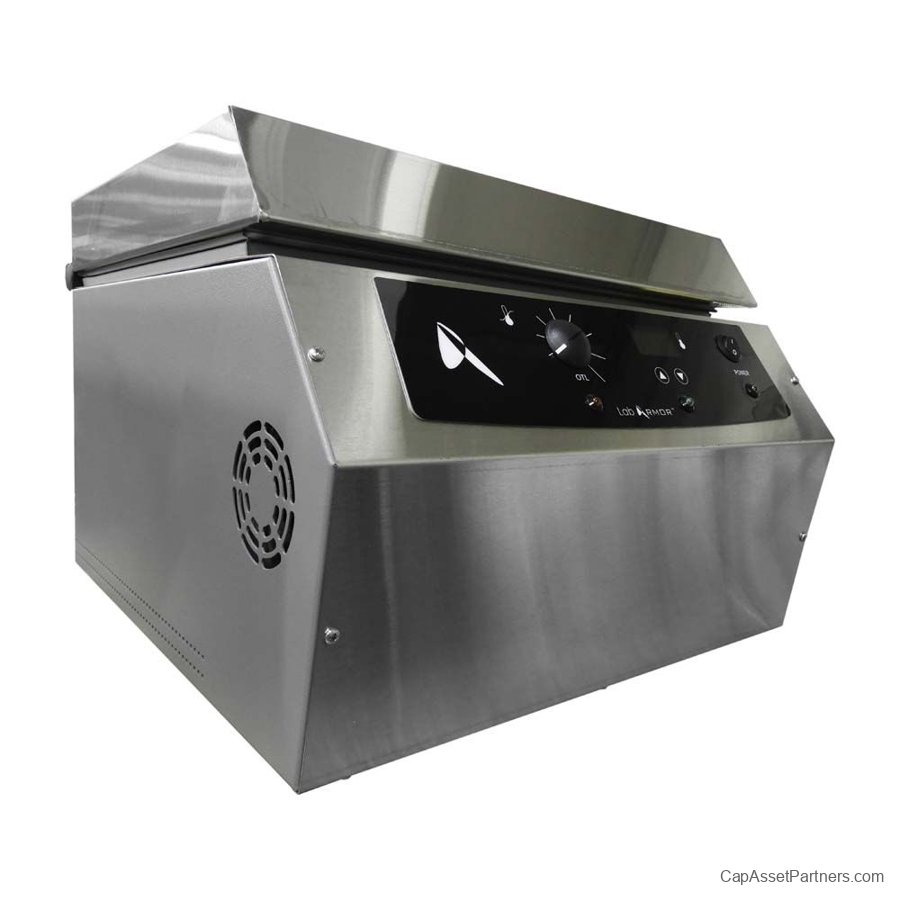

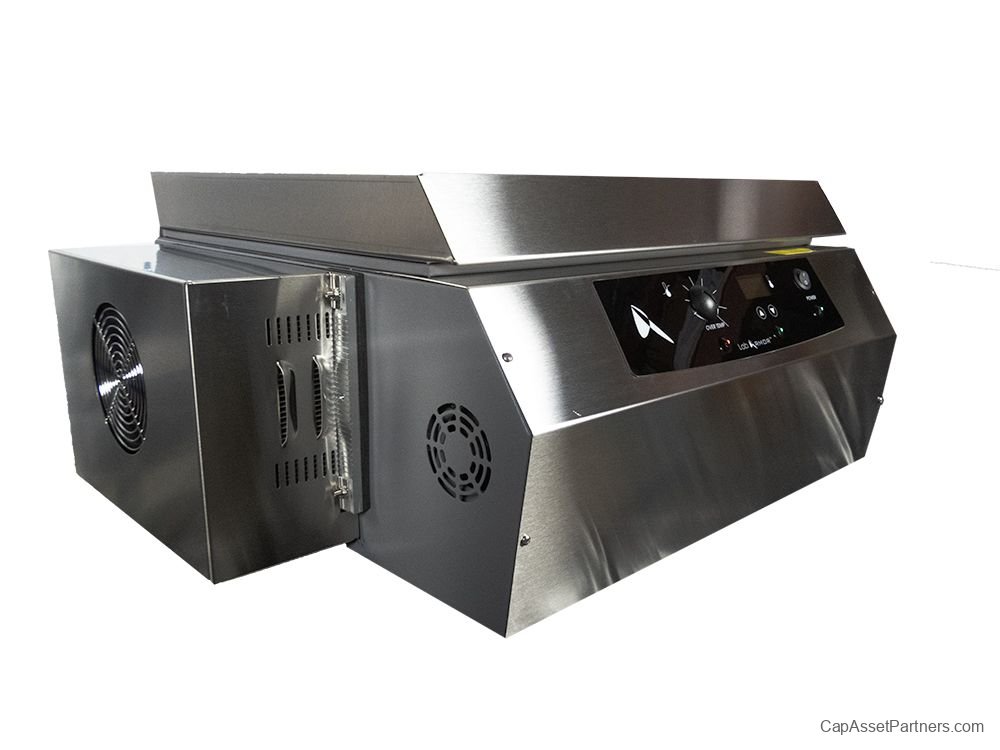

Lab Armor Peltier Bead Baths
The Lab Armor Peltier Bead Baths are comprehensive thermal management solutions designed for both chilled and heated applications. These units provide exceptional temperature uniformity and a secure hold for your laboratory vessels, ensuring reliable results in various scientific processes.
Key Features
- Peltier Thermoelectric Cooler-Heater (TEC-H) Device: Offers precise temperature control.

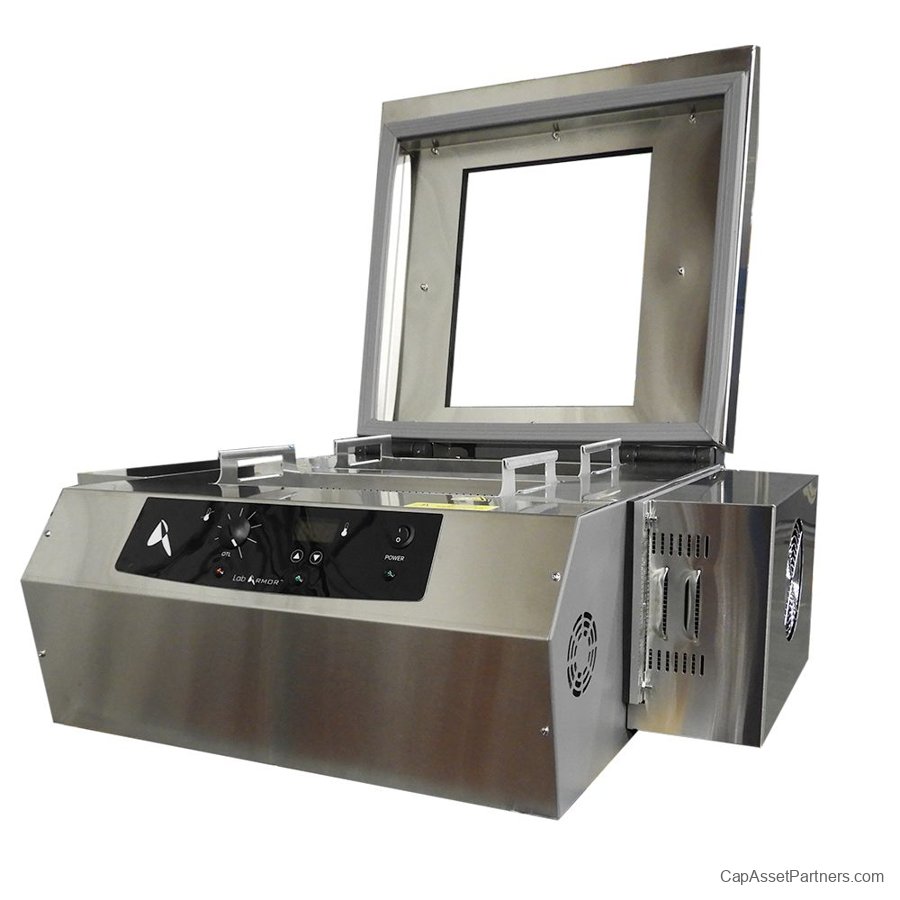

- Acrylic Viewport: Allows for easy monitoring of samples without the need to open the lid, thus maintaining temperature stability.
- Sealing Lid: Enhances temperature stability by minimizing environmental exposure.

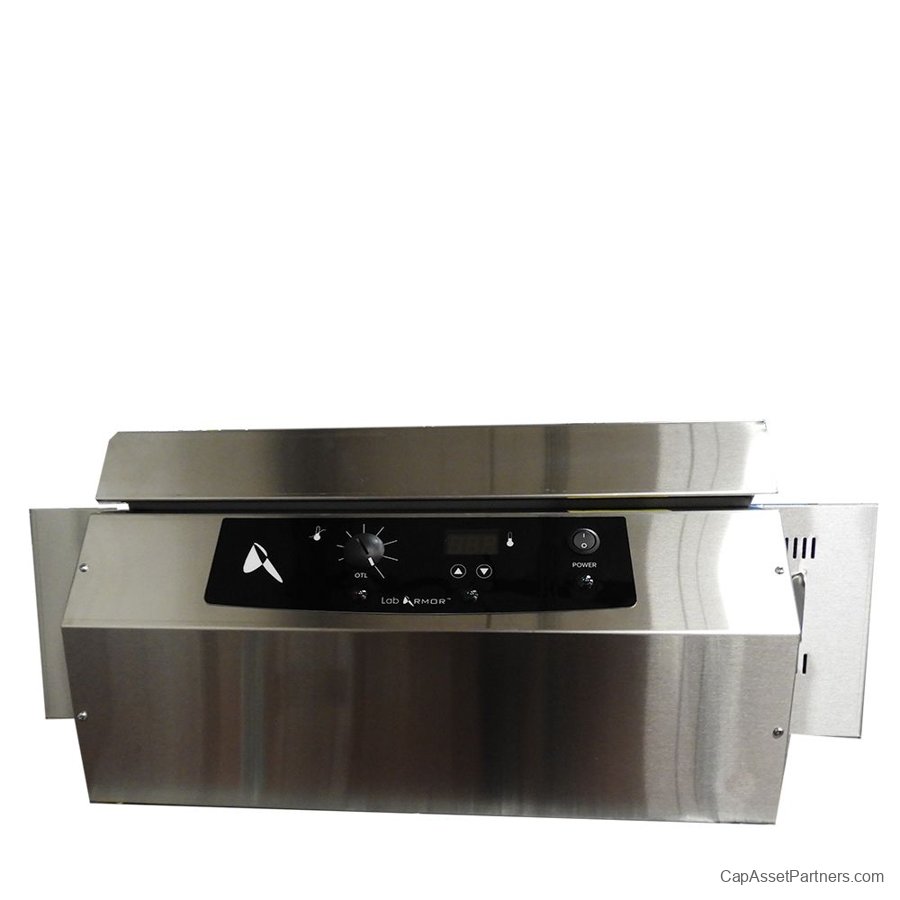

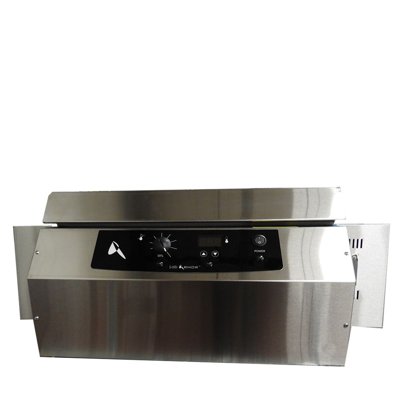

- Digital Control Panel: Features a user-friendly interface with a digital temperature display for accurate monitoring.
- Robust All Steel Construction: Designed to withstand the rigors of laboratory environments.
- Compliance with IEC 61010 Safety Standards: Ensures safe operation across all laboratory settings.
- Size Specifications: Standard 7L baths include one 7L aluminum basket; standard 14L baths come with two 7L aluminum baskets for versatile use.
Applications
- Food and Beverage Testing
Specifications
| SKU |
Temperature Range |
Temperature Uniformity |
Voltage |
| 75409-707 |
2°C-70°C |
±0.5°C at 37°C |
100-240 VAC, 50/60 Hz, 275 Watts Amps |
| 75400-707 |
2°C-70°C |
±0.5°C at 37°C |
100-240 VAC, 50/60 Hz, 275 Watts Amps |
| 75409-714 |
2°C-70°C |
±0.5°C at 37°C |
100-240 VAC, 50/60 Hz, 550 Watts Amps |
| 75400-714 |
2°C-70°C |
±0.5°C at 37°C |
100-240 VAC, 50/60 Hz, 550 Watts Amps |
Additional Information
| SKU |
External Dimensions |
Internal Dimensions |
| 75409-707 |
16.1" x 22.1" x 12.1" |
12.5" x 6.1" x 6.0" |
| 75400-707 |
16.1" x 22.1" x 12.1" |
12.5" x 6.1" x 6.0" |
| 75409-714 |
30.4" x 24.2" x 12.2" |
12.5" x 6.1" x 6.0" (x2 baskets) |
| 75400-714 |
30.4" x 24.2" x 12.2" |
12.5" x 6.1" x 6.0" (x2 baskets) |

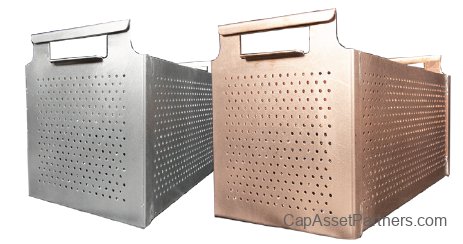

Bead Basket Options
- 9551101: 7-Liter Aluminum Bead Basket
- 9551102: 3-Liter Aluminum Bead Basket
- 9551103: 7-Liter Copper Bead Basket
- 9551104: 3-Liter Copper Bead Basket
