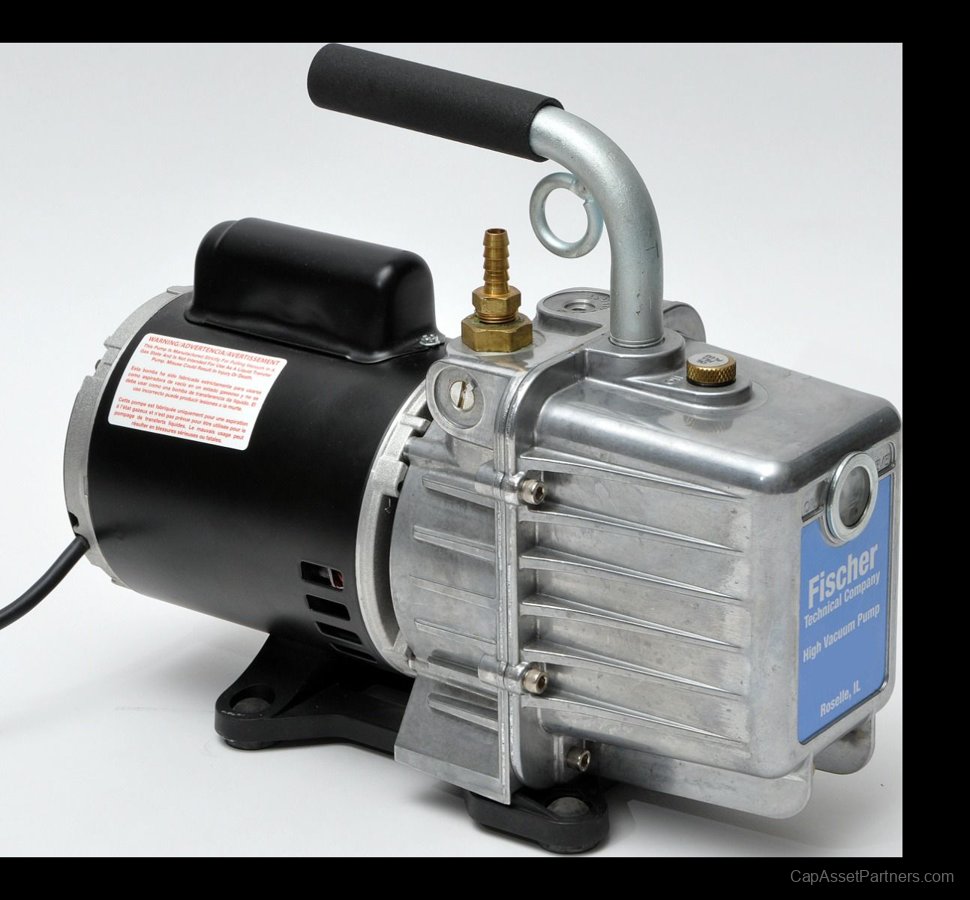

LAV Series High Vacuum Pump, 10 CFM
The LAV Series High Vacuum Pump is a high-performance rotary style vacuum solution, providing an impressive 10 CFM (285 l/m) flow rate. This robust, two-stage direct drive pump is engineered for exceptional reliability in a variety of high vacuum applications. Its capability to achieve a factory-rated 15 microns Hg makes it suitable for any operation requiring a vacuum under 500 microns Hg, ensuring precision and efficiency in your laboratory settings.
Key Features and Specifications:
- Factory Micron Rating: 15 microns
- Intake Fitting: 3/8" Intake Hose Barb

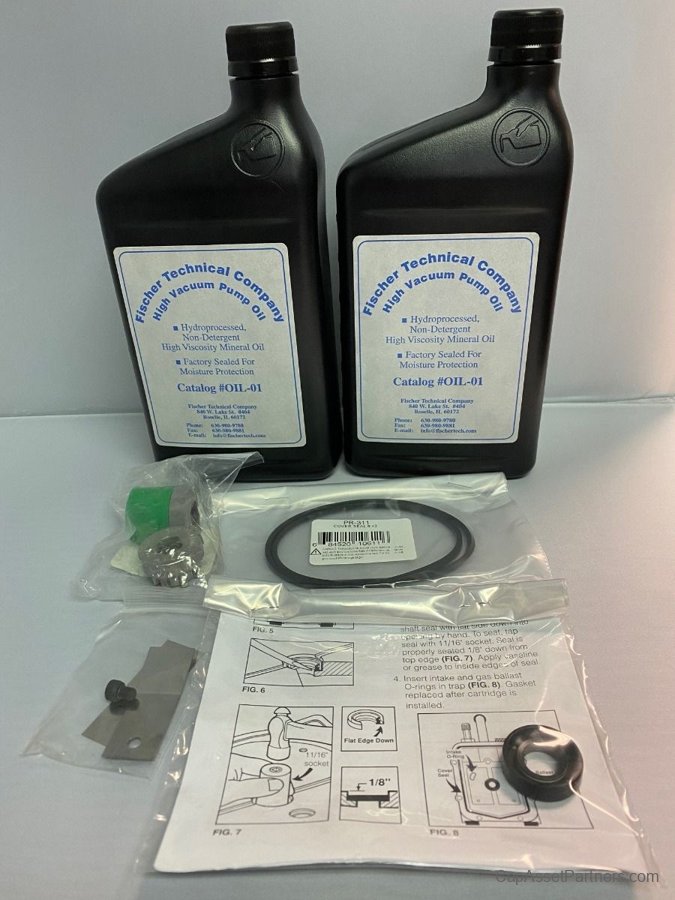

- Oil Refill Options: OIL-012 (12 Quarts) and OIL-PK (2 Quarts)
- Certification: UL Recognized
- Shipping Dimensions: 11in H x 14in L x 5 1/4in W
Technical Specifications:
| SKU |
Gauge |
Operating Temperature Range |
Recirculating Pump Speed |
Motor Type |
Oil Capacity |
| LAV-10/G |

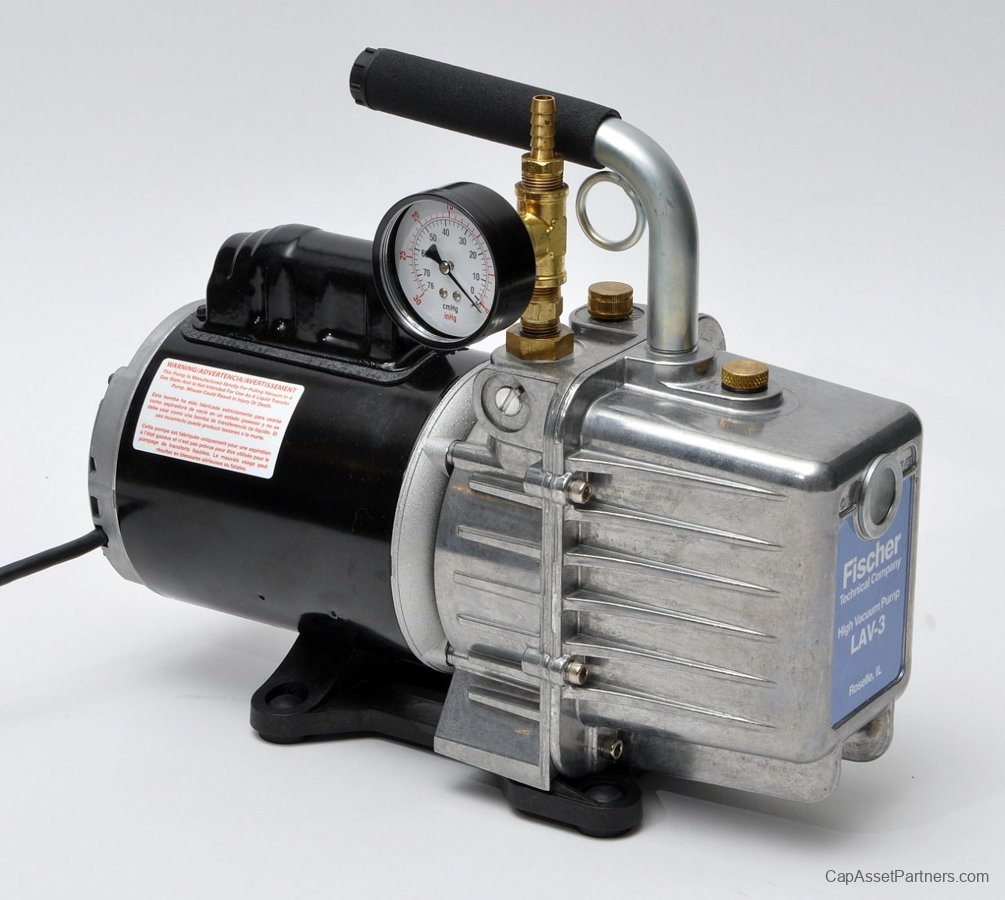

2.5 in Diameter & 0-30 in Bourdon Tube Type Gauge |
30°F to 170°F |
1725 RPM |
1/2 HP |
24 oz |
| LAV-10/G/220 |
2.5 in Diameter & 0-30 in Bourdon Tube Type Gauge |
30°F to 170°F |
1725 RPM |
1/2 HP |
24 oz |
| LAV-10 |
- |
30°F to 170°F |
1725 RPM |
1/2 HP |
24 oz |
| LAV-10/220 |
- |
30°F to 170°F |
1725 RPM |
1/2 HP |
24 oz |
Additional Information:
| SKU |
Certification |
Country of Manufacture |
| LAV-10/G |
UL Recognized |
United States |
| LAV-10/G/220 |
UL Recognized |
United States |
| LAV-10 |
UL Recognized |
United States |
| LAV-10/220 |
UL Recognized |
United States |
