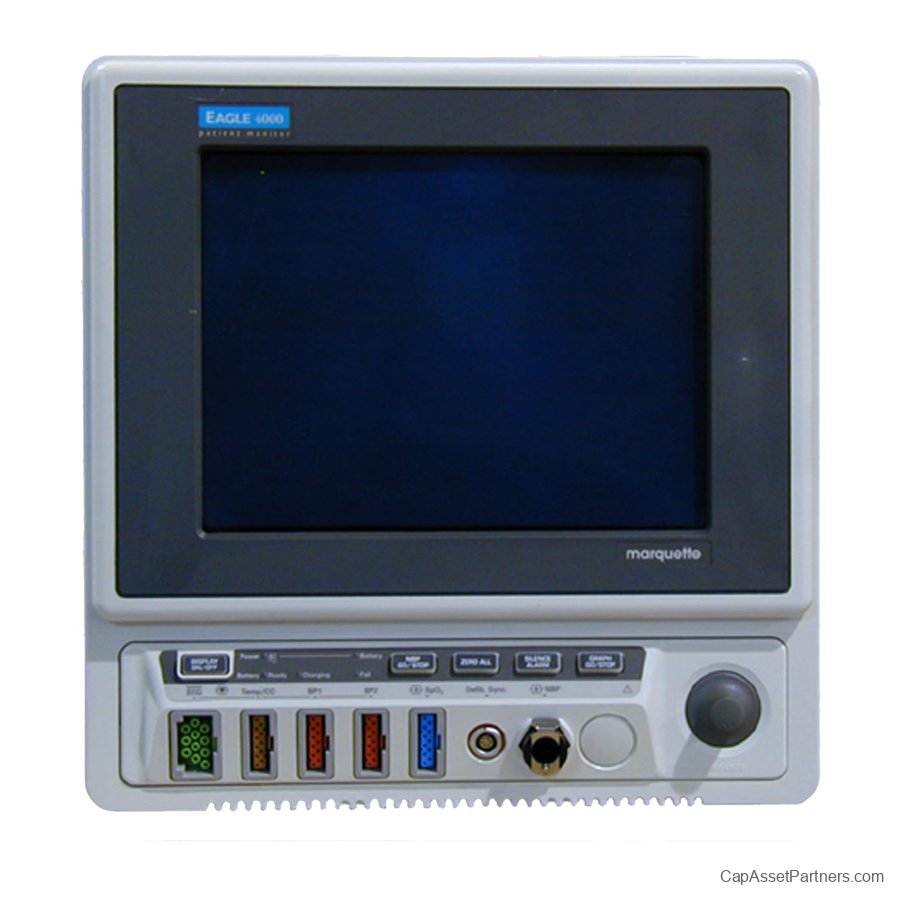

Marquette Eagle 4000 Multi-Parameter Patient Monitor

Marquette Eagle 4000 Multi-Parameter Patient Monitor
The Marquette Eagle 4000 is a versatile and reliable vital signs monitor designed to enhance patient care in a clinical setting. This advanced monitoring system features the capability to track a range of vital parameters, including multi-lead ECG, non-invasive blood pressure, SpO2 (oxygen saturation), and two separate temperature readings.
Equipped with a 10.4-inch display—available in both color and monochrome—the Eagle 4000 presents up to six waveforms simultaneously, allowing healthcare professionals to monitor patients effectively and efficiently. Its compact design, measuring 12.8 x 12.5 x 5.6 inches and weighing just 16 pounds, makes it easy to integrate into various medical environments.
With the potential for expansion, the Marquette Eagle 4000 is an ideal choice for hospitals, clinics, and emergency care units looking for a dependable patient monitoring solution. Elevate your patient monitoring capabilities with this exceptional device that combines performance, functionality, and ease of use.

Marquette Eagle 4000 Multi-Parameter Patient Monitor Specifications

• Display:

• Type: Color TFT LCD

• Size: 10.4 inches (26.4 cm)

• Parameters Measured:

• ECG: 3/5 lead

• Heart Rate: 30-300 bpm (beats per minute)

• SpO2: 0-100%

• NIBP: Systolic: 40-250 mmHg (5.3-33.3 kPa), Diastolic: 10-200 mmHg (1.3-26.7 kPa), Mean: 20-250 mmHg (2.7-33.3 kPa)

• Temperature: 32-42.9°C (89.6-109.2°F)

• CO2: 0-100 mmHg (0-13.3 kPa)

• Battery Life:

• Typical: 2-4 hours

• Alarm Limits:

• Adjustable thresholds for all monitored parameters

• Communication Interfaces:

• Ethernet, USB, Serial ports

• Input/Output:

• 2 x DB9 connectors, 1 x RJ45 for networking

• 1 x USB port

• Dimensions:

• Size: 12.6” x 10.2” x 4.3” (32 cm x 26 cm x 11 cm)

• Weight:

• Approx. 8 lbs (3.6 kg)

• Power Supply:

• AC input: 100-240 V, 50/60 Hz

• Environmental Conditions:

• Operating Temperature: 0-40°C (32-104°F)

• Storage Temperature: -20 to 60°C (-4 to 140°F)

• Certifications:

• CE marked, FDA approved

Please consult the manufacturer's documentation for the most current specifications and features.
