Medical Gas Zone Valve Box

Medical Gas Zone Valve Box

• Ensure Safety and Compliance in Your Facility

The Medical Gas Zone Valve Box is an essential component for healthcare facilities, designed to manage medical gas distribution while adhering to stringent safety standards. This high-quality valve box is meticulously crafted to meet NFPA 99 requirements, ensuring optimal functionality and reliability in critical environments.
Product Description:

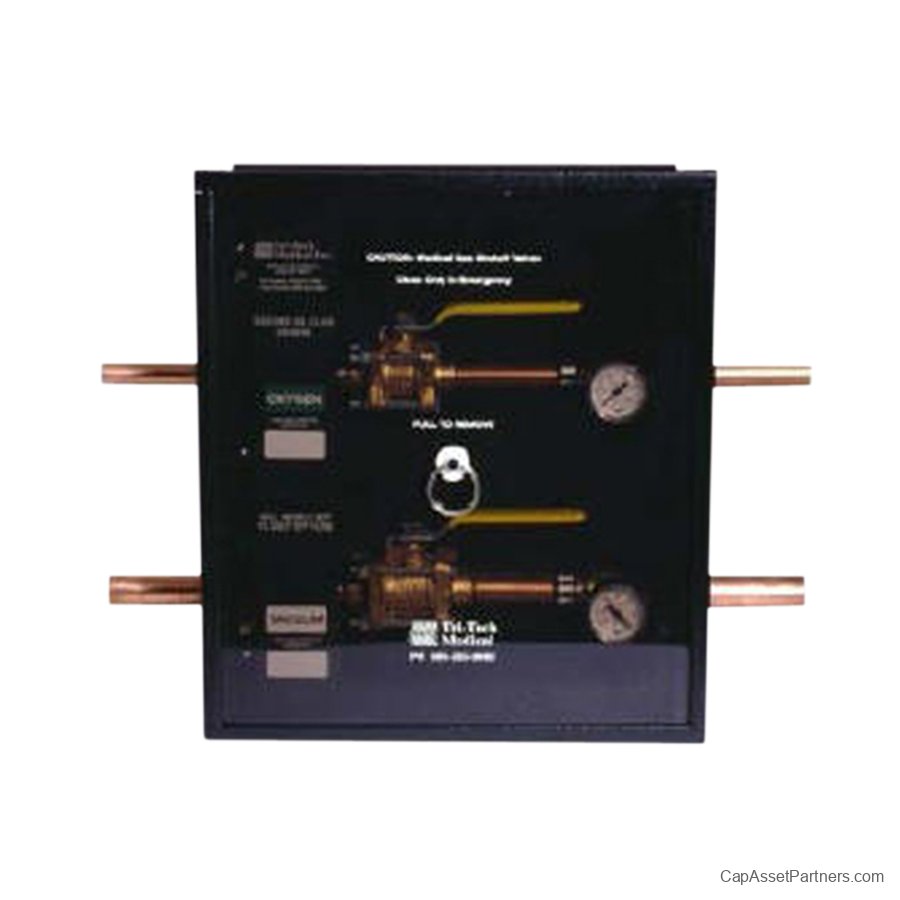

This model (Z2G2O3V) comes equipped with gauges for precise monitoring of gas flow, with options for ½" oxygen and ¾" vacuum. Its robust construction features full port ball valves and three-piece in-line repairable valves, which allow for easy maintenance and a longer service life. The adjustable packing and blow-out proof stem design enhance safety and performance, guaranteeing that your facility operates efficiently and securely.
Key Features:

• Meets NFPA 99 requirements for medical gas systems

• Full port ball valves for improved flow capacity

• Three-piece in-line repairable valves for easy servicing

• Adjustable packing with a blow-out proof stem design for enhanced safety

• Accommodates valve sizes ranging from ½" to 2 inches

• Operates at a working pressure of 600 psi with a 29 in/Hg vacuum

• All valves are cleaned for Oxygen service to ensure safe usage

• Comprehensive color-coded labeling for quick identification

• Available with 1 ½" diameter gauges for accurate readings

• Complies with Federal Standard WW-V35B, Type II, Composition: BZ, Style 1

Invest in the Medical Gas Zone Valve Box for a reliable solution that prioritizes safety, compliance, and performance in your healthcare facility. Act now to enhance your medical gas management system and ensure peace of mind for both staff and patients.

Medical Gas Zone Valve Box Specifications

Installation

• Must be installed and tested in accordance with NFPA 99 standards and applicable local codes.

Valves

• Type: Bronze, ball-type with Teflon (TFE) seats and seals

• Working Pressure: 600 psi (41.4 bar)

• Vacuum Rating: 29 in/Hg (737 mmHg)

• Operation: Lever-type handle requiring a quarter turn to open/close

• Design: Full port, 3-piece in-line repairable, adjustable packing, blow-out proof stem

• Flow Rates: Comparable to the equivalent pipe size

• Piping Orientation: Left to right

• Tubing Extensions: Type K copper, cleaned for oxygen service per CGA standards

• Protective Capping: Valve tube ends capped and sealed

• Gauges: 1.5 inches (38 mm) diameter, marked "USE NO OIL", dual scale gauges not acceptable for U.S. installations

• Labeling: Fully color-coded label package for installer application

Box

• Material: 16 gauge sheet steel

• Finish: Two-part epoxy coating to prevent rust

• Capacity: Houses 1 to 3 valves (multiple boxes may be coupled with part # ZV-801 coupler kit)

• Mounting: Supplied with a ¾ inch (19 mm) plaster flange

Window

• Frame: Formed steel, painted black

• Window: Smoked translucent flexible plastic, easily removable, with pull-out ring

• Replacement Policy: Not replaceable while any valve is open

• Warning Statement: Silk screened with "Caution: Medical gas shutoff valves. Close only in emergency."
