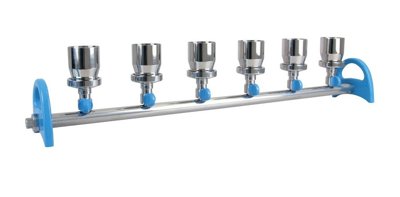

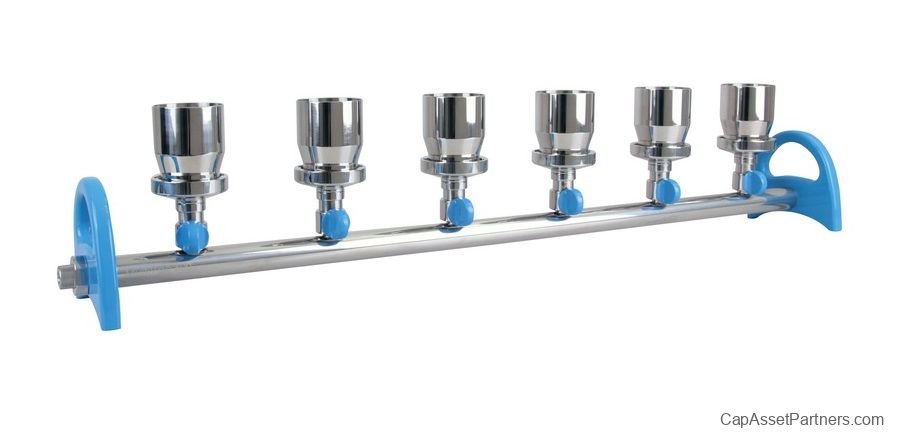

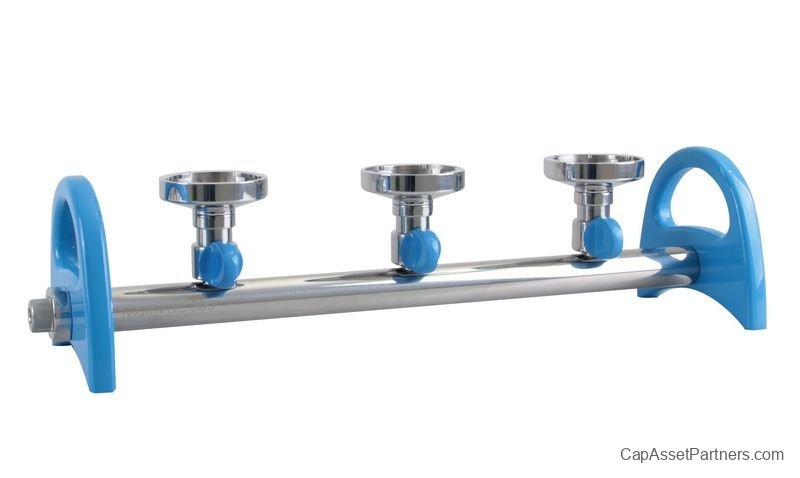

MultiVac Stainless Steel Spin-Lock Design Multi-Branch Manifolds

Get Quote Add to Quote List
Do you have a MultiVac Stainless Steel Spin-Lock Design Multi-Branch Manifolds you want to sell?

We buy used equipment! Learn about selling

Manufactured by: Sterlitech Corporation

Category: Vacuum Manifolds

Sterlitech Corporation MultiVac Stainless Steel Spin-Lock Design Multi-Branch Manifolds
Sterlitech Corporation MultiVac Stainless Steel Spin-Lock Design Multi-Branch Manifolds
Sterlitech Corporation None - Vacuum Manifolds
Sterlitech Corporation None - Vacuum Manifolds

MultiVac Stainless Steel Spin-Lock Design Multi-Branch Manifolds

Features:

    • Quick-assembly and disassembly for enhanced operational efficiency
    • Convertible funnel adaptor for versatile application across different setups
    • Innovative vent valve design to ensure optimal airflow control
    • Quick-Fit hose barb facilitating seamless hose connections
    • Individual control valves for precise management of flow rates
    • Compatible with various sizes of funnels, providing flexibility in laboratory applications

Applications:

    • Microbiology testing, enhancing accuracy and reliability
    • Suspended solid testing, ideal for environmental monitoring
    • Vacuum filtration for efficient separation processes

Specifications:

SKU Filtration Area Filter Diameter Stopper Number Funnel Capacity
180300-00 No. 8
180600-00 No. 8
180601-02 9.6 cm² 47 mm/50 mm No. 8 100 mL
180300-02 9.6 cm² 47 mm No. 8 100 mL/300 mL/500 mL
180600-02 9.6 cm² 47 mm No. 8 100 mL/300 mL/500 mL

Additional Information:

SKU Hose Connection Length Width Height
180300-00 5/16 in (8 mm) 48 cm 13 cm 16 cm
180600-00 5/16 in (8 mm) 85 cm 13 cm 16 cm
180601-02 5/16 in (8 mm) 85 cm 13 cm 11 cm
180300-02 5/16 in (8 mm) 48 cm 13 cm 11 cm
180600-02 5/16 in (8 mm) 85 cm 13 cm 11 cm
