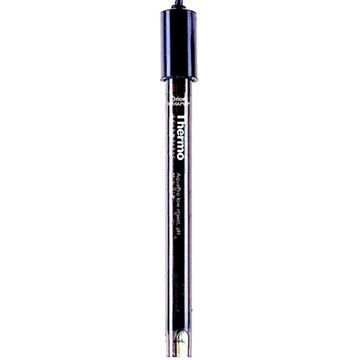

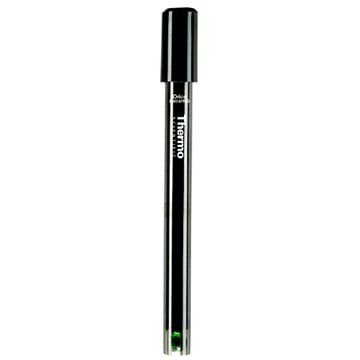

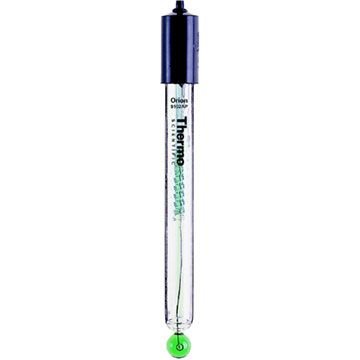

Orion™ AquaPro™ pH Combination Electrodes
Experience unparalleled precision in pH measurements with the Orion™ AquaPro™ pH Combination Electrodes. Designed to deliver rapid and accurate readings for viscous liquid samples, these electrodes feature a unique open double junction reference system that eliminates contact with silver ions, making them ideal for challenging samples including those containing proteins or TRIS buffers, without the presence of mercury.
Key Features:
- Maintenance-Free: The innovative polymer gel reference eliminates the need for a fill solution, significantly reducing maintenance efforts.
- Clog-Resistant Design: Engineered with a clog-resistant open junction, ensuring consistent performance in a variety of sample types.
- Versatile Applications: Suitable for rugged use, general purpose applications, and measuring small sample sizes, liquids on moist surfaces, solids, and semisolids.
- Wide pH Range: Capable of measuring pH levels from 0 to 14 with a relative accuracy of ±0.02pH.
- Temperature Tolerance: Operates efficiently within a temperature range of 32°F to 140°F.
Specifications:
| Specification |
9104APWP |
9107APMD |
9135APWP |
| pH Range |
0 to 14 |
| pH Relative Accuracy |
±0.02pH |
| Junction |
Open |
| Connector Types |
Waterproof BNC |
Waterproof BNC and 8 pin Mini-DIN |
Waterproof BNC |
| Diameter Body |
0.47 in. |
0.47 in. |
0.47 in. |
| Length |
4.72 in. |
4.72 in. |
4.72 in. |
| Cable Length |
39 in. |
| Operating Temperature |
32°F to 140°F |
| Storage Requirements |
Always store in pH storage solution, Orion 910001. Either store in a beaker of storage solution or reassemble in the storage bottle provided with the electrode. |
