OTP Vacuum Oven
The OTP Vacuum Oven is a versatile and high-performance solution designed to meet the demanding needs of laboratories and medical facilities. With three convenient chamber sizes—12.5L (0.44 cu.ft.), 19.8L (0.7 cu.ft.), and 65.1L (2.3 cu.ft.)—this oven is engineered for optimal performance and reliability.
Key Features:
- Temperature Range: Ambient +10°C to 220°C, ensuring flexibility for a variety of applications.
- Thermostat Control: Hydraulic thermostat with dial thermometer for precise temperature management, adjustable in 5°C increments. Medium and large units feature an LED display with 1°C increments for enhanced precision.
- Safety Shield: A durable polycarbonate safety shield protects the door glass, adding an extra layer of safety during operation.
- Sealing Mechanism: A silicone door gasket combined with a positive latch ensures an airtight seal at all vacuum levels; the use of vacuum grease is recommended for optimal performance.
- Corrosion-Resistant Construction: Vacuum and air lines are crafted from stainless-steel tubing, providing long-term performance and superior chamber cleanliness.
- Interior Versatility: Two removable stacking aluminum shelves for easy storage and organization of items within the chamber.
- Robust Exterior: The heavy-gauge steel powder-coated exterior offers durability and resilience in demanding environments.
- Efficient Heating: Radiant warm-wall heating system optimizes temperature uniformity and conserves chamber space, complemented by 3 in. (7.6 cm) glass wool insulation to minimize heat loss.
Model Specific Features:

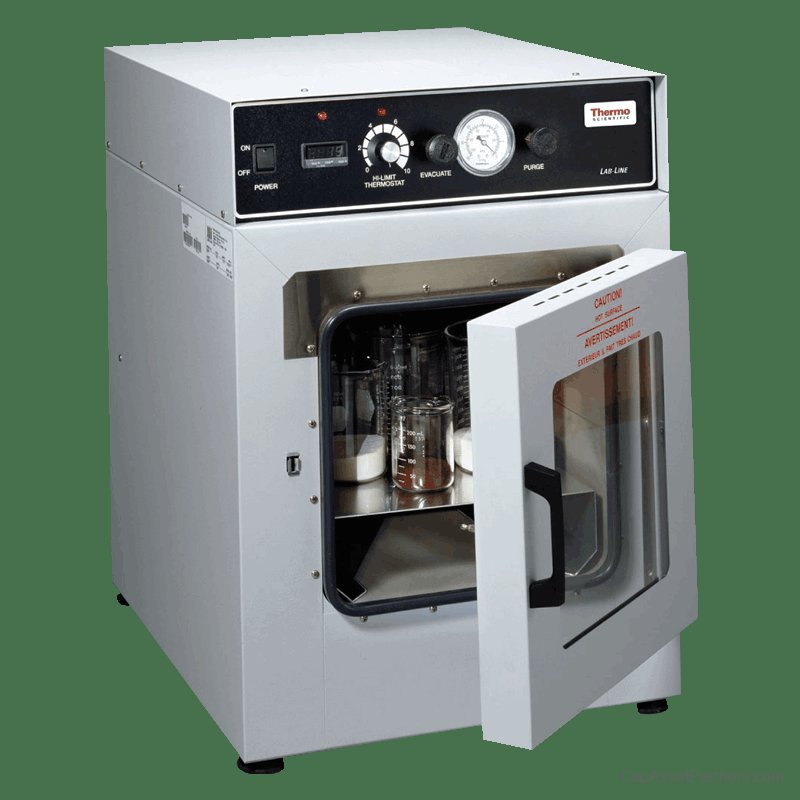

Small 3606 Models
- Independent evacuation and venting vacuum fittings mounted on the top for easy access.

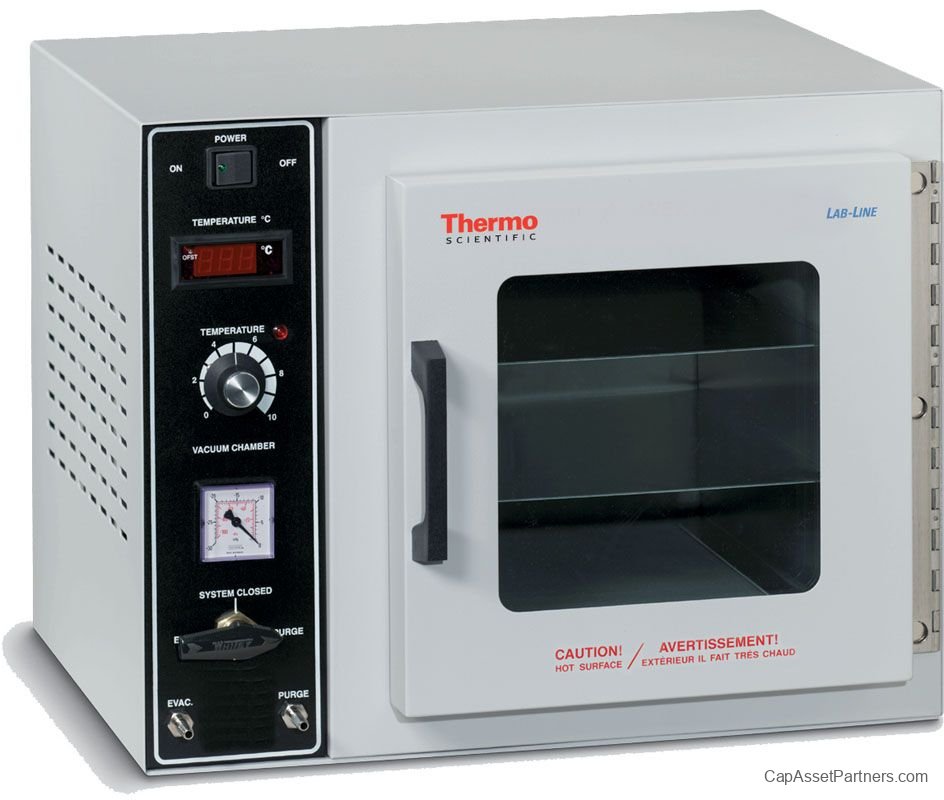

Medium and Large 3608 and 3618 Models
- Front-mounted three-way valve facilitates evacuation, venting, and purging of inert gases (e.g., Nitrogen or Argon), integrated with vacuum fittings positioned on the front for user convenience.
Specifications:
| SKU |
Type |
Temperature Resolution |
Vacuum Range |
# of Shelves |
| 3608-5 |
OTP |
±1.0°C |
0 to 30 in. Hg |
2 Shelves |
| 3608-6CE |
OTP |
±1.0°C |
0 to 30 in. Hg |
2 Shelves |
| 3618-1CE |
OTP |
±1.0°C |
0 to 30 in. Hg |
2 Shelves |
| 3618-5 |
OTP |
±1.0°C |
0 to 30 in. Hg |
2 Shelves |
| 3618-6CE |
OTP |
±1.0°C |
0 to 30 in. Hg |
2 Shelves |
Additional Dimensions:
| SKU |
Length |
Width |
Height |
| 3608-5 |
16 in |
19.8 in |
16.25 in |
| 3608-6CE |
16 in |
19.8 in |
16.25 in |
| 3618-1CE |
25 in |
25 in |
22 in |
| 3618-5 |
25 in |
25 in |
22 in |
| 3618-6CE |
25 in |
25 in |
22 in |
