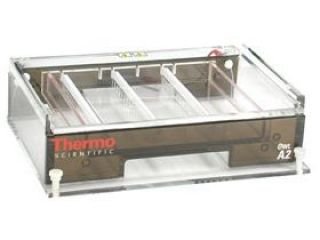

Owl™ A2 Large Gel System

The Owl™ A2 Large Gel System is the ultimate solution for laboratories focused on precise RNA/DNA analysis. Designed for high throughput tasks, this gel system consistently delivers reliable and reproducible results, setting a new standard for molecular biology research.

Key Features:

• The gel can be cast in varying lengths, allowing for efficient agarose usage when fewer samples need to be processed.
• Equipped with optional built-in buffer exchange ports for convenient buffer recirculation during extended runs.
• Features a UVT gel tray with gasketed end gates, ensuring a leakproof seal without the need for tape.
• The built-in leveling system guarantees flat and uniformly thick gels for optimal results.
• Comb slots are designed to accommodate two, three, or four sample sets of equal lengths, enhancing flexibility in experiments.
• Microwell-format combs enable quick and error-free sample loading using a multichannel pipetter.
• Samples can be loaded directly from a 96-well plate, allowing for rapid processing of up to 12 samples at a time.
• Offers a diverse range of comb options to cater to various experimental needs.

Included Components:

The Owl™ A2 Large Gel System includes:

• Buffer chamber with a three-point leveling base
• SuperSafe lid with attached power supply leads
• UVT gel tray featuring gasketed end gates
• 16-well, 24-well, and 36-well, 1.5 mm thick combs

Specifications:

SKU	Dimensions	Volume	Gel Size	Sample Range
A2-BP	14.8 x 12.8 x 4.1 in	Buffer: 2.3 L	25 x 20 cm	8 to 432

Replacement Parts and Accessories:

Compatibility with Replacement Parts:

• Power supply leads uniquely designed with a retractable sheath end for enhanced convenience and safety.
• Manufactured with a strain relief cord to prevent breakage, ensuring durability.

Leveling Platform:

• Three-point leveling platform guarantees a flat casting and running surface.
• Includes a bubble level to assist with proper setup.

Casting Dams:

• Seal agarose on contact, eliminating the need for tape, ultimately improving ease of use.
• Designed for quick handling with knobs or finger depressions, facilitating easy adjustments.
• High-quality aluminum construction enables shorter gels to be cast and run within the same device.

Rapid Load UVT Gel Trays:

• Maximize throughput with trays that enable multiple sample loading capabilities.
