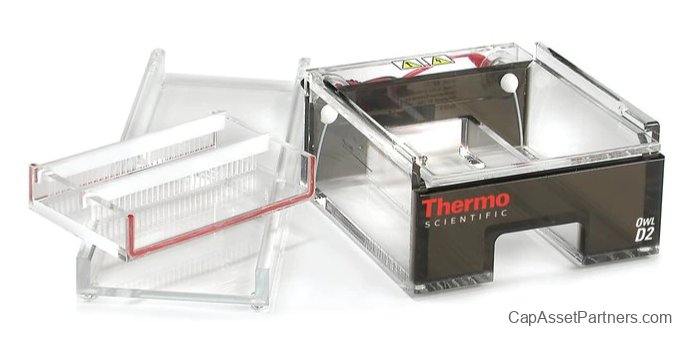

Owl™ D2 Wide-Gel Electrophoresis System
Optimize your DNA fragment analysis with the Owl™ D2 Wide-Gel Electrophoresis System, a cutting-edge solution designed for high-throughput applications. Capable of running between 10 to 80 samples in a single gel, this system is well-suited for laboratories focused on PCR sample screening and routine DNA analysis.
Key Features:
- Generous Gel Capacity: Load 15 or 30 samples per row with a micro well comb, significantly increasing sample processing efficiency.
- Convenient 96-Well Plate Loading: Leverage specialized combs and a multichannel pipetter to load your samples directly from a 96-well plate, accommodating eight or twelve samples at a time.
- Compact Design: The system's small footprint maximizes lab bench space while providing powerful electrophoresis capabilities.
- EasyCast™ Technology: Incorporating Thermo Scientific™ EasyCast™ casting design, the external caster-gel tray features a gasket, ensuring a secure, leakproof seal without the need for tape.
- Efficient Operation: Strategically placed electrodes allow quick gel runs without sacrificing resolution, enhancing productivity in your lab.
Specifications:
| SKU |
Sample Range |
Certification |
Footprint |
| D2-BP |
10 to 80 |
CE Marked |
7.38 x 7.75 x 4" |
Combs Available for Owl™ D2 System:
| Comb Type |
Number of Teeth |
Thickness of Teeth |
Size of Teeth |
Recommended Loading Volumes |
| D1-10C |
10 |
1.0mm |
12.2mm |
9µL, 32µL, 55µL, 78µL |
| D1-30C |
30 |
1.0mm |
7.2mm |
5µL, 19µL, 32µL, 46µL |
| D2-RL-25C |
25 |
1.0mm |
2.5mm |
2µL, 7µL, 12µL, 17µL |
| D2-RL-9D |
9 |
1.5mm |
7.2mm |
8µL, 28µL, 48µL, 69µL |
Note: Recommended loading volumes are calculated at 75% of total well volume. *Combs available in 1X and 2X formats, ideal for 8 and 12-channel pipette compatibility.
