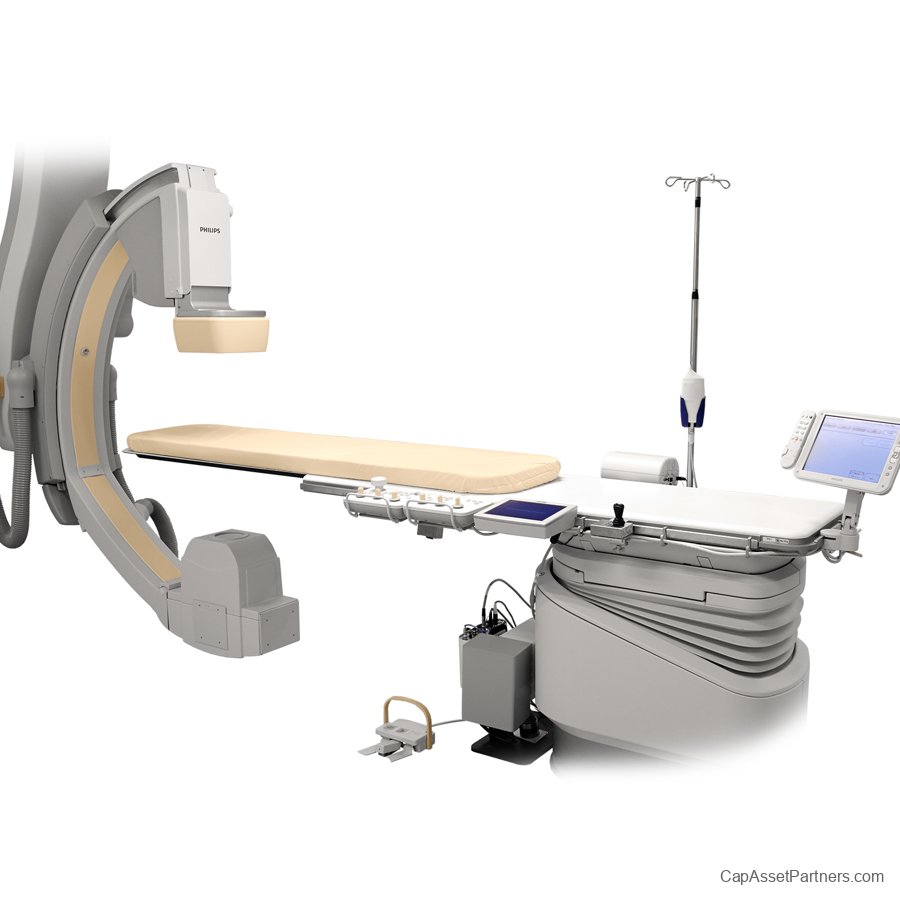

Philips Allura Xper FD10 Cath/Angio System

Philips Allura Xper FD10 Cath/Angio System – Advanced Cardiovascular Imaging Solution
The Philips Allura Xper FD10 Cath/Angio System is a state-of-the-art cardiovascular imaging solution tailored for a wide range of interventional cardiology procedures. This complete system excels in challenging environments, providing high-contrast images with minimal noise. It is specifically designed to enhance visibility during cardiac fluoroscopy, vascular fluoroscopy, and trace subtract fluoroscopy, making it an essential tool for healthcare professionals in the field.
Features of the Philips Allura Xper FD10:

• Floor-mounted Poly Diagnost G Stand: Ensures stable positioning and supports various imaging needs.

• High Output MRC X-Ray Tube: Delivers exceptional imaging quality for precise diagnostics.

• Counter-balanced Flat Detector: Optimizes image acquisition with improved flexibility.

• Xper Table: Facilitates smooth patient positioning and procedure execution.

• Flexible Monitor Ceiling Suspension: Features height adjustment for optimal viewing flexibility.

• Optional Examination Light: Provides additional illumination for enhanced procedural efficiency.

• Xper Data and Review LCD Monitors: Offers clear visualization for data analysis and review.

• Xper Module: Integrates seamlessly into the workflow to streamline procedures.

• Xper Review Module: Facilitates efficient review of conducted procedures.

• Xper Geometry Module: Enhances imaging accuracy and reliability.

The Philips Allura Xper FD10 is engineered to support healthcare providers in delivering the highest level of care through advanced imaging capabilities. This system is perfect for facilities looking to enhance their cardiovascular diagnostic and interventional imaging capabilities. Experience the difference with the Philips Allura Xper FD10, where quality imaging meets innovative technology.

Philips Allura Xper FD10 Cath/Angio System Specifications

Gantry

• Suitable for minimum ceiling height: 240 cm (94.5 in)

• Depth of G-arm: 105 cm (41.3 in)

• Ultra-flexible projection angles:

• Angulation: ±45° cranial/caudal

• Rotation: ±120° LAO/RAO

• Motorized rotation speed: Up to 25°/second

• Motorized angulation speed: Up to 18°/second (variable, configurable via Xper settings)

• Storage and recall of two scratch positions

• Isocenter to floor distance: 106.5 cm (41.9 in)

• Focal spot to isocenter distance: 76.5 cm (30.1 in)

• Focal spot to flat detector distance: 86.5 to 123 cm (34.1 to 48.4 in)

• Gantry rotation for patient accessibility (motorized speed: 12°/second, automatic snap positions at -90°, 0°, 90°)

• Two black and white 18-inch LCD monitors (examination room)

• One 19-inch color monitor and one 18-inch black and white LCD monitor (control room)

Xper Table

• Radio translucent carbon fiber tabletop

• Tabletop length: 319 cm (125.5 in)

• Tabletop width: 50 cm (19.6 in)

• Motorized height movement: 79 - 107 cm (31 - 42 in)

• Metal-free tabletop overhang: 125 cm (49 in)

• Free float at 0 degrees tilt

• Longitudinal float: 120 cm (47 in)

• Transversal float: 36 cm (14 in)

• Maximum allowable patient weight: 250 kg (550 lb) + 500 N (100 kg / 220 lb) for CPR

• Comfortable patient mattress

• Positioning modules (Xper Module, Xper Imaging, Xper Geometry) on three sides

• Integrated cables for operational flexibility

• Maximum tilt range: -17° to +17°

• Tilt speed: 2°/second

• Isocentric cradle with a maximum range: -15° to +15°

• Cradle speed: 3°/second

• Pivot range: -90° to +180° (or -180° to +90°), with locked positions at 0°, -13°, +31°, -90°, +90°, and 180°

Monitor Ceiling Suspension

• Monitors rotate 350°

• Transverse movement: 300 cm (118.1 in)

• Longitudinal movement: 330 cm (129.9 in)

• Motorized height adjustment: maximum range 32 cm

Flat Panel Detector

• Size of detector housing (including BodyGuard): 37 cm (14 in) diagonal

• Field of view: 25 cm (10 in) diagonal square

• Detector zoom fields: 19 cm (8 in) and 15 cm (6 in) diagonal square

• Pixel size: 184 x 184 µm

• Detective Quantum Efficiency (DQE): 75%

• Output digital video frame: 1024² at 14-bit depth

• Acquisition speeds: 3.75, 7.5, 15, and 30 frames/second

• Customizable digital video frame for archiving: formats include 1024², 512², 8 or 10 bit

Velara X-ray Generator

• Microprocessor-controlled, 100 kW high-frequency generator

• Quartz-controlled IGBT power switch: minimum switching time 1 ms

• Voltage range: 40 to 125 kV

• Maximum current: 1250 mA at 80 kV

• Maximum continuous power: 2.5 kW for 0.5 hours, 2 kW for 0.8 hours

• Nominal power: 100 kW (1000 mA at 100 kV)

MRC-GS 0508 X-ray Tube

• Nominal focal spot: 0.5/0.8 mm with max loadability: 45 kW / 85 kW

• Grid switching with pulsed fluoroscopy

• Anode heat dissipation (continuous mode): 3200 W

• Fluoroscopy power for 10 minutes: 4500 W

• Fluoroscopy power for 20 minutes: 3500 W

• Maximum heat dissipation of assembly: 3500 W

• Oil-cooled X-ray tube with thermal safety switch

Color LCD Monitor

• 19-inch color LCD display

• Native format: 1280 x 1024 (SXGA)

• Viewing angle: ~170°

• Brightness: Typically 270 Cd/m² (ambient light dependent)

• On-screen control functions via push buttons

• Audio output: 0.5 watt

• Contrast ratio: typically 800:1

Monochrome LCD Monitor

• 18-inch monochrome LCD display

• Native format: 1280 x 1024 (SXGA)

• 10-bit gray-scale resolution with correction

• Viewing angle: ~160°

• Brightness: Max 600 Cd/m² (ambient light dependent)

• On-screen control functions via push buttons

• Examination room monitors include protection screen and motorized height adjustment
