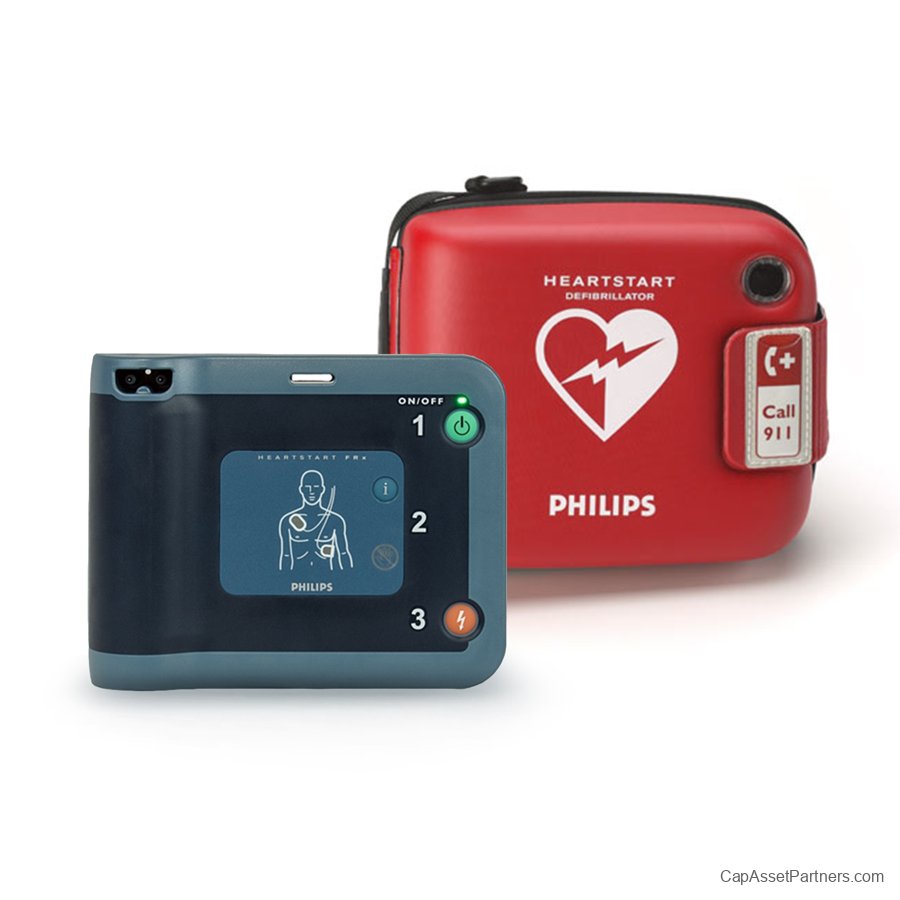

Philips HeartStart FRx AED Defibrillator

Do you have a Philips HeartStart FRx AED Defibrillator you want to sell?

We buy used equipment! Learn about selling

Manufactured by: Philips

Category: AEDs

Philips Philips HeartStart FRx AED Defibrillator
Philips HeartStart FRx AED Defibrillator: Reliable Emergency Response Solution
The Philips HeartStart FRx AED Defibrillator is engineered for immediate use in critical situations, making it an essential tool for law enforcement, athletic events, and workplace environments. Its rugged design ensures reliability in demanding conditions, standing up to water jets, heavy loads, and drops onto hard surfaces. This defibrillator is a trusted solution for the treatment of Sudden Cardiac Arrest (SCA), particularly effective against ventricular fibrillation.

Advanced SMART Technology


At the heart of the HeartStart FRx is Philips' innovative SMART Biphasic technology. This advanced biphasic waveform provides effective defibrillation while being gentle on the heart, supported by extensive clinical data. In addition, the device is equipped with SMART Analysis, a sophisticated rhythm assessment feature that guarantees shocks are only delivered when necessary, ensuring safety for the victim.

User-Friendly Operation


Designed with ease of use in mind, the FRx AED features intuitive icon-driven operation and CPR coaching to guide users through resuscitation efforts. Weighing just 3.5 pounds, it is lightweight yet packed with features, including clear voice commands and visual cues that assist rescuers in high-stress situations. The device also prompts responders to contact emergency medical services (EMS), ensuring help is on the way.

Durable and Dependable


The Philips HeartStart FRx is built for the real world, with a rugged design that meets rigorous safety standards. It undergoes automated self-tests daily, weekly, and monthly to ensure functionality and maintain readiness. The blinking green READY light serves as a reassuring indicator that the device is prepared for immediate use.

Key Features


  • Preconnected SMART Pads II: Designed for both adults and children, the preconnected pads save precious time in emergencies, eliminating the need for separate pads.
  • Wireless Data Transfer: A groundbreaking feature for defibrillation technology, it allows seamless mobile data management using the palm OS™ platform with an infrared data port for easy transmission.
  • Infant/Child Key: This optional feature allows the device to adjust its instruction and shock energy for infants and children, providing tailored care for younger patients.
  • Comprehensive CPR Coaching: Exclusive to HeartStart Defibrillators, it offers clear reminders and instructions for CPR tailored for adults and children.

In summary, the Philips HeartStart FRx AED Defibrillator is not just a defibrillator; it's a complete and reliable solution for emergency response. Its combination of groundbreaking technology, user-friendly design, and robust durability make it a top choice for ensuring safety in various environments. Prepare to ensure health and safety with this essential emergency medical device.

Philips HeartStart FRx AED Defibrillator Specifications


General

  • Philips Model Number: 861304
  • How Supplied: Defibrillator, battery (1), SMART Pads II (1 set), Owner Manual, Quick Reference Guide
  • Waveform: Truncated Exponential Biphasic, parameters adjusted based on patient's impedance
  • Energy:
  • Adult: nominal 150 Joules into a 50-ohm load
  • Infant/Child: nominal 50 Joules into a 50-ohm load
  • Protocol: Preconfigured settings; customizable via HeartStart Event Review or HeartStart Configure Software

User Interface

  • Instructions: Voice prompts and visual icons for guidance
  • CPR Coaching: Audio cues for adult and infant/child CPR, with instructions on breathing and chest compressions
  • Controls: Green on/off button, blue i-button, orange shock button, optional infant/child key
  • Indicators: Ready light, caution light, illuminated pads, shock button indicator

Physical Weight & Dimensions

  • Height: 2.4 inches (6 cm)
  • Width: 8.9 inches (22 cm)
  • Depth: 7.1 inches (18 cm)
  • Weight:
  • With battery and pads case: 3.5 lbs (1.5 kg)
  • Without battery or pads case: 2.6 lbs (1.2 kg)

Environmental

  • Sealing:
  • Waterjet proof IPX5 (IEC60529)
  • Dust protected IP5X (IEC60529)
  • Temperature: Operating/Standby: 32°F - 122°F (0°C - 50°C)
  • Altitude: 0 to 15,000 feet
  • Aircraft Compliance: RTCA/DO-160D;1997
  • Crush Resistance: 500 lbs
  • Vibration:
  • Operating: MILSTD 810F Fig.514.5C-17 (random)
  • Standby: MILSTD 810F Fig.514.5C-18 (swept sine)
  • EMI: CISPR II Group I Class B, IEC 61000-4-3, IEC 61000-4-8

Patient Analysis System

  • Patient Analysis: Evaluates ECG for shockable rhythms (VF, certain VT)
  • Sensitivity/Specificity: Meets AAMI DF80 guidelines
  • Shock Advised: Delivers shock when indicated
  • Quick Shock: Shock delivered after CPR pause, typically in 8 seconds
  • Shock-to-Shock Cycle Time: Less than 20 seconds
  • Artifact Detection: Advanced processing minimizes misinterpretation of ECG

Battery

  • Item Number(s): Standard: M5070A - Aviation: 989803139301 (TSO C-142)
  • Type: 9 Volt DC, 4.2 Ah, lithium manganese dioxide, disposable
  • Capacity: Minimum 200 shocks or 4 hours operating time
  • Install-By-Date: At least five years from manufacture
  • Standby Life: Typical four years when installed by the labeled date

SMART Pads II

  • Item Number: 989803139261
  • How Supplied: Disposable pads case with adhesive multifunction pads
  • Active Surface Area: 2.4 in² (80 cm²) each
  • Cable Length: 48 inches (121.9 cm)
  • Use-By-Date: At least two years from manufacture

Infant/Child Key

  • Item Number: 989803139311

Training Pads II

  • Item Number: 989803139271
  • Function: Converts AED to training mode, disabling energy delivery, with 8 training scenarios
  • Daily Automatic Self-Tests: Test internal circuitry and battery capacity
  • Pads Integrity Test: Checks gel moisture of pads
  • Battery Insertion Test: Self-tests upon battery insertion
  • Status Indicator: Blinking green "Ready" light

Data Recording and Transmission

  • Infrared: Wireless transmission to PC or palmOne™ PDA using IrDA protocol
  • HeartStart Event Review Software: Optional data management software for downloading and reviewing data
  • Data Stored: First 15 minutes of ECG and full incident events and analysis decisions
