Philips Heartstart XL Biphasic Defibrillator

Do you have a Philips Heartstart XL Biphasic Defibrillator you want to sell?

We buy used equipment! Learn about selling

Manufactured by: Philips

Category: Defibrillators

Philips Philips Heartstart XL Biphasic Defibrillator
Philips Philips Heartstart XL Biphasic Defibrillator
Philips None - Defibrillators
Philips None - Defibrillators

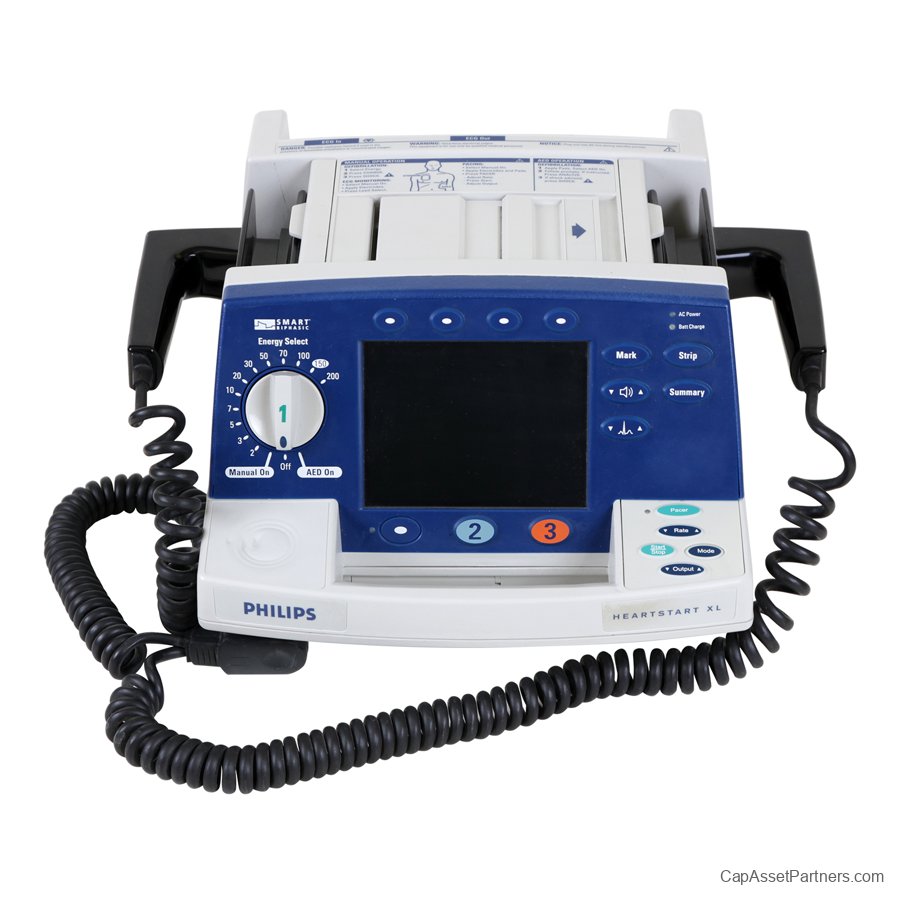

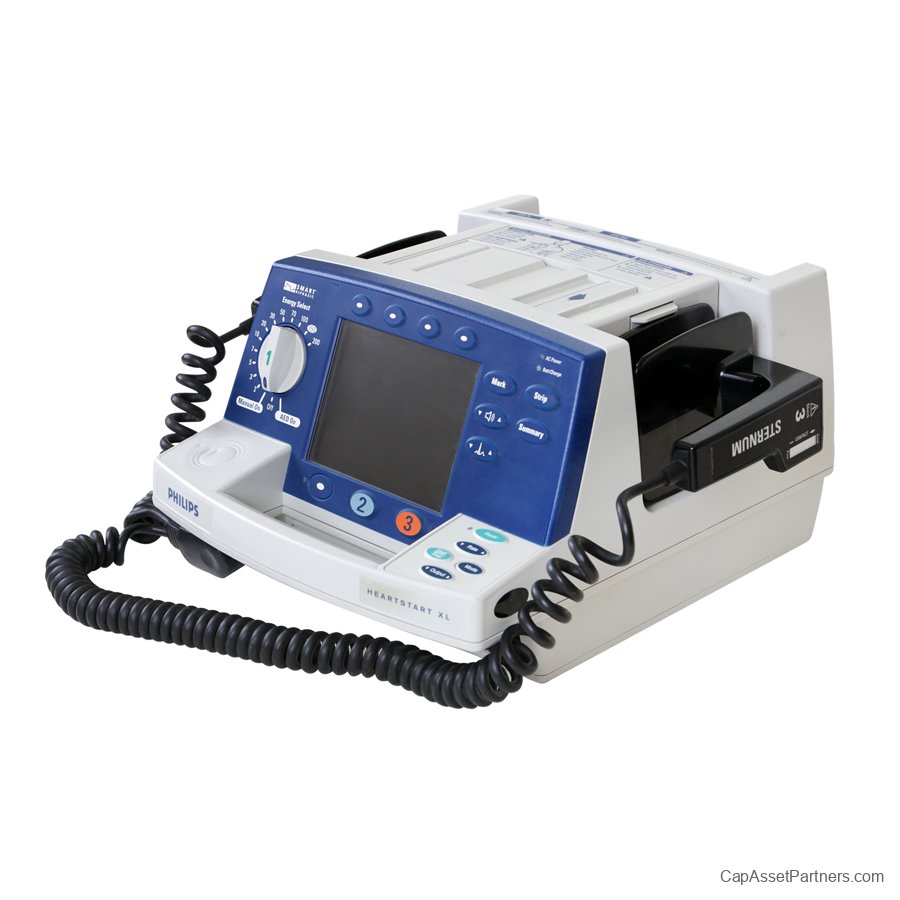

Philips HeartStart XL Biphasic Defibrillator
The Philips HeartStart XL Defibrillator is a highly portable medical device designed to provide effective cardiac care in emergency situations. Weighing just under 14 pounds, this defibrillator can be easily transported throughout a hospital, ensuring that lifesaving defibrillation therapy is always within reach when it's needed most.
Combining manual functionality with advanced automated external defibrillator (AED) capabilities, the HeartStart XL empowers both Advanced Cardiac Life Support (ACLS) and Basic Life Support (BLS) clinicians to deliver critical care promptly. In AED mode, intuitive voice prompts and clear text messages guide BLS users through the defibrillation process, while continuously monitoring and displaying the patient's ECG.
For ACLS responders, the HeartStart XL seamlessly transitions from AED to manual mode, unlocking a suite of advanced therapeutic features. This includes selectable energy settings ranging from 2 to 200 Joules, non-invasive pacing capabilities, optional SpO2 monitoring, and synchronized cardioversion, making it an ideal choice for diverse patient scenarios.
Key Features:
  • Manual and AED operation for versatile use
  • Comprehensive ECG monitoring with pads or electrodes
  • Customizable limits and alarms for patient safety
  • Bright electroluminescent display for easy readability
  • Integrated 50 mm strip chart printer for documentation
  • Data storage with event summary functionality
  • Ability to mark critical events during treatment
  • SMART Biphasic waveform technology for optimal defibrillation outcomes

Investing in the Philips HeartStart XL ensures that your healthcare facility is equipped with a reliable and effective solution for emergency cardiac care, enhancing patient outcomes in critical moments.
Philips HeartStart XL Biphasic Defibrillator Specifications

  • Type: Biphasic Defibrillator
  • Waveform: Biphasic
  • Energy Levels: 150 J, 200 J, 300 J (Selectable)
  • Output Voltage: 2000 V
  • Pacing Modes: Demand, Fixed
  • Pacing Current: 20 mA to 200 mA (Adjustable)
  • Size: 13.8 in x 10.2 in x 4.5 in (350 mm x 260 mm x 115 mm)
  • Weight: 8.6 lbs (3.9 kg)
  • Display: LCD Display, Backlit
  • Battery Type: Rechargeable Lithium-Ion Battery
  • Battery Life: Approximately 2 years or 300 shocks
  • Automated Self-Test: Yes
  • Data Storage: Yes, with capability for up to 40 minutes of ACLS data
  • Input Voltage: 100-240 VAC, 50/60 Hz
  • Environmental Conditions: Operating Temperature: 0°C to 50°C (32°F to 122°F); Storage Temperature: -20°C to 60°C (-4°F to 140°F)
  • Electrical Safety: Class II, Double Insulated
  • Standards Compliance: AHA Guidelines, IEC 60601-1, IEC 60601-2-27

Note: Specifications may vary based on model and configuration.
