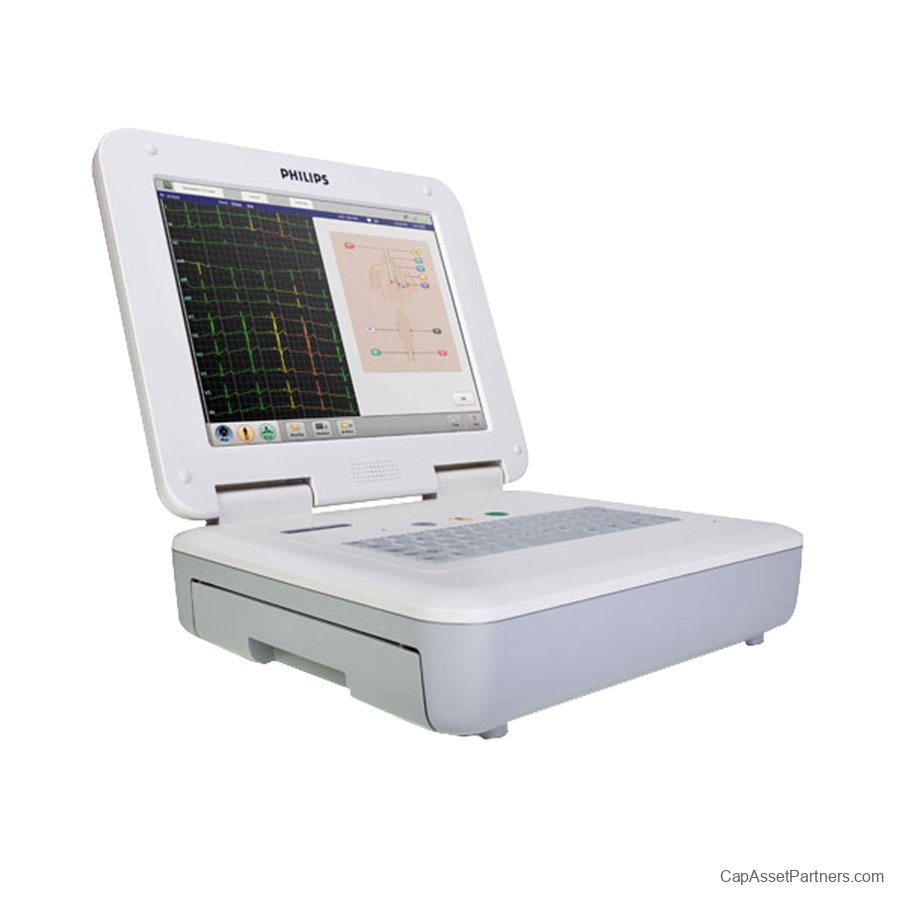

Philips PageWriter TC70 Cardiograph

Philips PageWriter TC70 Cardiograph: Elevating ECG Testing to New Heights
Discover the next generation of cardiography with the Philips PageWriter TC70 Cardiograph, designed to enhance diagnostic ECG testing and optimize workflow efficiency. This advanced cardiograph provides high-quality clinical reports precisely when and where you need them, making it an essential tool for any healthcare setting.
Streamlined Diagnostic Process
The Philips PageWriter TC70 simplifies the ECG testing process with its intuitive 1-2-3 button interface, allowing users to quickly and efficiently perform tests. Its automated ECG report sequence and integrated wireless transfer capabilities ensure seamless data handling and sharing, streamlining your operations.
Unmatched Clinical Performance
Equipped with the Philips DXL 16-Lead ECG Algorithm, the TC70 delivers industry-leading ECG interpretations, enhancing diagnostic accuracy. The cardiograph also features advanced STEMI clinical decision support tools, enabling healthcare professionals to make informed decisions swiftly.
Key Features:

• High-resolution 15” Touchscreen: Offers crisp visuals and easy navigation for enhanced user experience.

• Guided ECG Process: The simple 1-2-3 setup aids in quick and accurate ECG measurements.

• 3-in-1 Trident Lead Wires: Designed to reduce tangling and simplify the connection process.

• Anatomic Patient Interface Module: Ensures correct lead placement for optimal results.

• Event Marking Functionality: Allows for the marking and review of important cardiac events at a later time.

• Integrated 16-Lead Interpretation: Access detailed insights through advanced interpretation capabilities.

• Bedside Access to Previous ECGs: Facilitates immediate comparisons with historical data during patient assessments.

• 802.11 Wi-Fi Capabilities: Offers reliable wireless connectivity for efficient data transfer and cloud integration.

• Automated Reporting and Wireless Transfer: Streamlines the entire ECG reporting process for quicker results.

The Philips PageWriter TC70 Cardiograph is the perfect solution for modern healthcare facilities looking to enhance their cardiology services with advanced technology and user-friendly design. Elevate your ECG testing capabilities today!

# Philips PageWriter TC70 Cardiograph Specifications

## ECG Functions

• Simultaneous Lead Acquisition

• Full Disclosure

• Timed ECG

• Report Storage/Transfer

• Up to 18 leads

• Twenty minute history of all 16 leads and complete ECG report of any 10 seconds

• Support for pharma stress protocols

• Full fidelity at 500 Hz of all 10 sec for up to 16 leads in XML format (schema published)

## Philips DXL 18-Lead ECG Algorithm

• Interpretive statements

• LeadCheck

• Borderline Statement Suppression

• Reasons

• Nomenclature

• >600 interpretive statements with integrated pediatric analysis

• Lead placement software detects 20 different lead reversals

• Three configurable settings

• Selectable explanations of all interpretive statements

• Conforms to 2007 AHA/ACC recommendations

## STEMI Diagnostic Aids

• Graphical ST Vector

• Critical Values

• Two polar ST Maps in frontal and transverse planes

• Highlights 4 conditions requiring immediate clinical attention

## Networked Features (requires IntelliSpace ECG)

• Central Time Management

• Time can be synchronized to a networked time master

• Configurable rules to retrieve cardiograph-specific worklists

## Signal Quality Indicators

• Leads Off Advisory

• Lead Color

• LeadCheck

• Heart Rate

• Print Preview

• Anatomical lead map displays the location and label of any loose or disconnected leads/electrodes

• Four colors to indicate levels of waveform quality

• Continuous display of patient heart rate

• Full screen preview of complete 16 lead report prior to printing

## Training

• Application Help

• Integrated graphical HELP screens for primary functions

• Computerized, interactive, dynamic animation covering all major clinical functionalities

## User Interface

• Touchscreen: 1-2-3 operation/context sensitive application/5-wire resistive touchscreen

• Keyboard: 65 button standard full alphanumeric keyboard that supports special characters

• Display: 15 inch TFT

## Signal Processing

• Patient Interface Module: Remote microprocessor-controlled digital module provides 5 µV resolution

## Pre-Processing Filters

• AC Noise: 50 to 60 Hz

• Signal Processing: Artifact Rejection and Baseline Wander

## Presentation Filters

• 10 sec Reports

• High Pass: 0.05/0.15/0.5 Hz

• Low Pass: 40/100/150 Hz

## Presentation Filters

• Rhythm

• High Pass: 0.05/0.15 Hz

• Low Pass: 40/100/150 Hz

## Electrical

• Battery capacity: Typically 50 ECGs on a single charge

• Battery recharge: 5 hours to full capacity

• AC power: 100-240 VAC at 50/60 Hz

• Power consumption: 75 W max

## Mechanical

• Dimensions: 40 x 33 x 16 cm (15.7 x 13 x 6.3 in)

• Weight: 13 kg (28 lb)

## Environmental

• Operating Conditions:

• Temperature: 10°C to 40°C (50°F to 104°F)

• Humidity: 15% to 80% relative humidity

• Altitude: Up to 4,550 m (15,000 ft)

## Safety and Performance

• International Standards:

• IEC 60601-1: 1988 +A1:1991 +A2:1995 (General Requirement for Safety)

• IEC 60601-2-51: 2003 (Particular Requirements for Safety)

• UL 2601-1: 2003 (US General Requirements for Safety)

• CAN/CSA-C22.2 No. 601-1-M90 (1994)

• AAMI EC11 (1991) (R: 2001): Diagnostic Electrocardiography Devices
