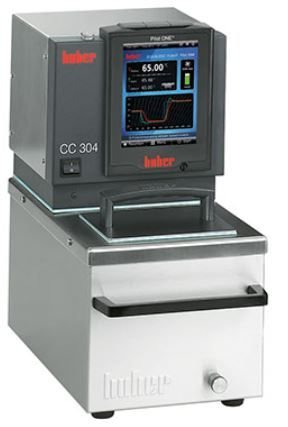

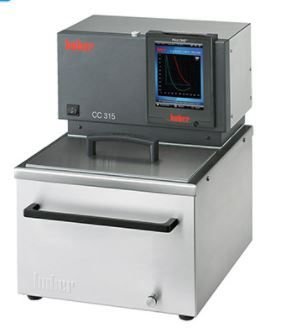

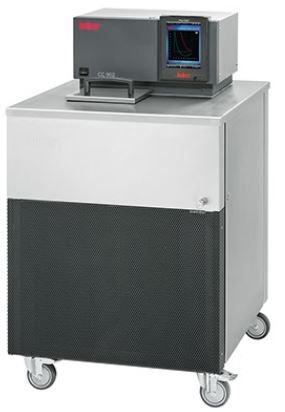

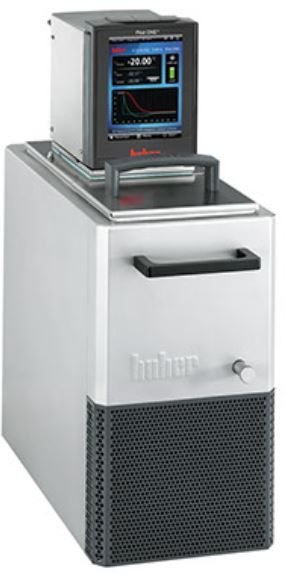

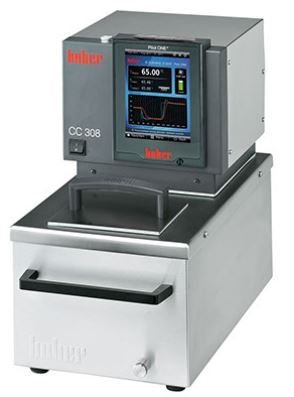

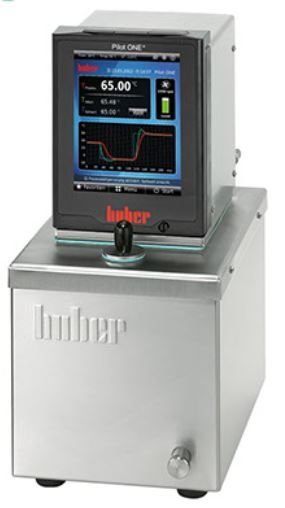

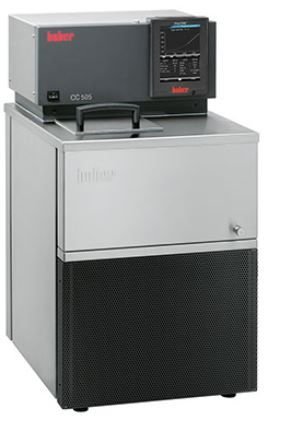

Pilot ONE Cooling and Heating Bath Circulators
The Pilot ONE Cooling and Heating Bath Circulators are the epitome of precision and user-friendly control in temperature management. Designed for medical, laboratory, and research applications, these circulators feature an innovative multi-touch controller that enhances usability with its vibrant 5.7" touchscreen interface. Everything from operating parameters to temperature readings is displayed clearly, allowing for effortless monitoring and adjustments.
Key Features:
- Intuitive Touchscreen Interface: Navigate effortlessly through the system with graphic functions and a streamlined menu, akin to smartphone technology.
- Favorites Menu: Easily access frequently used settings with one-click operation, streamlining workflow efficiency.
- Integrated Connectivity: Equipped with USB and Ethernet ports, the unit allows for PC connection and network integration for remote control and data transmission.
- High-Performance Pump: The powerful pressure and suction pump ensures stable fluid movements, which are critical for effective temperature control.
- Advanced Programming: Features calendar and clock functions to schedule temperature control operations effortlessly.
- Enhanced Accuracy: Comes with 2-point calibration for precise temperature settings, ensuring reliability for all applications.
- Multi-Interface Support: RS232 interface and Pt100 connection provide versatility in connectivity options.
Specifications:
| SKU |
Temperature Stability |
Max Pressure |
Max Suction |
Power Requirement |
| 2003.0002.01 |
0.02°C |
0.7 bar |
0.4 bar |
115V, 50/60 Hz |
| 2005.0002.01 |
0.02°C |
0.7 bar |
0.4 bar |
115V, 50/60 Hz |
| 2006.0003.01 |
0.02°C |
0.7 bar |
0.4 bar |
115V, 50/60 Hz |
| 2007.0001.01 |
0.02°C |
0.7 bar |
0.4 bar |
115V, 50/60 Hz |
| 2008.0006.01 |
0.02°C |
0.7 bar |
0.4 bar |
120V, 50/60 Hz |
Additional Information:
| SKU |
Water Bath Dimensions |
Width |
Depth |
Height |
Safety |
Controller |
| 2003.0002.01 |
150 mm D |
7.01 in |
10.24 in |
13.98 in |
III/FL |
Pilot ONE |
| 2005.0002.01 |
155 mm D |
8.27 in |
13.19 in |
15.43 in |
III/FL |
Pilot ONE |
| 2006.0003.01 |
155 mm D |
9.53 in |
15.91 in |
15.43 in |
III/FL |
Pilot ONE |
| 2007.0001.01 |
200 mm D |
13.19 in |
15.04 in |
17.05 in |
III/FL |
Pilot ONE |
| 2008.0006.01 |
150 mm D |
8.27 in |
15.75 in |
21.50 in |
III/FL |
Pilot ONE |
