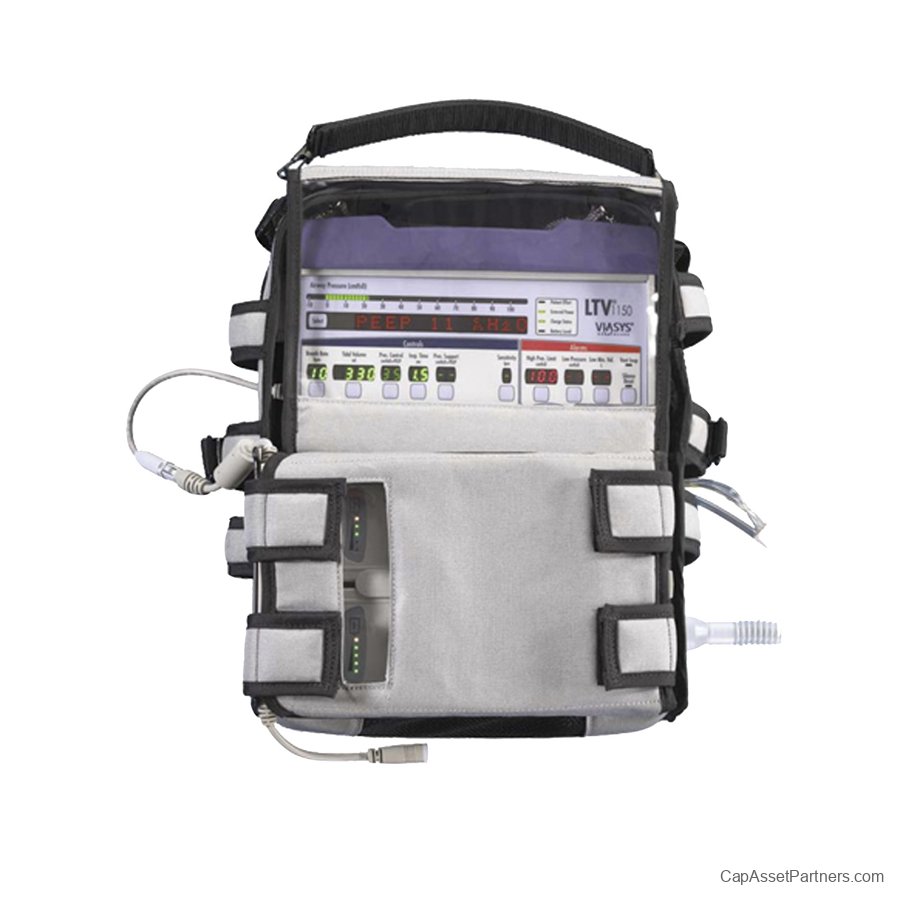

Pulmonetic LTV-1150 Ventilator

Pulmonetic LTV-1150 Ventilator
The Pulmonetic LTV-1150 Ventilator is a versatile solution designed to enhance patient care in both hospital and post-acute care settings. This innovative device allows patients who are receiving ventilation support on the LTV-1200 to transition home seamlessly, as it utilizes the same settings. With an advanced feature set that includes internal PEEP and Spontaneous Breathing Trials (SBT), the LTV-1150 takes inspiration from the well-regarded LTV-1200 while featuring a modern design that remains lightweight and compact.
Key Features of the LTV-1150 Ventilator:

• Suitable for patients weighing 5 kg and up

• Multiple presets to accommodate Infant, Pediatric, and Adult patients

• User-friendly interface optimized for ventilator presets, derived from the LTV-1200

• Easy identification of ventilation parameters with illuminated active controls and alarm settings

• Compensated internal PEEP for improved breath support

• Capabilities for Spontaneous Breathing Trials to assess readiness for extubation

• Low flow oxygen connection for efficient use with concentrators or flow meters

• Noninvasive Positive Pressure Ventilation (NPPV) option for patient comfort

The Pulmonetic LTV-1150 Ventilator combines reliable functionality with a patient-friendly design, making it the ideal choice for both healthcare providers and patients looking for efficient ventilation support.

Pulmonetic LTV-1150 Ventilator Specifications

• Type: Portable Critical Care Ventilator

• Modes of Ventilation:

• Continuous Positive Airway Pressure (CPAP)

• Synchronized Intermittent Mandatory Ventilation (SIMV)

• Volume Control (VC)

• Pressure Control (PC)

• Ventilation Parameters:

• Tidal Volume: 50 - 1500 mL (2 - 50 oz)

• Respiratory Rate: 1 - 60 breaths/min

• Inspiratory Time: 0.3 - 5.0 seconds

• Peak Pressure: 5 - 60 cm H2O (0.7 - 87.0 psi)

• PEEP: 0 - 20 cm H2O (0 - 29.0 psi)

• Flow Rate:

• 0 - 180 L/min (0 - 63.6 CFM)

• Oxygen Concentration:

• Adjustable: 21% - 100% FiO2

• Battery Life:

• Approximately 8 hours on a fully charged battery

• Weight:

• 6.5 lbs (2.95 kg)

• Dimensions:

• 12.5 in x 11.5 in x 5.5 in (31.8 cm x 29.2 cm x 14 cm)

• Power Source:

• AC Input: 100-240 V, 50/60 Hz

• Battery: Rechargeable Lithium-Ion

• Display:

• LCD Screen

• Alarms:

• Visual and audible alarms for:

• Low/High Airway Pressure

• Low/High Tidal Volume

• System Malfunction

• Low Battery

• Compatibility:

• Adult and pediatric use

• Certification:

• CE Mark, FDA Approved

This specification provides detailed parameters for the Pulmonetic LTV-1150 Ventilator, suitable for medical professionals and providers.
