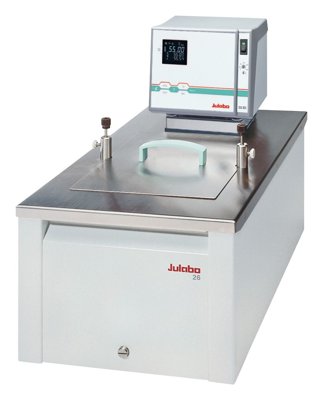

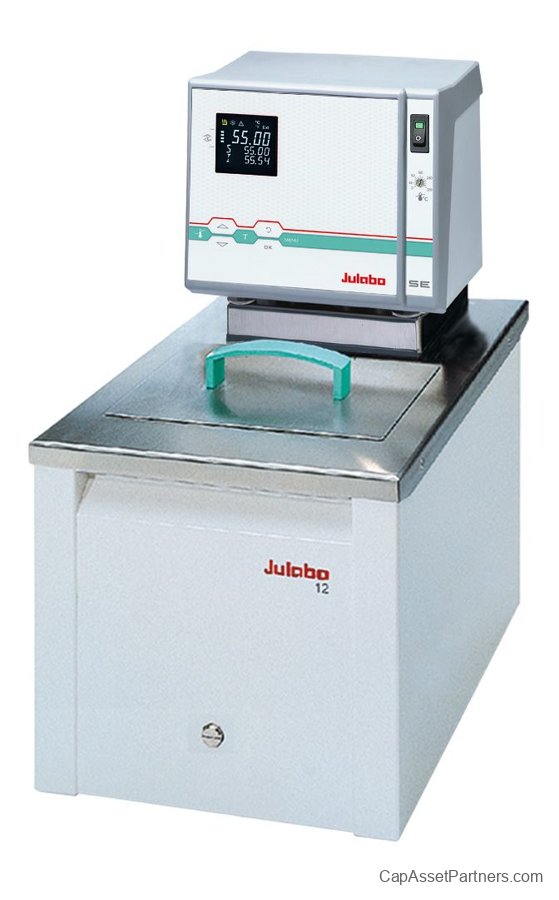

SE Series Heating Circulators
Experience superior temperature control with the SE Series Heating Circulators, designed for both internal and external temperature applications. These advanced heating circulators come equipped with robust stainless steel bath tanks, offering increased capacities to accommodate larger external systems and open processes. The versatility of the SE Series allows simultaneous temperature applications for smaller objects directly within the internal bath.
Key Features
- VFD Comfort Display: High-resolution display for easy navigation and setpoint adjustments.
- Intelligent Cascade Control (ICC): Offers self-optimizing temperature control for consistent performance.
- 3-Point Calibration (ATC3): Ensure precise temperature measurements with multiple calibration points.
- External Sensor Connection: Allows Pt100 sensor integration for enhanced measurement and control.
- SMART Pump: Features electronically adjustable pump stages to fit your application needs.
- Early Warning System: Automatic alerts for low liquid levels to prevent operational interruptions.
- High Temperature Cut-Out: Adjustable safety feature displayed clearly for user convenience.
- RS232 Interface: Facilitates online communication for convenient data logging and control.
- Integrated Programmer: 10 programmable steps for flexible temperature management.
Specifications
| SKU |
Temperature Range |
Temperature Stability |
Filling Volume |
Heating Capacity |
Flow Rate |
Flow Pressure |
Water Bath Dimensions |
Voltage |
Heaters |
| 9252526.33 |
20°C to 300°C (68°F to 572°F) |
± 0.01 °C |
26 L |
3 kW |
22 to 26 L/Min |
5.8 to 10.2 psi |
8.7 x 11.8 x 7.9 in |
230V/50-60Hz |
3 kW |
| 9252512.33 |
20°C to 300°C (68°F to 572°F) |
± 0.01 °C |
12 L |
3 kW |
22 to 26 L/Min |
5.8 to 10.2 psi |
8.7 x 5.9 x 7.9 in |
230V/50-60Hz |
3 kW |
| 9252506.33 |
20°C to 300°C (68°F to 572°F) |
± 0.01 °C |
6 L |
3 kW |
22 to 26 L/Min |
5.8 to 10.2 psi |
5.1 x 5.9 x 7.9 in |
230V/50-60Hz |
3 kW |
Additional Information
| SKU |
Shipping Weight |
Shipping Dimensions |
Controller |
Resolution |
Temperature Display |
Dimensions |
| 9252526.33 |
140 lb |
48 x 24 x 24 in |
ICC with TCF and absolute temperature calibration |
0.1 °C |
VFD |
14.2 x 24 x 18.5 in |
| 9252512.33 |
90 lb |
26 x 26 x 26 in |
ICC with TCF and absolute temperature calibration |
0.1 °C |
VFD |
11.8 x 11.8 x 7.9 in |
| 9252506.33 |
90 lb |
26 x 26 x 26 in |
ICC with TCF and absolute temperature calibration |
0.1 °C |
VFD |
8.3 x 11.8 x 7.9 in |
