Siemens 900C Respiratory Ventilator

Siemens 900C Respiratory Ventilator

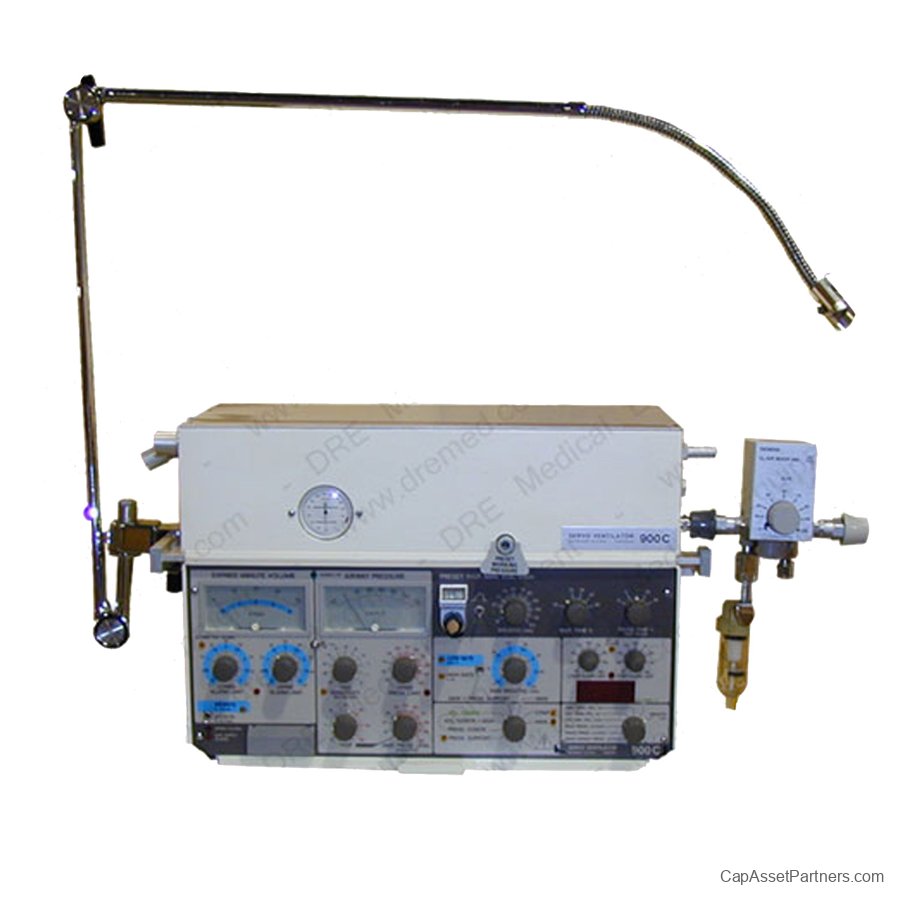

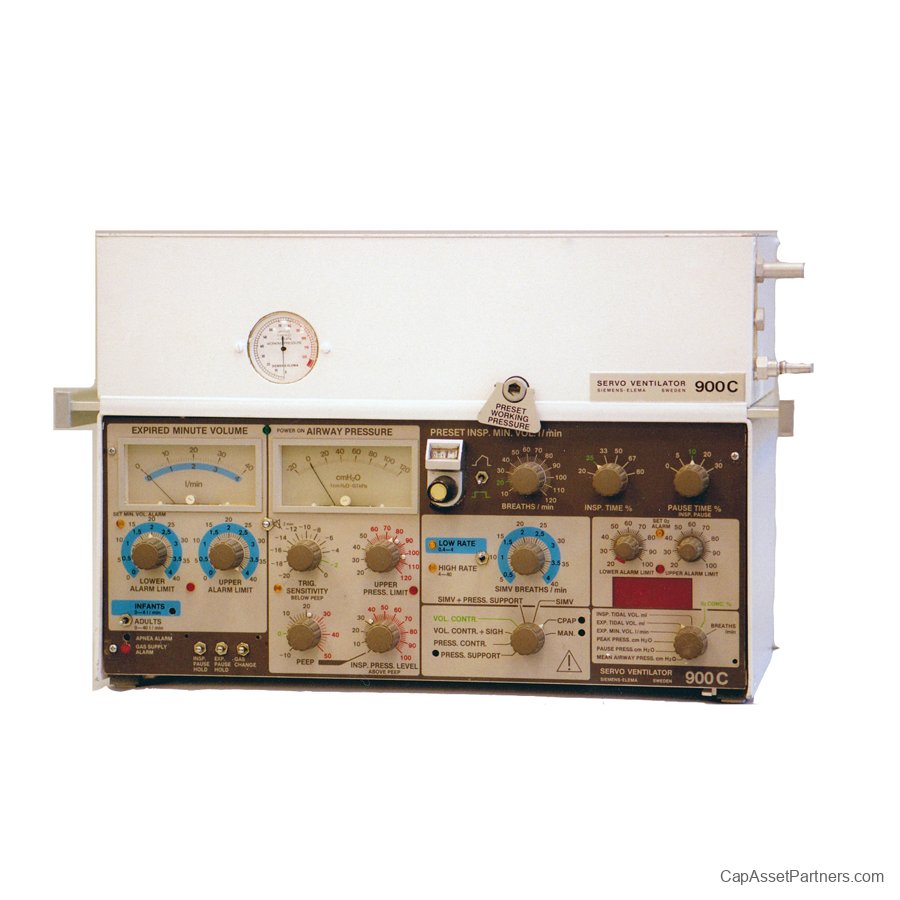

The Siemens 900C Respiratory Ventilator is a versatile and advanced "Servo" ventilator designed to meet the needs of adult, pediatric, and infant patients. This reliable unit features built-in electronic PEEP and offers eight different ventilation modes, making it suitable for a wide range of clinical applications including intensive care, anesthesia, and patient transport.
Its user-friendly interface and robust design ensure that healthcare professionals can provide optimal respiratory support in critical situations.

Optional Accessories

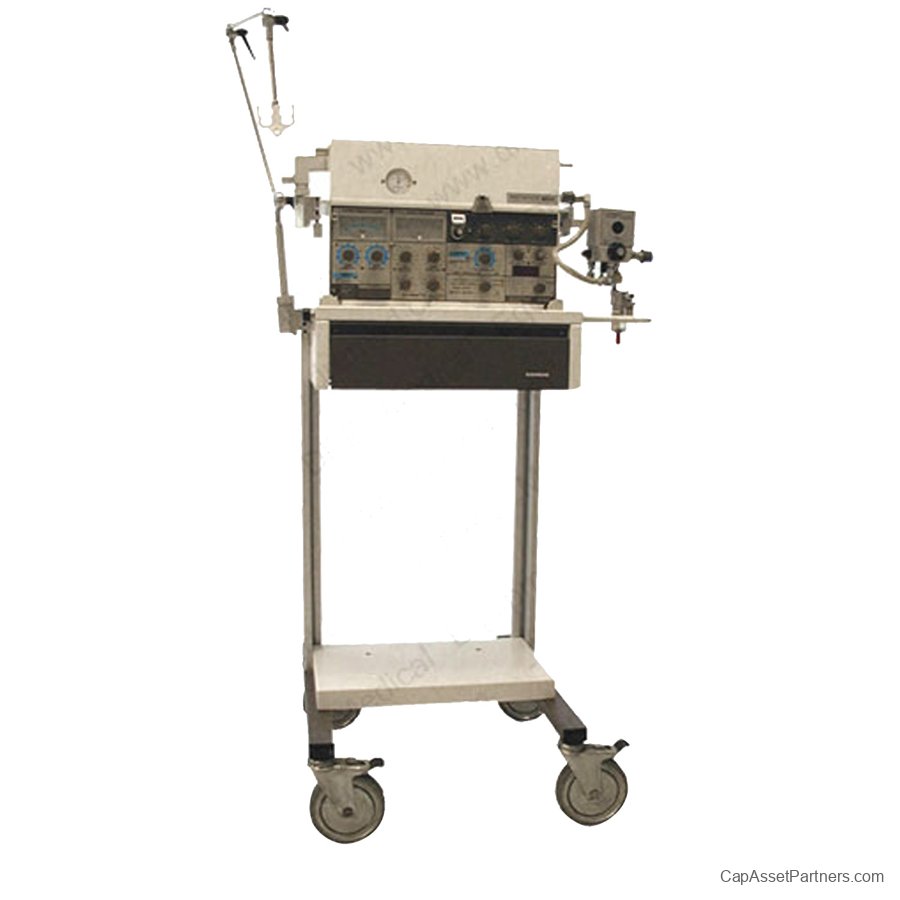

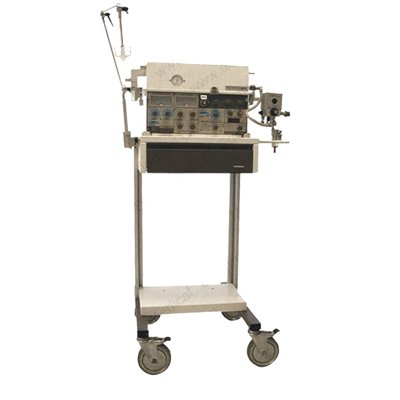

Enhance the functionality of your ventilator with available optional accessories, including a humidifier, support arm, and cart, allowing for greater flexibility and efficiency in patient care.
Make the Siemens 900C your choice for high-quality respiratory support equipment, designed to adapt to various medical environments with ease.

Siemens 900C Respiratory Ventilator Specifications

Physical Weight & Dimensions:

• Dimensions: 19.7 × 9.1 × 12.6 in (50 × 23 × 32 cm)

• Weight: 42 lbs (19 kg)

Control Ranges:

• Working Pressure: Up to 120 cm H2O

• Modes: Volume controlled, pressure controlled, pressure support, synchronized intermittent mandatory ventilation (SIMV), SIMV+ pressure support, continuous positive airway pressure, manual ventilation

• Present Inspiratory Minute Volume: 0.5 - 40 L/min, with sufficient working pressure

• Flow Pattern: Constant, accelerating or decelerating

• Respiratory Rate: 5-120 breaths/min

• Inspiratory Time: 20-80% of respiratory cycle

• Pause Time: 0-30% of respiratory cycle

• PEEP: 0-50 cm H2O

• Upper Limit: 15-120 cm H2O

• Trigger Sensitivity: -20-0 cm H2O (below PEEP)

• SIMV Rate: High rate (4-40 SIMV breaths/min), Low rate (0.4-4 SIMV breaths/min)

• Sight: Double tidal volume possible every 100 breaths

• Compressed Volume: 0.075 L (internal)

Monitoring:

• Analog Presentation:

• Airway pressure: -20 - 120 cm H2O

• Expired Minute Volume: Adults 0-40 L/min, Infants 0-4 L/min

• Digital Presentations:

• Respiratory Rate: 5-120 breaths/min

• O2 Concentration: 20-100% by volume

• Inspired Tidal Volume: 0-1999 mL

• Expired Tidal Volume: 0-1999 mL

• Expired Minute Volume: Adults 0-40 L/min, Infants 0-4 L/min

• Peak Pressure: 0-120 cm H2O

• Pause Pressure: 0-120 cm H2O

• Mean Airway Pressure: 0-120 cm H2O

Gas & Power Supply:

• Must fulfill specifications for medical gases

• Gas Consumption: Approximately equal to preset inspiratory minute volume or equal to flow meter setting

• Gas Supply via High Pressure Inlet: From central gas supply, compressor or gas cylinder

• Electronic Gas Supply Unit Inlet Pressure: 2.5-5 bar (250-500 kPa; 35-70 psi)

• Other Gas Supply Inlet Pressure: 2.5-7 bar (250-700 kPa; 35-100 psi)

• Gas Supply via Low Pressure Inlet: Via flow meters

• Power Supply: 100, 110, 120, 220, 240 V, 50 or 60 Hz

• Power Consumption: Approximately 40 W

Alarms & Indicators:

• Push Button: Audible signals, muted for 2 min maximum

• Alarms: Gas supply alarm, apnea alarm, expired minute volume, O2 concentration, upper pressure limit, power failure

• Indicators: Set minute volume alarm, set O2 alarm, pressure support, CPAP, MAN SIMV high/low rate, expired minute volume infants, patient trigger

Special Functions:

• Inspiratory pause hold, expiratory pause hold gas exchange.
