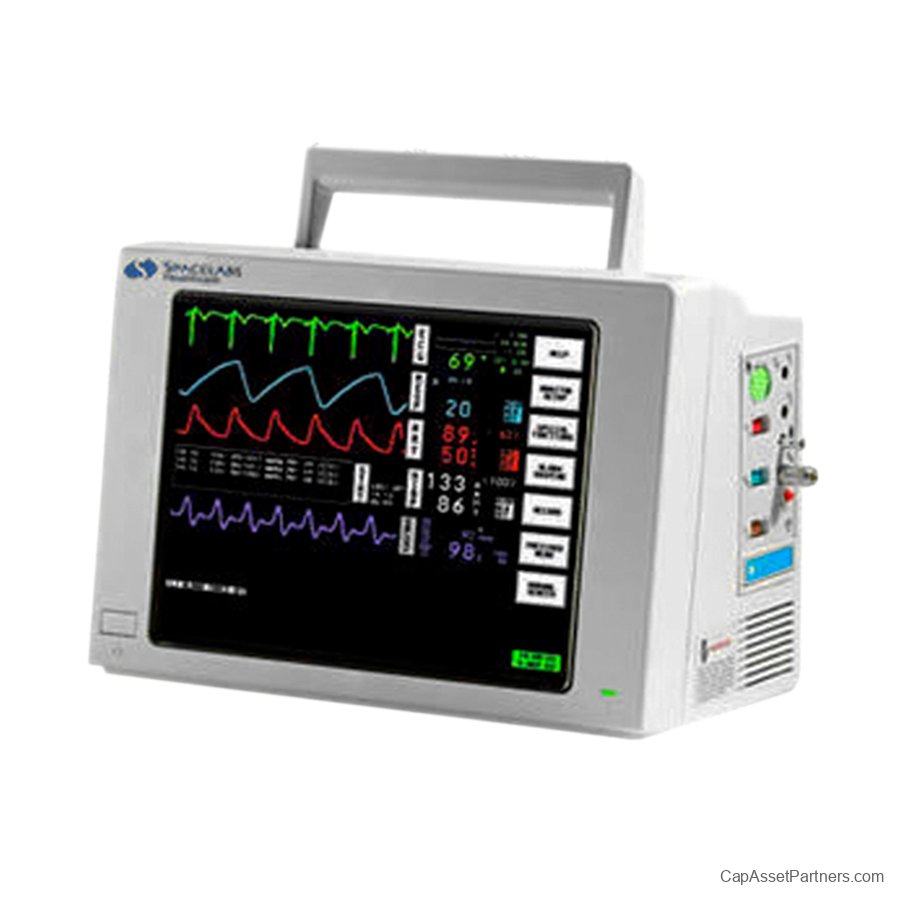

Ultraview 1050 Monitor 90369: Advanced Patient Monitoring Made Easy
The Spacelabs Ultraview 1050 Monitor 90369 is designed for flexibility and reliability in a variety of medical environments. This lightweight and compact monitor ensures high portability, making it ideal for transport between patient rooms or departments.
Featuring an impressive 10.4-inch TFT color display, the Ultraview 1050 offers a 140° viewing angle, ensuring critical patient information is visible from multiple positions. Its intuitive touchscreen controls mirror those found on other Ultraview Care Network™ and PCMS™ monitors, providing ease of use for healthcare professionals.
The monitor is compatible with the entire line of Ultraview Care Network and PCMS modules, allowing seamless integration into existing systems. The innovative Data Shuttle® option enables the transfer of up to 24 hours of patient data to other monitors within the network, enhancing continuity of care.
With an advanced power management system, the Ultraview 1050 maximizes battery performance during transportation, complete with a convenient battery "fuel-gauge." For enhanced connectivity, optional interactive bed-to-bed Ethernet communication and instant “Quicknet” 10BaseT Ethernet connections are available, alongside optional wireless Ethernet capabilities that transmit vital signs and waveforms at 2.4 GHz.
Additional features include an optional built-in 2-channel recorder, as well as support for mainstream EtCO2, O2, and Min CO2 monitoring. With the Expanded Network feature, support for up to 250 nodes on a network ensures that your monitoring needs can scale with your facility's requirements.
Choose the Spacelabs Ultraview 1050 Monitor 90369 for a versatile and efficient solution to patient monitoring in today's demanding healthcare environments.
Spacelabs 90369 Ultraview Specifications
Physical Weight & Dimensions
- Height: 8.3 inches (21.1 cm)
- Depth: 6.2 inches (15.8 cm)
- Width: 11.7 inches (29.7 cm)
- Weight: 10.0 lbs (4.6 kg)
General
- Touchscreen: All controls except power (ON/OFF) are on-screen touchkeys; touch is sensed by infrared optical devices; optional controls include mouse and keyboard
- Waveform Capacity: Supports four, five, or six waveforms
- Module Capacity: Accepts one Ultraview or PCMS module internally, supports up to two additional modules using 90499 module housing
- Parameter Capacity: 18 parameters using Ultraview and PCMS modules, plus Flexport® interfaces
- Trends: 24 hours of trend data display
- Graphic: Options for 1-, 2-, 6-, 12-, or 24-hour segments; data stored in 1-minute resolutions (6-hour segment default)
- Tabular: Time increments of 1, 5, 10, 15, or 30 minutes; options for 1, 1.5, or 3 hours (1-hour default)
- Remote View/Alarm Watch: Supports waveform display from a remote bedside or telemetry patient on the Ultraview network for up to 32 selected beds; an Ultraview bedside monitor can be remotely viewed by up to 16 network devices simultaneously (e.g., monitors, workstations)
Electrical
- Mains Power: Line voltage 100-240 VAC; Frequency 50-60 Hz
- Batteries: Compatible with sealed-lead acid (SLA) and Spacelabs Medical nickel metal hydride (NiMH); one or two 12 V (2.30 Ah SLA or 2.45 Ah NiMH) batteries provide:
- Up to 2.0 hours of operation (TFT display) for SLA (300 charge/discharge cycles)
- Up to 2.5 hours of operation (TFT display) for NiMH (600 charge/discharge cycles)
- Charging time: 1.5 hours to 100% capacity with AC connected and mains switch OFF; 3 hours required with mains switch ON
- Power Fail Backup: Maintains patient data for a minimum of 3 minutes
- Isolation: Chassis leakage current not greater than 300 µA (complies with AAMI, UL2601-1, CSA #601.1, and IEC 601-1 standards)
