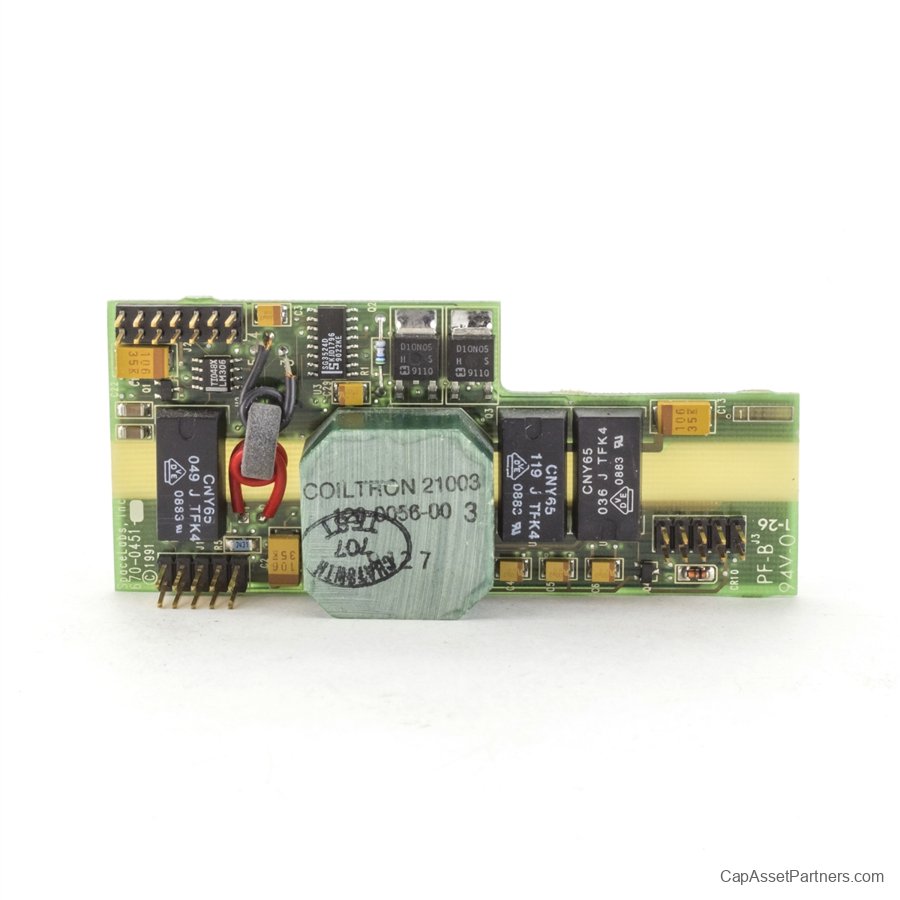

Spacelabs 90470 Multi Parameter Module Isolation Circuit Board Assembly PCBA

Introducing the Spacelabs 90470 Multi Parameter Module Isolation Circuit Board Assembly PCBA, a crucial component designed for seamless integration with Spacelabs 90470 Multi Parameter Modules. This high-quality circuit board assembly ensures optimal performance and reliability, having undergone a rigorous testing and cleaning process by our skilled biomedical technicians to ensure that it meets exacting manufacturer specifications.
This isolation PCBA plays an essential role in maintaining the integrity of your medical monitoring equipment, facilitating accurate data transmission and ensuring patient safety. With OEM part number 670-0451-02, this module is an ideal solution for healthcare facilities seeking to enhance their monitoring capabilities.
Elevate your medical equipment's performance with the Spacelabs 90470 Multi Parameter Module Isolation Circuit Board Assembly, a dependable component engineered for precision in the healthcare environment.

Spacelabs 90470 Multi Parameter Module Isolation Circuit Board Assembly PCBA Specifications:

• Type: Multi-Parameter Monitoring Module

• Input Voltage: 12 VDC (±10%)

• Current Consumption: 150 mA (max)

• Dimensions:

• Length: 6.0 in (152.4 mm)

• Width: 4.0 in (101.6 mm)

• Height: 1.0 in (25.4 mm)

• Weight: 0.5 lbs (0.23 kg)

• Isolation Voltage: 1500 VDC

• Operating Temperature Range: 0°C to 50°C (32°F to 122°F)

• Humidity Range: 10% to 90% non-condensing

• Communication Ports:

• RS-232

• I2C

• Signal Inputs:

• ECG

• SpO2

• NIBP

• CO2 (optional)

• Certification: CE, FDA

• Material: FR-4 PCB, conformal coating

Note: Please verify specific implementations and configurations, as specifications may vary based on model revisions or application requirements.
