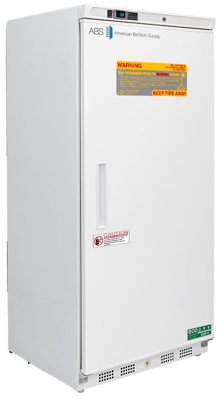

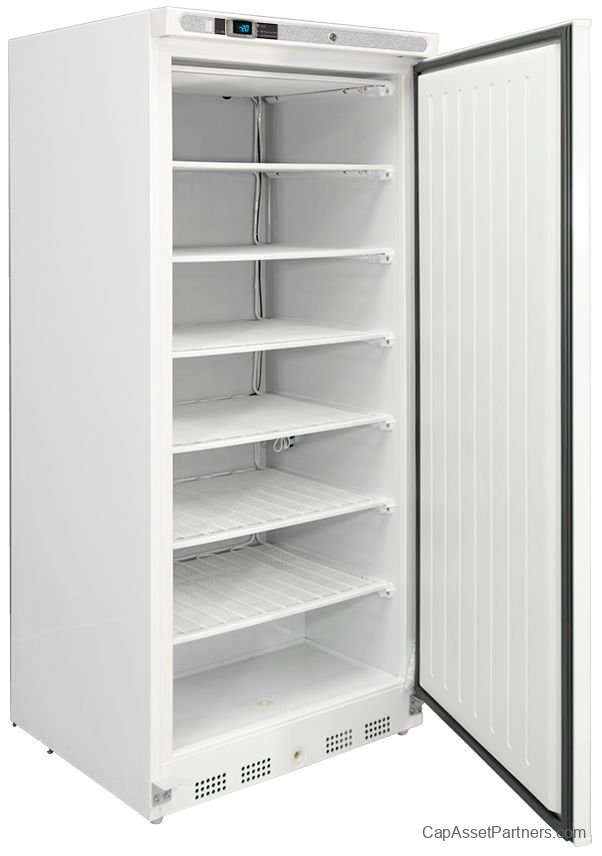

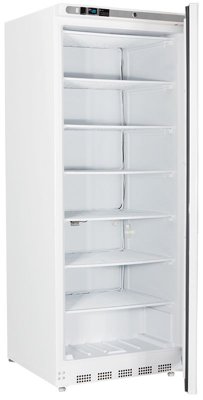

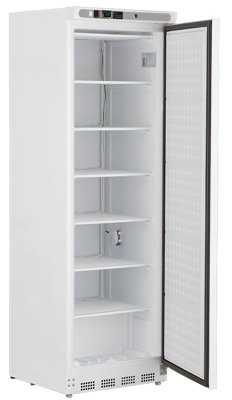

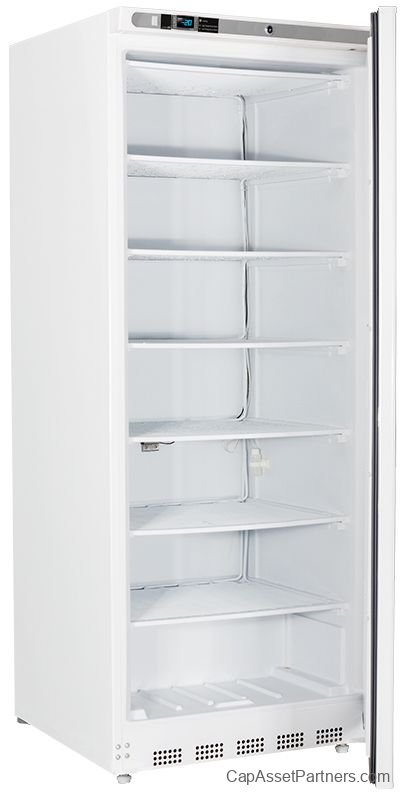

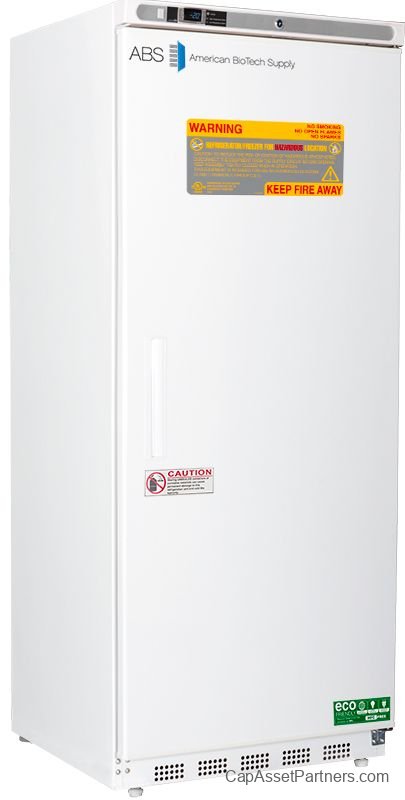

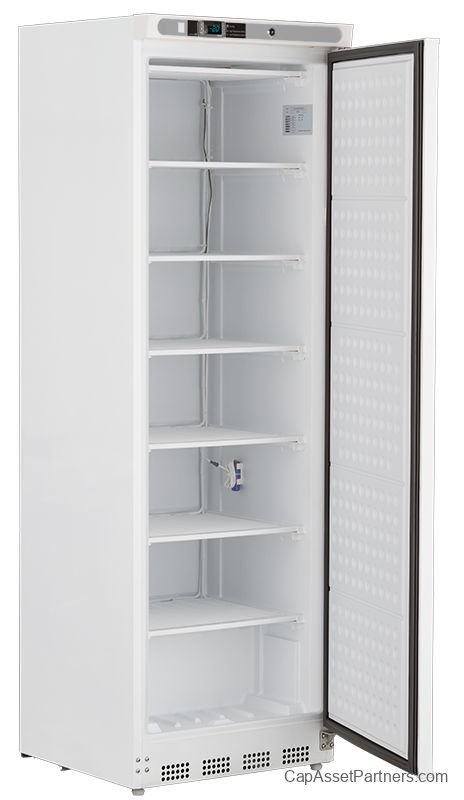

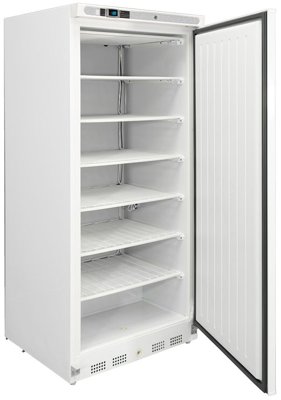

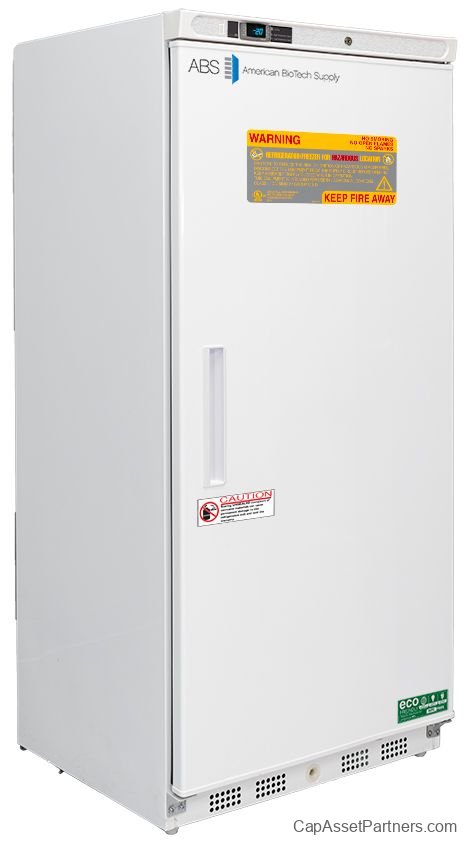

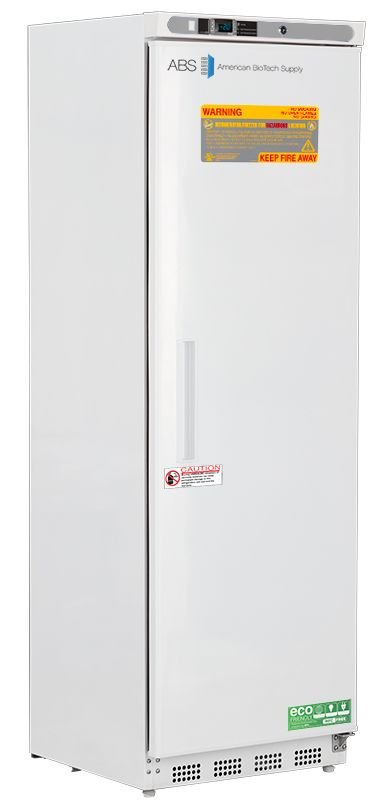

Introducing our advanced Microprocessor Controller Hazardous Location Freezers, meticulously designed to meet NFPA and OSHA guidelines for Hazardous Locations, specifically Class 1, Division II, Groups C and D. These specialized freezers are ideal for environments where volatile or explosive conditions may arise, ensuring both safety and reliability.
Key Features:
- Precision microprocessor temperature controller with a clear, digital temperature display. Switchable between °C and °F for versatile monitoring.
- Standard digital temperature display for easy readability.
- Audible and visual alarms for high and low temperatures, ensuring immediate awareness of any discrepancies.
- Cabinet insulated with EPA compliant, high-density urethane foam, promoting superior energy efficiency.
- Enhanced magnetic door gasket ensures a positive seal, reducing energy loss.
- Utilizes natural hydrocarbon refrigerant (R600A) for eco-friendliness and effective cooling.
- Sturdy white powder-coated steel construction ensures durability and resistance to corrosion.
- Heavy-duty door handle designed for secure access.
- Keyed door lock offers added security for sensitive materials.
- Leveling legs provide stability on uneven surfaces.
- Incorporates ATEX and non-sparking components for enhanced safety in hazardous environments.
Certifications:
- ETL, C-ETL listed for confidence in safety and performance.
- Certified to UL471 standard, ensuring compliance with industry benchmarks.
- Safety certification for hydrocarbon refrigerants, emphasizing environmental responsibility.
Device Specifications:
| SKU |
Door Type |
Operating Temperature Range |
Certification |
Hinge |
| ABT-HC-EFP-14 |
Solid Swing Door |
-15°C to -25°C |
ETL |
Right |
| ABT-HC-EFP-17 |
Solid Swing Door |
-15°C to -25°C |
ETL |
Right |
| ABT-HC-EFP-20 |
Solid Swing Door |
-15°C to -25°C |
ETL |
Right |
Additional Information:
| SKU |
Dimensions |
Electrical Information |
Refrigerant |
Controller |
| ABT-HC-EFP-14 |
23.63 in x 24.38 in x 73.0 in |
115V, 60Hz, 3A |
R290 |
Microprocessor |
| ABT-HC-EFP-17 |
30.75 in x 28.63 in x 67.75 in |
115V, 60Hz, 5.5A |
R290 |
Microprocessor |
| ABT-HC-EFP-20 |
30.75 in x 29.0 in x 74.63 in |
115V, 60Hz, 5.5A |
R290 |
Microprocessor |
Note: These units do not come equipped with a plug and must be hardwired into a conduit connected to a 120 VAC power source. Regular manual defrosting is necessary to avert severe ice accumulation. To ensure optimal ventilation, maintain 4” of clearance around the unit’s back and sides. Improper installation will void any warranty and lead to potential temperature maintenance problems, overheating, or equipment failure.
