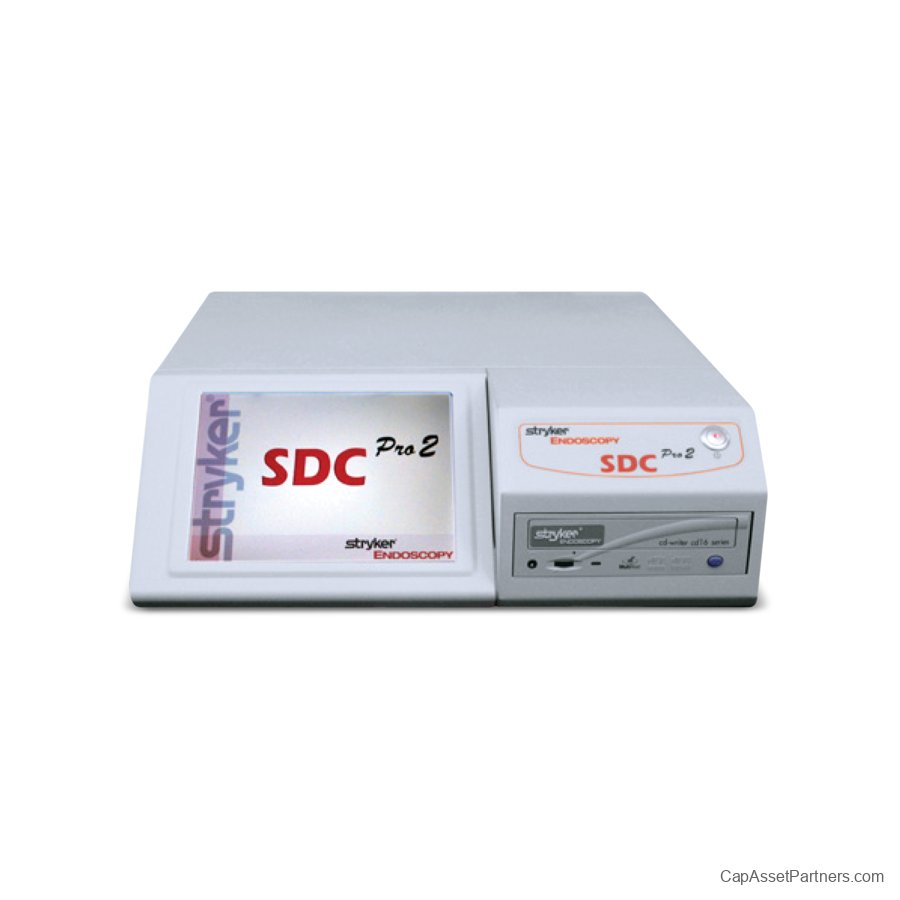

Stryker SDC Pro 2 DVD Digital Capture System

Introducing the Stryker SDC Pro 2 DVD Digital Capture System

Sophisticated Digital Documentation Made Easy

Store High-Quality Digital Videos and Images with Ease

Discover seamless integration and state-of-the-art technology with the Stryker SDC Pro 2 DVD Digital Capture System. Designed to enhance your operating room workflow, this advanced system connects effortlessly to existing video monitors and endoscopy setups, ensuring a smooth user experience.
With its intuitive touchscreen, the SDC Pro 2 DVD allows for easy navigation of menu selections and data entry, all from the sterile field. Control digital video operations via a wireless remote control or the camera head buttons, providing the flexibility your surgical team needs during procedures.
The Stryker SDC Pro 2 DVD also includes an infrared remote control and a user-friendly camera button interface, making it simple to capture and store images in a format compatible with most PCs and software. Elevate your medical documentation capabilities with the Stryker SDC Pro 2 DVD—a reliable solution for high-quality imaging and video recording in any surgical environment.
Optimize your documentation processes and enhance patient care with this cutting-edge digital capture system.

Stryker SDC Pro 2 DVD Digital Capture System Specifications

General

• System Type: Real time, MPEG 1 or 2 compression engine with full IBP encoding

• Video Inputs: S-Video, Composite, SDI; DVI & XGA (DVD system only)

• Video Outputs: S-Video, Composite, SDI; DVI & XGA (DVD system only)

• Audio Input: Stereo

• Resolution: 1024 x 768 or 640 x 480 (with HiRes OFF)

• Image Enhancement: Real time adjustment of Hue, Brightness, Contrast, Saturation, and Save as JPEG

• Disc Save Time: Less than 10 minutes for one full disc

• Disc Capacity:

• 60 images / Video files

• Up to a maximum of 1.8 GB (CD system) and 4.5 GB (DVD system)

• File Format:

• Standard BMP file

• ISO standardized MPEG-1, MPEG-2

• JPEG (non-progressive, 1:1:1 no sub-sampling)

• CD Recording: Multisession ISO9660 with Joliet extensions

• DVD+RW Recording: ISO UDF Video for DVD Video

• Remote Control: Wireless Infrared, Camera Head Triggering

Electrical and Physical

• Power Consumption: 45 W, 100 - 240 V at 2 A maximum, leakage less than 300 µA

• Agency Approval:

• UL 2601-1, 2nd Edition

• CAN/CSA C22.2 No.601.1-M90

• IEC 601-1-2

• Size (Control Unit): 5.14 in (H) x 15.9 in (W) x 16.6 in (D) (131 mm x 403 mm x 422 mm)

• Shipping Weight (Full Assembly): 37 lbs (16.78 kg)

• Network: 10/100 Mbps Ethernet

• Auto Printing: 1, 2, 4, 6, 8, 12, or 18 images per page

• Display: 8" TFT LCD, with digital touch screen

• Type B Equipment: Yes

• Compatibility: NTSC/PAL

• Specialties: General Surgery, Orthopedic, GYN, Cardio-thoracic, Urology, ENT, others
