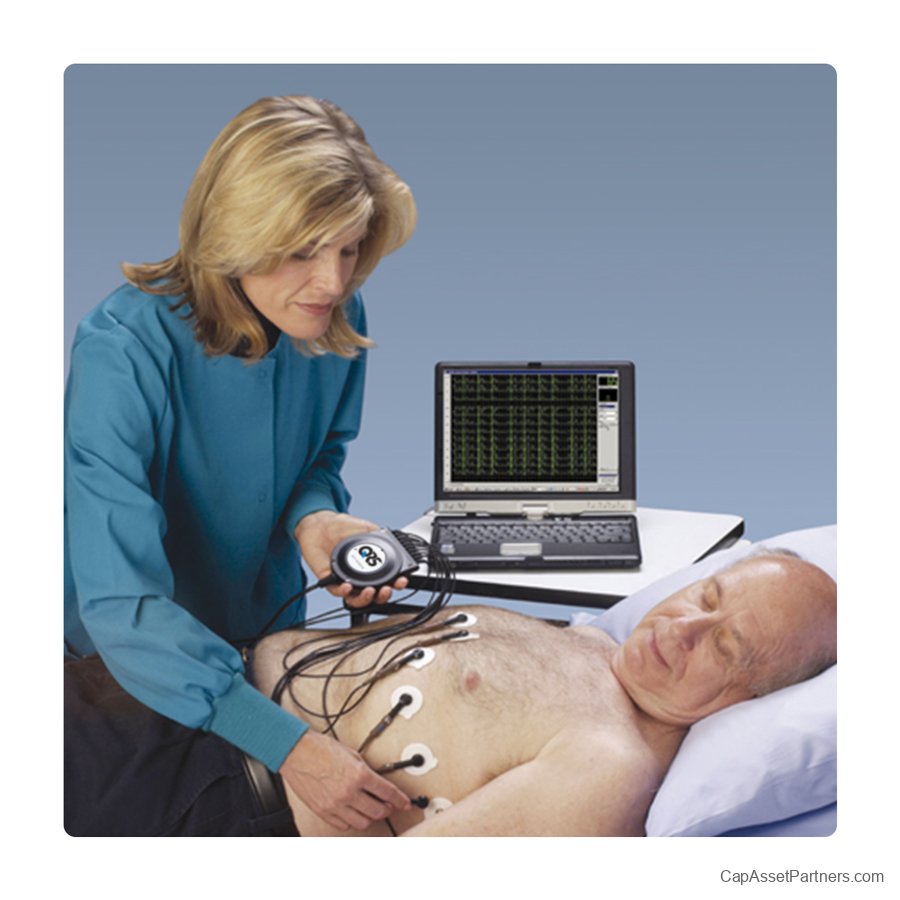

Discover the future of cardiac monitoring with the Universal ECG, a state-of-the-art, portable 12-lead ECG machine designed for versatility and precision. As one of the lightest and most compact PC-based options available, the Universal ECG allows healthcare professionals to perform resting ECGs with remarkable ease, anytime and anywhere.
Key Benefits:

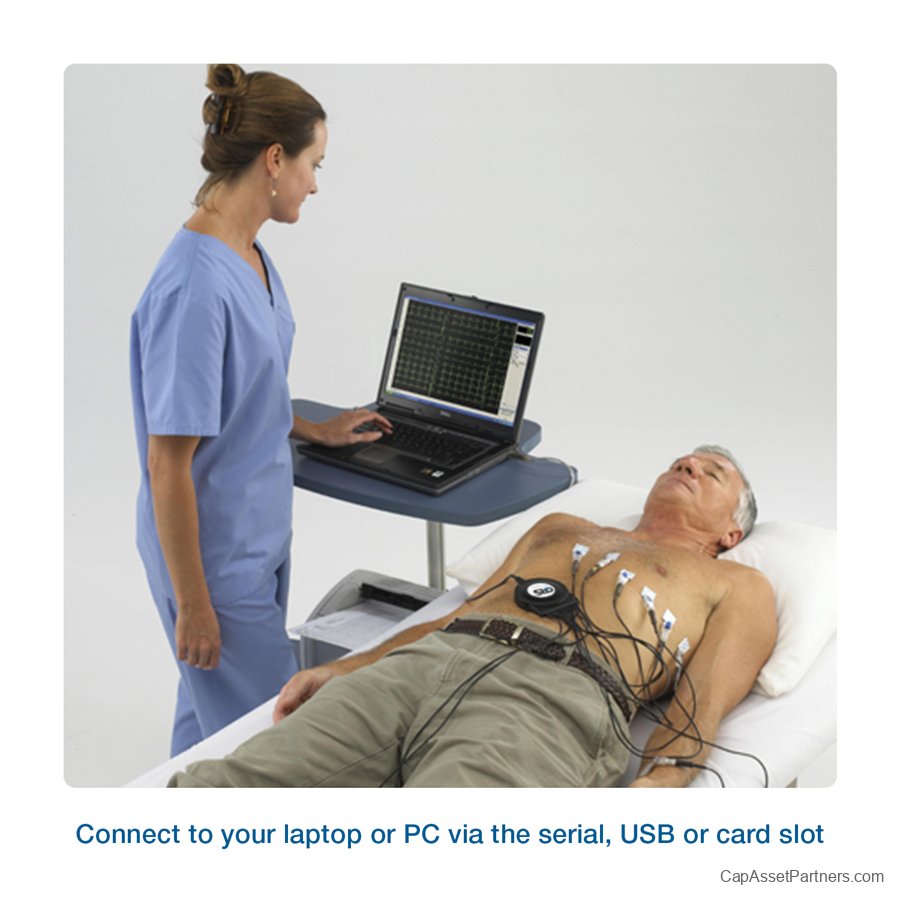

This comprehensive system connects effortlessly to your preferred PC, laptop, or handheld device, providing instant access to results displayed on-screen for rapid assessment. Equipped with the advanced Louvaine Algorithm, it automatically interprets a full set of diagnostic measurements, ensuring accuracy and reliability in every reading.
Cost-Effective Solutions:

• Save up to $700 annually by utilizing your Windows® compatible printer—no more costly thermal paper.

• Operates entirely from your computer’s power, eliminating the need for disposable batteries and reducing operational costs.

• Minimize storage and courier expenses by generating PDFs and JPEGs that can be conveniently saved and emailed directly from your system.

• No need for calibration or annual maintenance, making it a hassle-free choice compared to traditional stand-alone EKG machines.

Unmatched Accuracy:
The Universal ECG stands out with the superior performance of the Louvaine analysis program, proven to deliver the best total accuracy among leading ECG algorithms. In clinical evaluations, it excelled in diagnosing conditions such as Myocardial Infarction and Ventricular Hypertrophy, outperforming many cardiologists.
Additional Features:

• Automatic interpretation and measurement analysis for quick insights.

• Print high-quality, full-page reports on plain paper in various formats.

• Review and refine data using electronic calipers, with the option to add comments before finalizing interpretations.

• Effortlessly create and share PDFs or JPEGs of your reports.

• Seamless integration with electronic medical records (EMR) via XML, HL7, and other formats.

• A six-channel non-interpretive version is also available for diverse needs.

Compatibility:

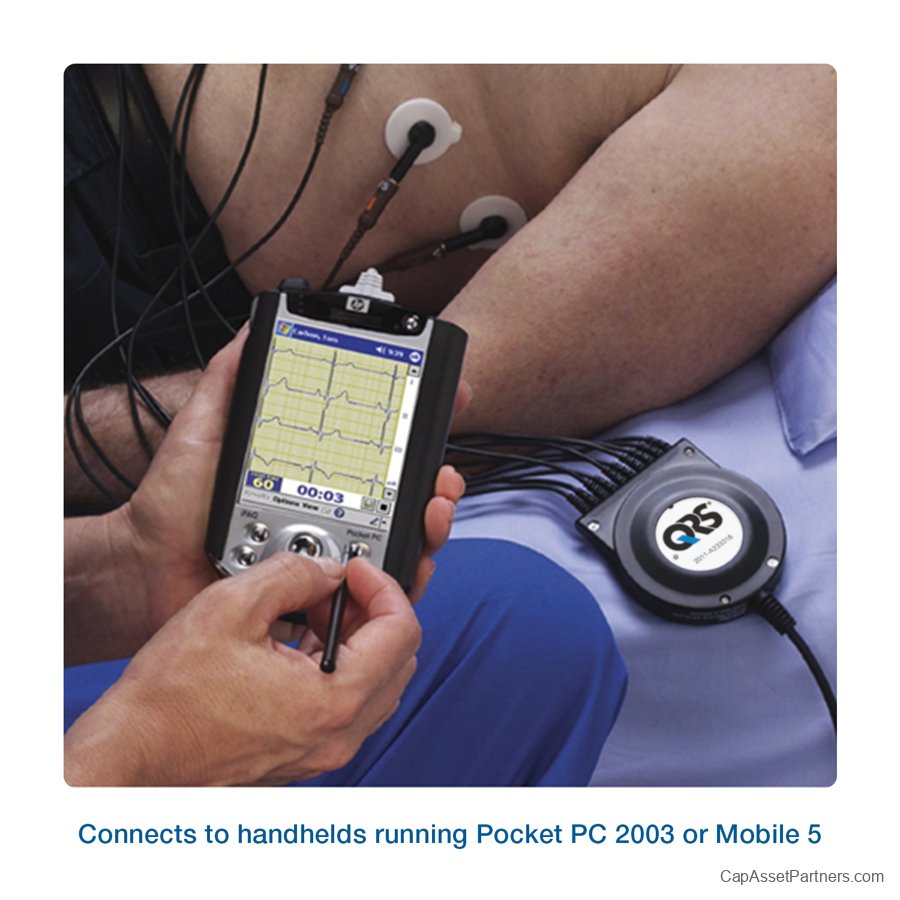

The Universal ECG is compatible with Microsoft® Windows® laptops and desktops operating on Windows® 2000 or XP, as well as handheld devices running Pocket PC 2003 or Mobile 5 that feature a CF Card slot or Serial port.
Upgrade your cardiac diagnostics with the Universal ECG Portable PC-Based 12-Lead ECG, where accuracy, convenience, and cost-efficiency meet.

Universal ECG Portable PC-Based 12-Lead ECG Specifications

General:

• Hub Weight: 280 - 300 grams (0.62 - 0.66 lbs)

• Hub Dimensions: 85 × 91 × 20 mm (3.35 × 3.58 × 0.79 in)

• Patient Leads Length: 1 meter (39.37 in)

• PC Connection Length: 1-3 meters (39.37-118.11 in), DB9 female connector

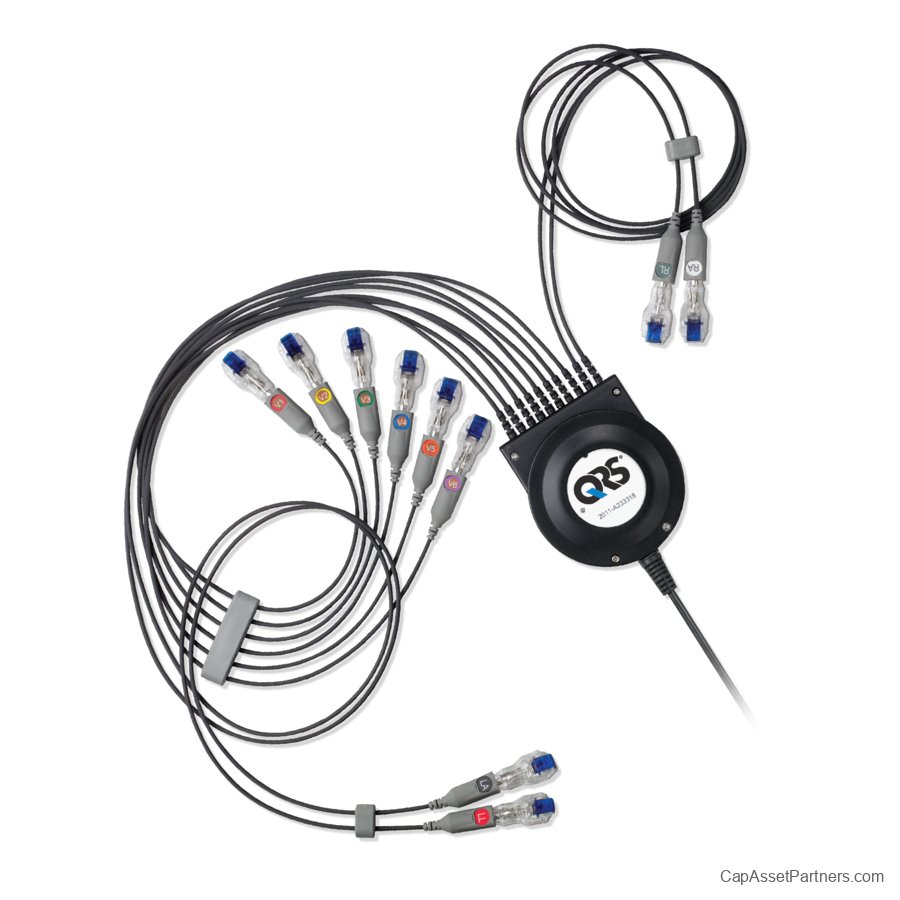

• Patient Leads:

• 6 Lead Cable (4 patient leads)

• 12 Lead Cable (10 patient leads)

• Case Material: ABS plastic

• Electrode Connections: 4 mm banana plug with "tab" or "snap" connectors

• Electrode Labeling: Abbreviations and colors conforming to IEC or AAMI standards

• Display and Operating Console: Dependent on PC (supplied by user)

• Gain/Sensitivity: 5, 10, 20 mm/mV

• Input Range: ±6 mV

• Acquisition Sample Rate: 1000 samples/sec (compressed to 500 Hz using peak picking and averaging algorithm)

• Frequency Response: 0.05 to 175 Hz ±3 dB

• Defibrillator Protection: Patient leads isolated from system and operator, with 4 kV protection

• Common Mode Rejection: -60 dB (minimum)

• Safety Standards: Complies with AAMI EC11, EN60601-1, EN601-1-2, and EN601-2-25

• Leads Off Indicators: Connection status for each lead displayed on Acquisition screen

• Power Source: Powered by PC Serial port control lines or can draw extra power from PS/2 or USB port

• Supply Voltage: 4 - 16 V DC

• Supply Current: Not specified

• Permanent Filters:

• High Pass: 0.05 Hz 1st order

• Low Pass: 170 Hz 1st order

• Baseline Wander: Baseline reset by adaptive zeroing algorithm

• Notch Filter (Mains Noise Rejection):

• 50 Hz 4th order Butterworth (49.1 Hz - 50.9 Hz)

• 60 Hz 4th order Butterworth (59.1 Hz - 60.9 Hz)

• Low Pass (Muscle Artifact Filter): 35 Hz 4th order

• Report Capabilities: User selectable report formats

Environmental Conditions:

• Operating Temperature: 0°C - 40°C (32°F - 104°F)

• Storage Temperature: -20°C - 70°C (-4°F - 158°F)

• Humidity: 5% - 85% (non-condensing)
