ThermalSeal®2™ and ThermalSeal Advanced®

Availability: In Stock! Lead Times May Vary

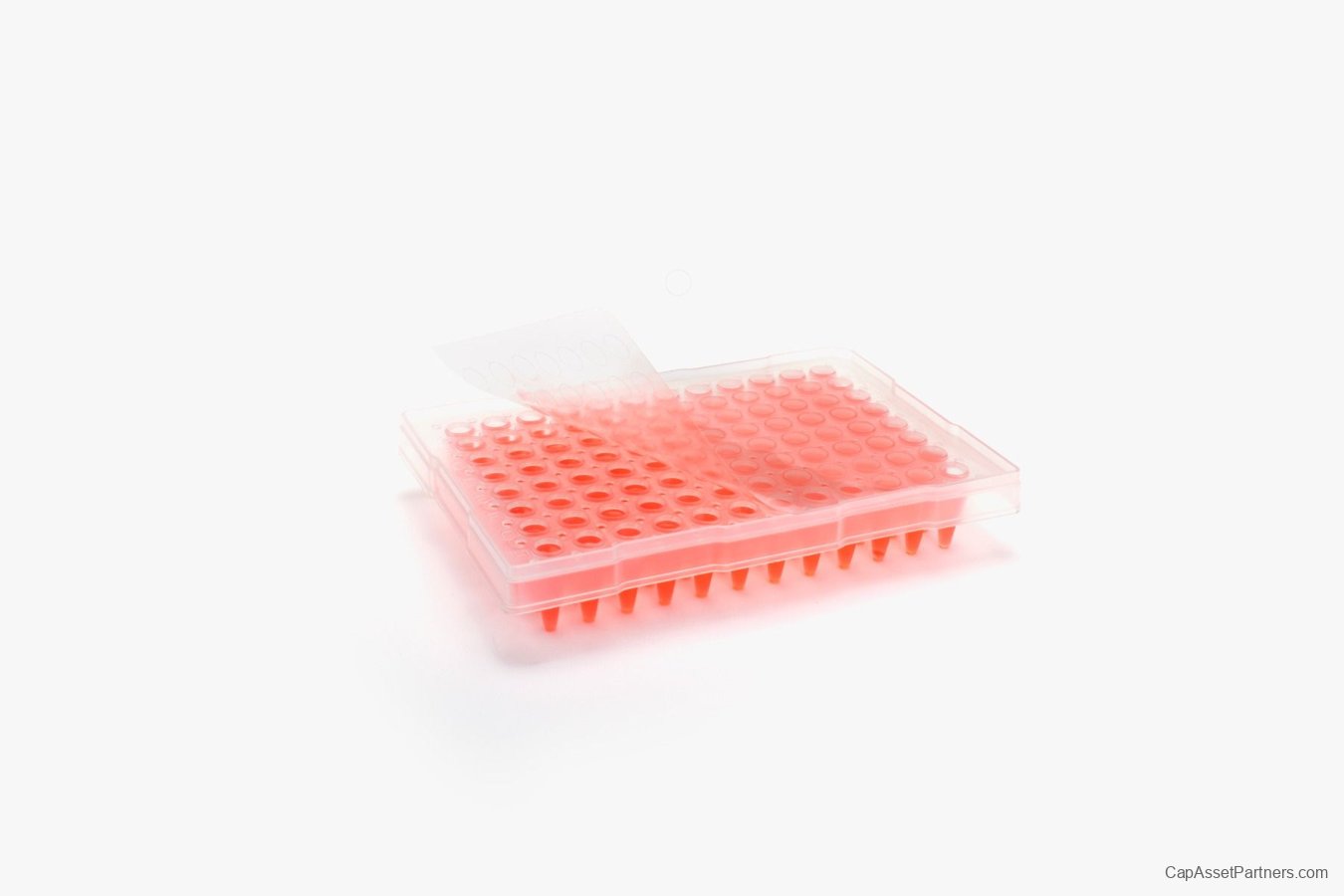

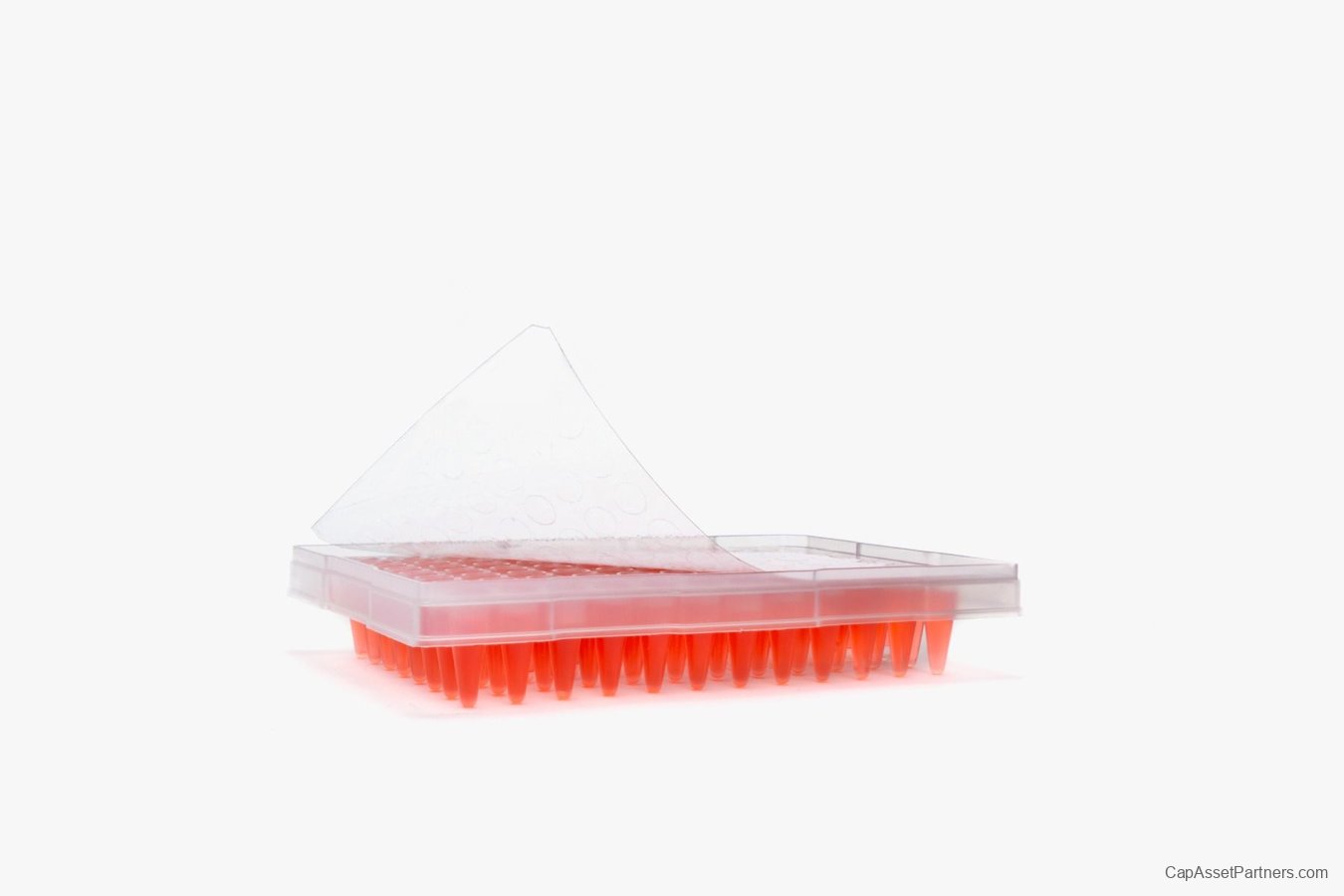

Enhance the accuracy and reliability of your experiments with ThermalSeal®2™ and ThermalSeal Advanced®. Both products are designed with a soft, extra thick, conformable adhesive, ensuring a robust seal around raised wells. This unique feature minimizes evaporation and cross-contamination, making them essential for precise laboratory results.

Key Features:

    • Soft, extra thick, conformable adhesive for a secure seal
    • Certified DNase- & RNase- free for contamination-free assays
    • Compatible with flat-top, semi-skirted, and full-skirted PCR plates
    • Works effectively with hard-shell dual-component PCR plates (polycarbonate/polypropylene)
    • Large cut design for easier alignment by enabling edge of plate positioning
    • Available in a specialized smaller cut for raised-rim and non-skirted PCR plates: ThermalSeal Advanced
    • All sales are final. No refunds are permitted except for manufacturer defects.

Helpful Tips:

    • Choose the appropriate film size to minimize evaporation
    • Avoid overhangs; the film should not ride up the walls of raised-rim plates
    • Ensure complete coverage on skirted flat-top plates to enhance evaporation control in the outer wells
    • Remove end-tabs prior to thermal cycling for optimum performance

Specifications:

SKU Temperature Range Dimensions Liner Thickness
TSA-100 -40°C to +120°C 5.500" ± 0.015" x 3.125" ± 0.015" 4.8 mil ± 10%
TS2-100 -40°C to +120°C 5.500" ± 0.015" x 3.125" ± 0.015" 4.8 mil ± 10%

Additional Information:

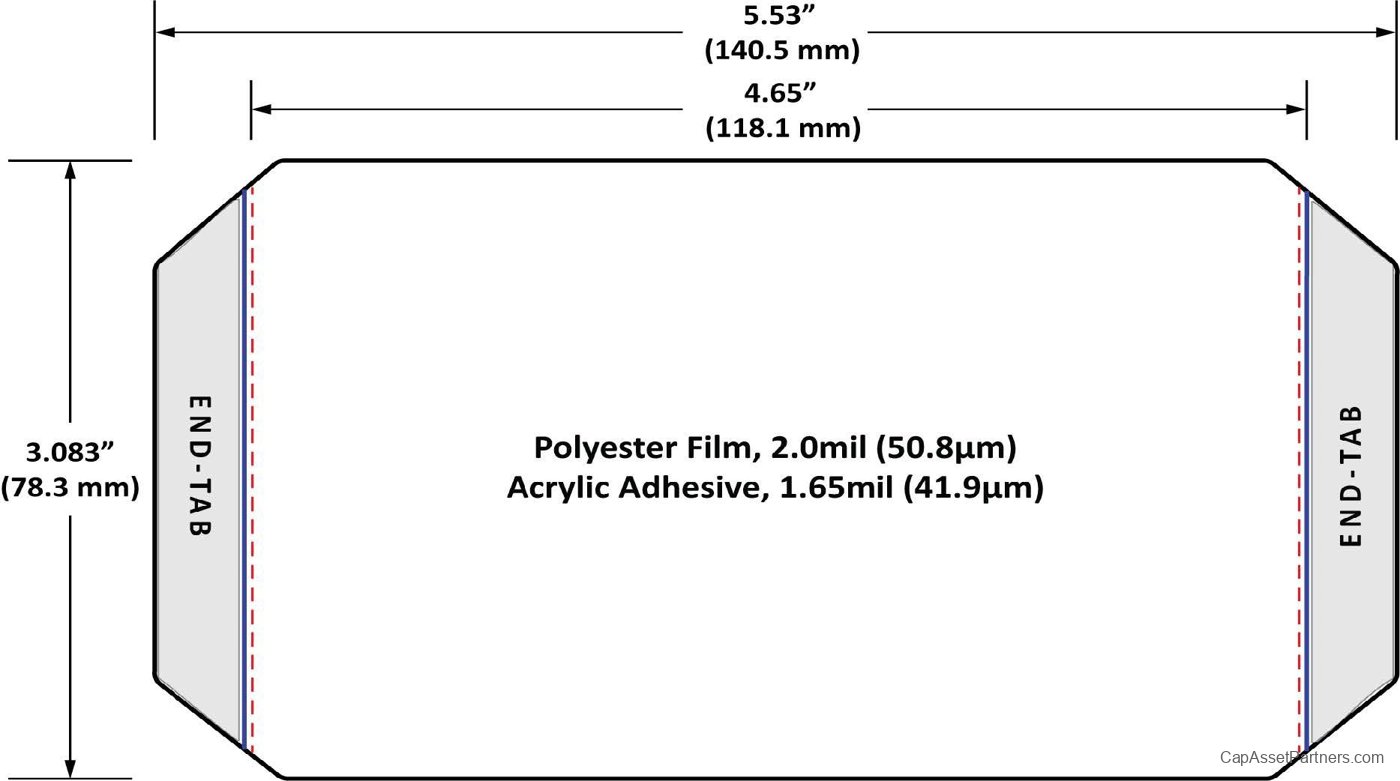

SKU Tab Dimensions Corner Radius Film Material Film Thickness Adhesive Thickness Liner Material
TSA-100 0.250" ± 0.015" 1/16" Polyester 2.0 mil ± 10% 1.5 to 1.8 mil White Poly-Coated Paper
TS2-100 0.250" ± 0.015" 1/16" Polyester 2.0 mil ± 10% 1.5 to 1.8 mil White Poly-Coated Paper
