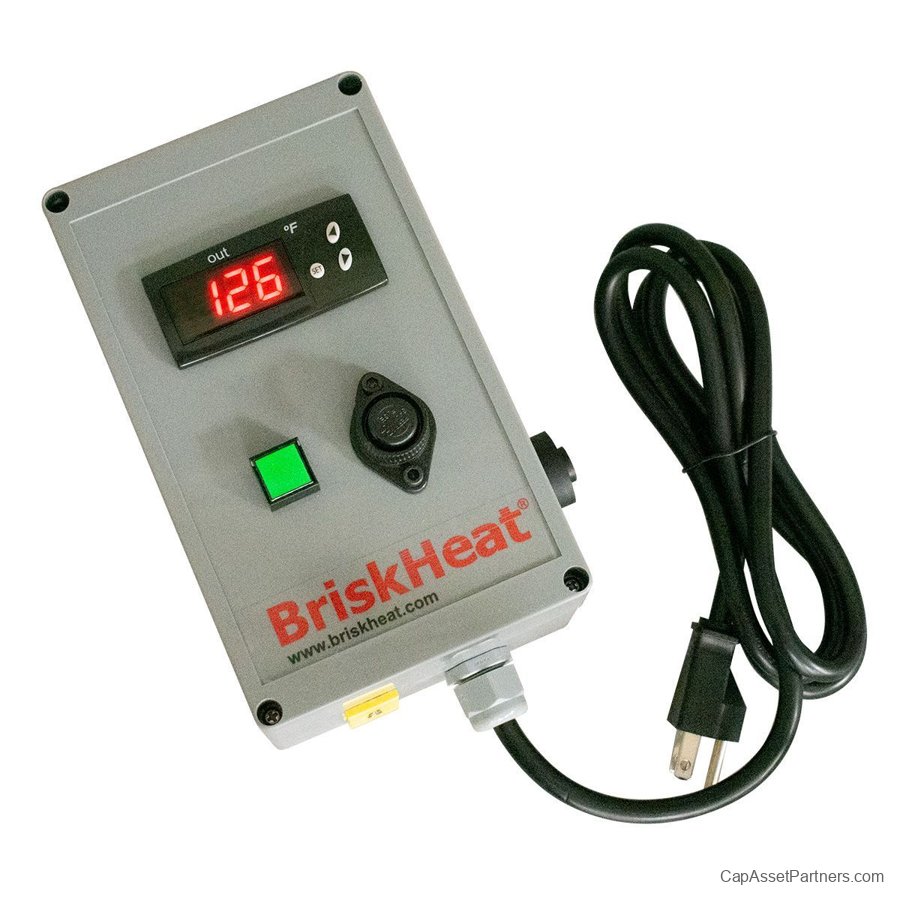

TTD Outdoor-Use Digital Temperature Controllers

Introducing the TTD Outdoor-Use Digital On/Off Temperature Controllers, specifically engineered for both indoor and outdoor environments to effectively manage the temperature of small tanks, drums, pipes, and a variety of applications demanding precise automatic temperature control. Each controller is equipped with standard K-Type thermocouple mini and standard connector inputs for versatile temperature management.

Key Features:

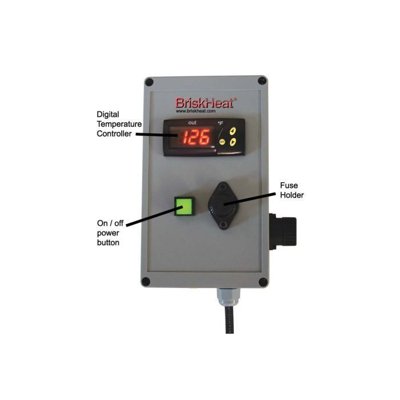

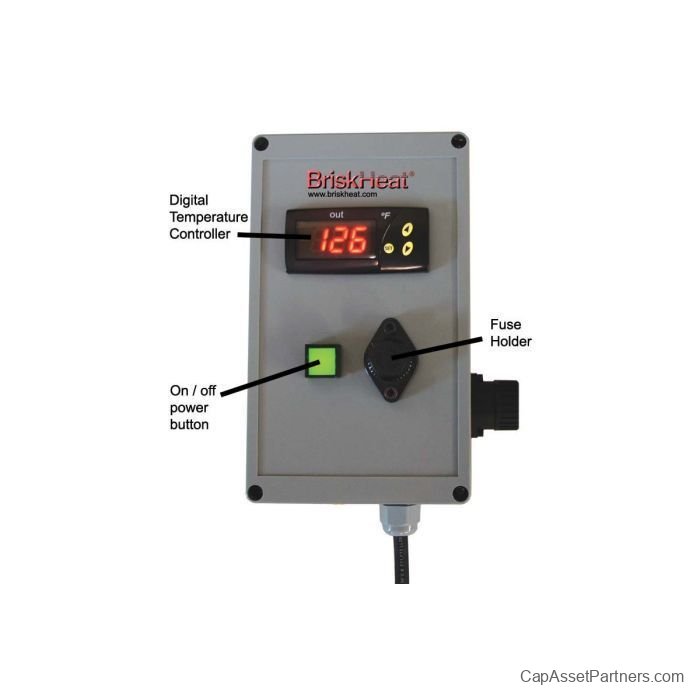

• Bright red LED display featuring a 3-key push button interface along with an audible alarm for enhanced user experience
• Available in three distinct temperature ranges to suit various needs
• Durable NEMA 3X/IP64 rated enclosure, ensuring reliable performance in all weather conditions
• Operational voltage options: 120 or 240 VAC
• Maximum Amp Load capacity of 15 amps, suitable for a variety of setups
• Comprehensive Temperature Control Range:
  • 32°F to 175°F (0°C to 79°C)
  • 32°F to 500°F (0°C to 260°C)
  • 32°F to 999°F (0°C to 537°C)
• Temperature Display Units: Default set to °F; °C available upon request

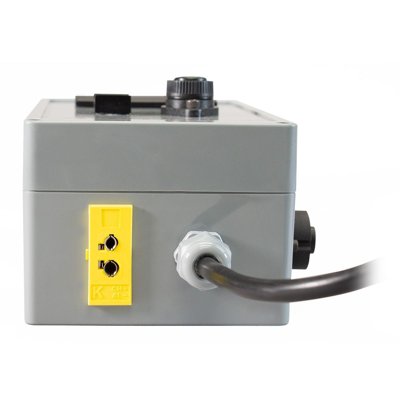

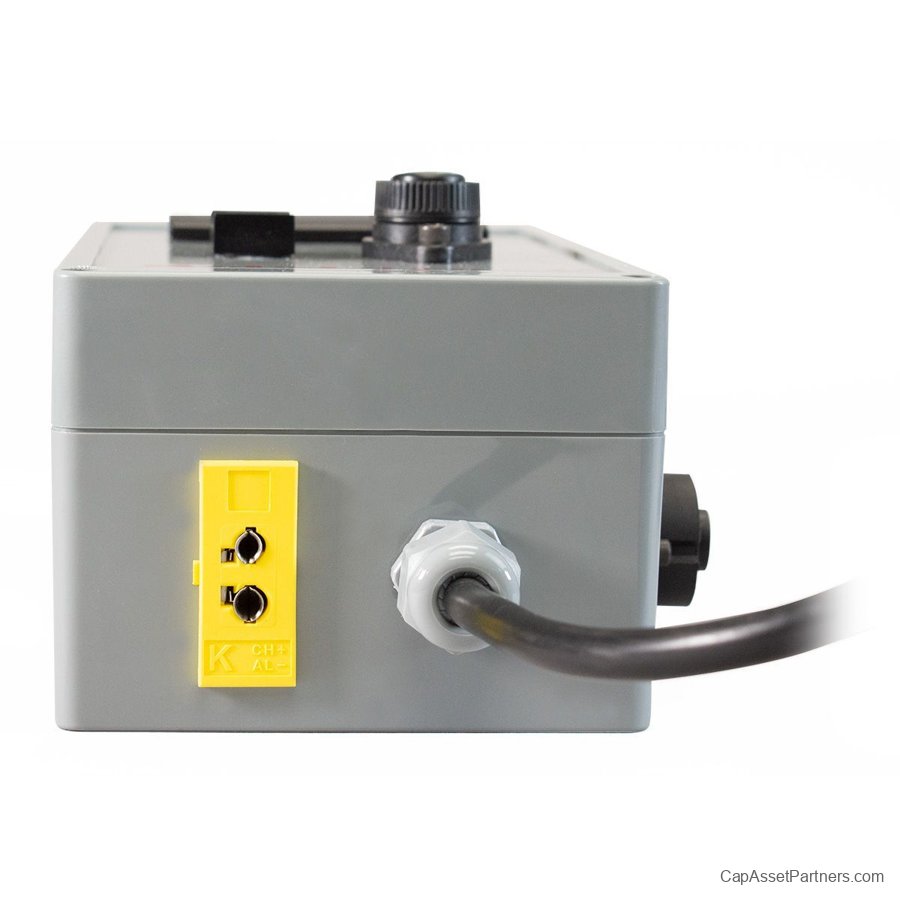

• Sensor Inputs: Mini or standard type-K connection with an accuracy of ± 1% full scale
• Resolution of 1° for precise temperature readings
• Hysteresis measurement set at 5° to reduce cycling
• Audible alarms to notify users of any deviations

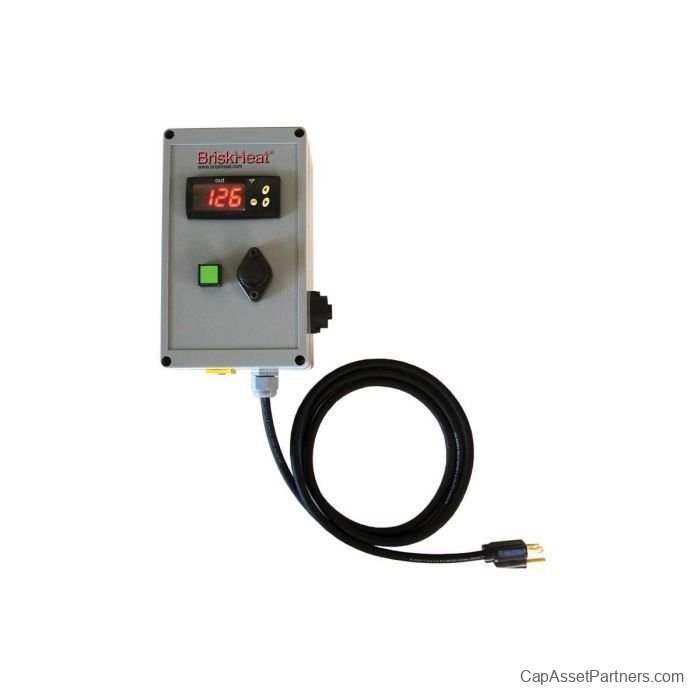

• Robust Input Power Cords/Connections measuring 6 ft (1.8 m), with:
  • 120 VAC model featuring a NEMA 5-15 plug
  • 240 VAC model featuring a NEMA 6-15 plug
• Output Power Cords/Connections designed with a 4-pin receptacle and mating plug; rated IP67, NEMA 6P
• Special Mounting Bracket is included with TTD175-K120 and TTD175-K240 models for easy installation

Environmental Exposures:

• Operating temperature range: 14°F to 131°F (-10°C to 55°C)
• Storage temperature range: -4°F to 176°F (-20°C to 80°C)
