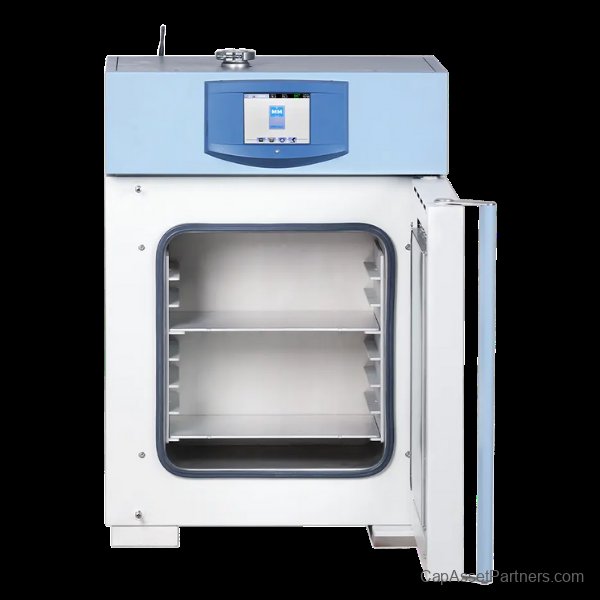

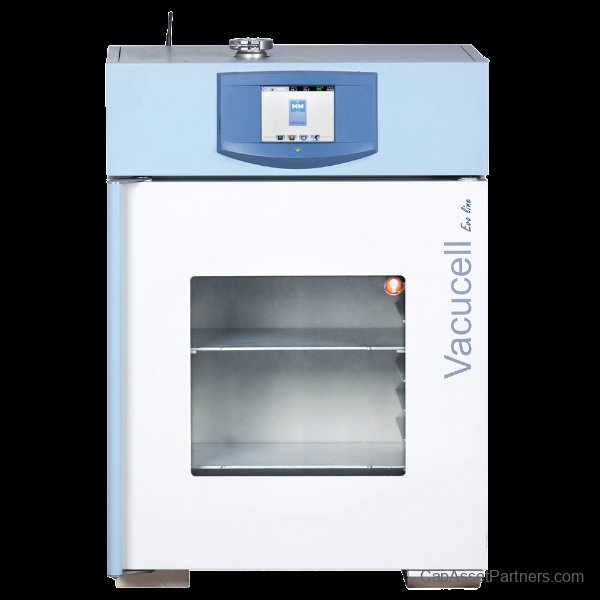

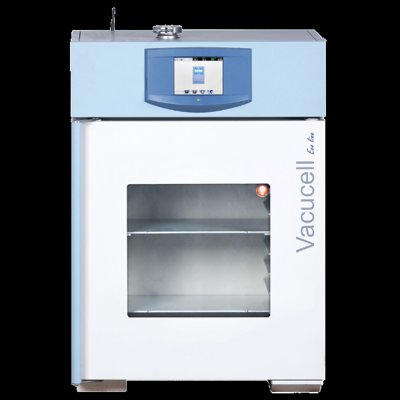

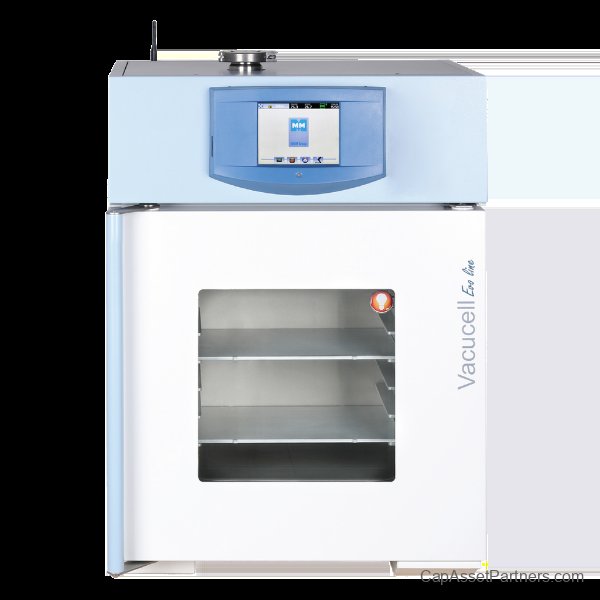

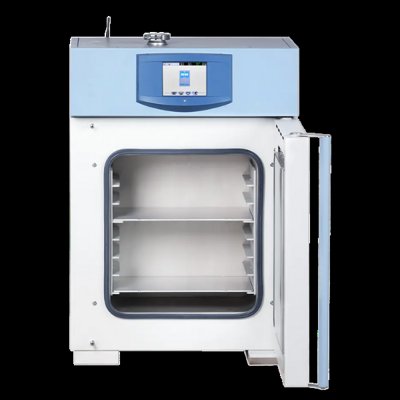

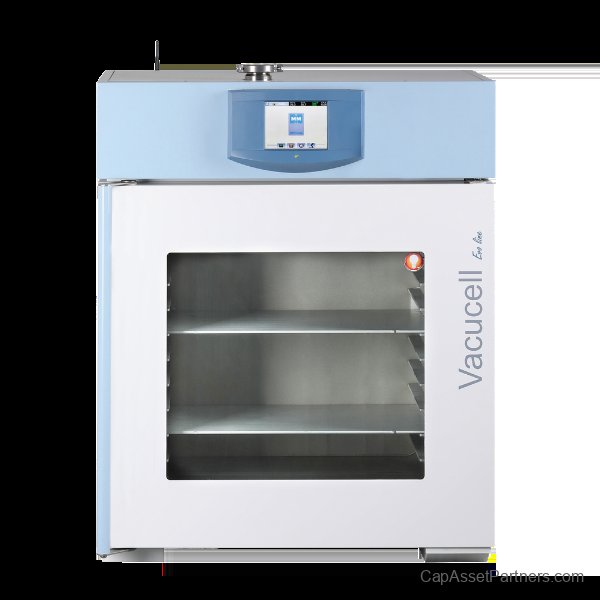

Vacucell® EVO Vacuum Drying Ovens

The Vacucell® EVO Vacuum Drying Ovens are specifically designed for the delicate task of drying temperature-sensitive materials and solvents under a controlled vacuum environment. The innovative Servotherm direct heat transfer system ensures efficient thermal conduction from the electrically heated chamber walls to the load, utilizing aluminum shelving for optimal results. An inert gas connection facilitates the evacuation of air from the chamber, while compatibility with central vacuum sources extends its versatility.

Key Features:

• Advanced EVO microprocessor controller for precision management.
• 5.7-inch color touchscreen for easy, glove-friendly operation.
• Capable of storing up to 100 programs, each with 100 segments, for varied loads and parameters with unlimited cycles.
• Real-time programming and cycling with customizable temperature ramping settings.
• Graphical display of cycle parameters to track progress and conditions.
• DIN 12880 certified digital safety thermostat for reliable temperature control.
• Features delayed heating start and stop function to enhance usability.
• Integrated acoustic and digital alarms for improved safety monitoring.
• Secure keypad lock feature to protect programming settings.
• RS 232 port allows for easy data transfer and logging.
• Constructed from pharmaceutical-grade AISI 316 stainless steel for increased durability.
• Removable shelving brackets simplify cleaning and sterilization of the entire chamber.
• Double wall construction with five layers of insulation for uniform internal chamber conditions.
• Rounded interior corners reduce contamination and make cleaning easier.
• Patented 4-point closing system ensures a perfect seal and allows for hands-free door operation.
• Transparent door window facilitates monitoring without interrupting the vacuum environment.
• The chamber is equipped with a 2 cm thick Ventiflex glass panel, mounted on guide rails and springs to safely release pressure, preventing potential explosions.

Certifications:

• CE, UL, and CSA listed for safety and compliance.
• FDA CFR 21 Part 11 compliant microprocessor integrated data logger with multi-level authentication for secure data access.
