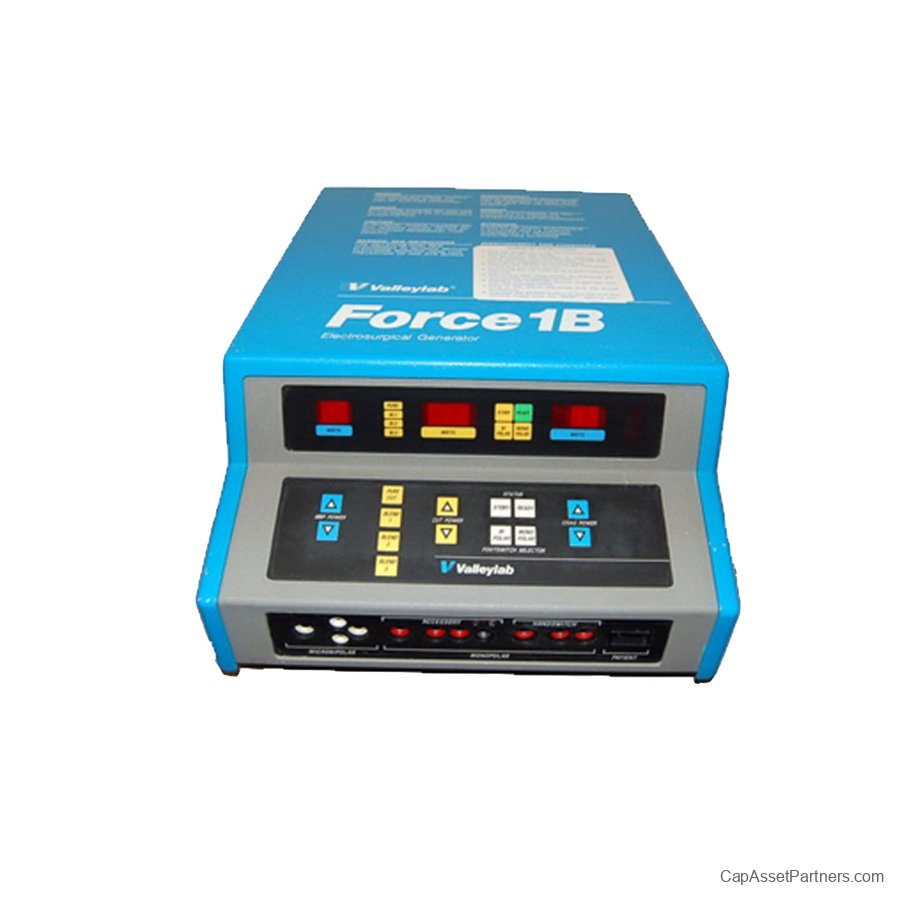

Valleylab Force 1B Digital ESU: Advanced Electrosurgical Precision
Experience cutting-edge performance with the Valleylab Force 1B Digital Electrosurgical Unit (ESU), designed for modern surgical environments. This versatile device offers both monopolar and bipolar outputs, allowing for a wide range of surgical applications.
Key Features:

• Monopolar and Bipolar Outputs: Efficiently handle multiple surgical techniques with dedicated outputs for optimal performance.

• Audible and Visual Alarms: Stay informed with audible alerts and a REM™ Fault Indicator to ensure safe operation.

• Return Electrode Monitoring (REM™): Standardized monitoring system guarantees patient safety during procedures.

• Impressive Power Specifications: Achieve precise results with an output of 300 Watts for cutting, 120 Watts for coagulation, and 70 Watts for bipolar use.

In addition, the Valleylab Force 1B comes equipped with a monopolar foot switch for hands-free operation, while an optional bipolar foot switch is available for enhanced versatility. Rolling carts can also be added (optional) for convenient mobility in your surgical suite.
Elevate your surgical capabilities with the Valleylab Force 1B Digital ESU – the ideal choice for healthcare professionals seeking reliability and precision in electrosurgery.

Valleylab Force 1B Digital ESU Specifications

Physical Weight & Dimensions

• Dimensions: 8 × 11 × 17 inches (20 × 28 × 43 cm)

• Weight: 15 lbs (6.4 kg)

Output Characteristics

• Cut: 2400 Max (open circuit) P-P Voltage, 300 Rated Load ohms, 200 Nominal Power at rated load watts, 1.8 @ 100 W Crest Factor at rated load typical

• Blend 1: 2800 Max (open circuit) P-P Voltage, 300 Rated Load ohms, 175 Nominal Power at rated load watts, 2.7 @ 100 W Crest Factor at rated load typical

• Blend 2: 3200 Max (open circuit) P-P Voltage, 300 Rated Load ohms, 150 Nominal Power at rated load watts, 3.3 @ 100 W Crest Factor at rated load typical

• Blend 3: 3600 Max (open circuit) P-P Voltage, 300 Rated Load ohms, 125 Nominal Power at rated load watts, 4.6 @ 100 W Crest Factor at rated load typical

• Coag: 5000 Max (open circuit) P-P Voltage, 300 Rated Load ohms, 75 Nominal Power at rated load watts, 8.0 @ 50 W Crest Factor at rated load typical

• Bipolar: 800 Max (open circuit) P-P Voltage, 100 Rated Load ohms, 50 Nominal Power at rated load watts, 1.8 @ 40 W Crest Factor at rated load typical

Output Waveform

• Cut: 500 kHz Sinusoid

• Blend 1: 500 kHz bursts, 50% Duty Cycle, 31 kHz Recurrence

• Blend 2: 500 kHz bursts, 37.5% Duty Cycle, 31 kHz Recurrence

• Blend 3: 500 kHz bursts, 25% Duty Cycle, 31 kHz Recurrence

• Coag: 500 kHz bursts, 31 kHz Recurrence

• Bipolar: 500 kHz bursts, Unmodulated Recurrence

Low Frequency Leakage (50/60 Hz)

• Normal polarity: intact chassis ground: < 10 mA, ground open: < 100 mA

• Reverse polarity: ground open: < 100 mA; Sink current, 140 V applied, all inputs: < 150 mA; Chassis source current, ground open: < 110 mA

High Frequency Risk Parameters

• Bipolar and Monopolar RF leakage current: < 150 milliamperes

REM™ Contact Quality Monitor

• Measurement frequency: 140 kHz ± 10 kHz

• Measurement current: 1.5 mA ± 0.5 mA

Input Power Source

• Nominal input line voltage: 120 VAC (full range: 85-135 VAC)

• Frequency: 45 to 65 Hz

• Idle: 0.5 A (Max. Current), 60 W (Max. Power)

• Cut: 5.0 A (Max. Current), 600 W (Max. Power)

• Coag: 30 A (Max. Current), 300 W (Max. Power)

• Bipolar: 1.5 A (Max. Current), 180 W (Max. Power)
