Valleylab Force 2 ESU (Electrosurgical / Cautery Unit)

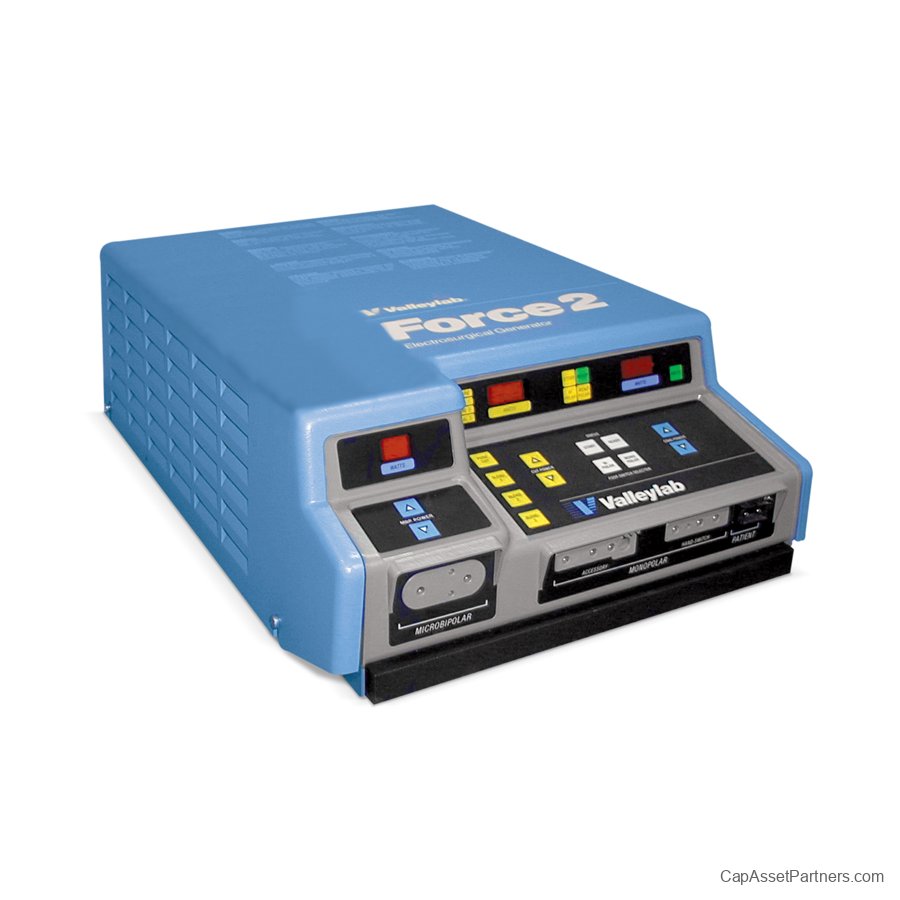

Valleylab Force 2 Electrosurgical Generator

• Advanced Cautery Unit

Discover the powerful Valleylab Force 2 Electrosurgical Unit (ESU), a trusted solution for cutting and coagulation with both monopolar and bipolar outputs. Renowned for its reliability, this generator features a comprehensive set of audible and visual alarms, including the innovative REM™ Fault Indicator, ensuring enhanced operational safety during surgical procedures.
With 300 watts of output available in the cutting mode, the Valleylab Force 2 is equipped to handle a wide range of surgical tasks. The unit includes a monopolar foot switch for user convenience, and offers the option of a bipolar foot switch as well as a rolling cart for added functionality.

Force 2 Features

Blended Cut Modes
Experience flexibility with three distinct preset modes that allow for varying degrees of hemostasis, enabling surgeons to tailor their cutting techniques to the specific requirements of each procedure.
Simultaneous Independent Coagulation
This unique feature lets two surgeons operate concurrently from a single generator, enhancing surgical efficiency. Accessories are only activated when correctly keyed, minimizing the risk of accidental activation.
Low Voltage Coagulation
Designed for precision, the low voltage coagulation setting provides controlled desiccation with minimal damage to surrounding tissue, making the Valleylab Force 2 particularly advantageous for laparoscopic surgeries.
REM™ Safety
The patented adaptive REM™ system is a hallmark of Valleylab’s commitment to safety. It continuously monitors patient impedance levels, automatically deactivating the generator if a fault is detected in the patient/return electrode contact. This advanced safety feature has safeguarded patients in over 100 million surgical procedures worldwide, significantly reducing the risk of burns.
Elevate your surgical capabilities with the Valleylab Force 2 Electrosurgical Generator, where precision meets reliability in the operating room.

Valleylab Force 2 ESU (Electrosurgical / Cautery Unit) Specifications

Physical Weight & Dimensions

• Height: 8 inches (20 cm)

• Width: 13 inches (33 cm)

• Depth: 21 inches (53 cm)

• Weight: 23 lbs (10.4 kg)

Output Waveforms

• Cut: 510 kHz sinusoid

• Blend 1: 510 kHz sinusoidal bursts at 50% duty cycle recurring at 31 kHz

• Blend 2: 510 kHz sinusoidal bursts at 37.5% duty cycle recurring at 31 kHz

• Blend 3: 510 kHz sinusoidal bursts at 25% duty cycle recurring at 31 kHz

• Coag: 510 kHz damped sinusoidal bursts with a repetition frequency of 31 kHz; Low Voltage 510 kHz sinusoidal bursts at 25% duty cycle recurring at 31 kHz

• Bipolar: 510 kHz sinusoid; Output power changes by less than 5% or 5 watts, whichever is greater, as line voltage varies from 85-135 volts (into a 300 ohm load)

Low Frequency Leakage (50-60 Hz)

• Normal polarity, intact chassis ground: < 10 ?A

• Normal polarity, ground open: < 100 ?A

• Reverse polarity, ground open: < 100 ?A

• Sink current, 140V applied, all inputs: < 150 ?A

High Frequency Leakage

• Less than 150 mA rms

Input Power Requirements

• Operating range: 85 to 135 AC volts

• Current: < 8 amperes in cut, < 4 amperes in coag

Power Readouts

• Agree with actual power into rated load to within ± 15% or 5 watts, whichever is greater

Adaptive REM™ System

• Measurement Frequency: 140 kHz ± 20 kHz

• Measurement Current: 3 mA maximum

• Acceptable Resistance Ranges:

• REM® pad: 5-135 ohms

• Non-REM® pad: < 20 ohms

• Acceptance range: 5-135 ohms after REM® PolyHesive® II return electrode is applied; REM® trip is initial impedance plus 40% (e.g., if initial impedance is 30 ohms, upper level trip is approximately 42 ohms)

Cooling

• Convection, no fan

Audio Volume

• Mode indicator tones: Adjustable to a minimum level of 45 dB at 1 meter

• Alarm tones: Set at 65 dB minimum at 1 meter, non-adjustable

• Also available in a 220-240 volt, 50-60 Hz configuration

• Designed to meet UL and CSA specifications
