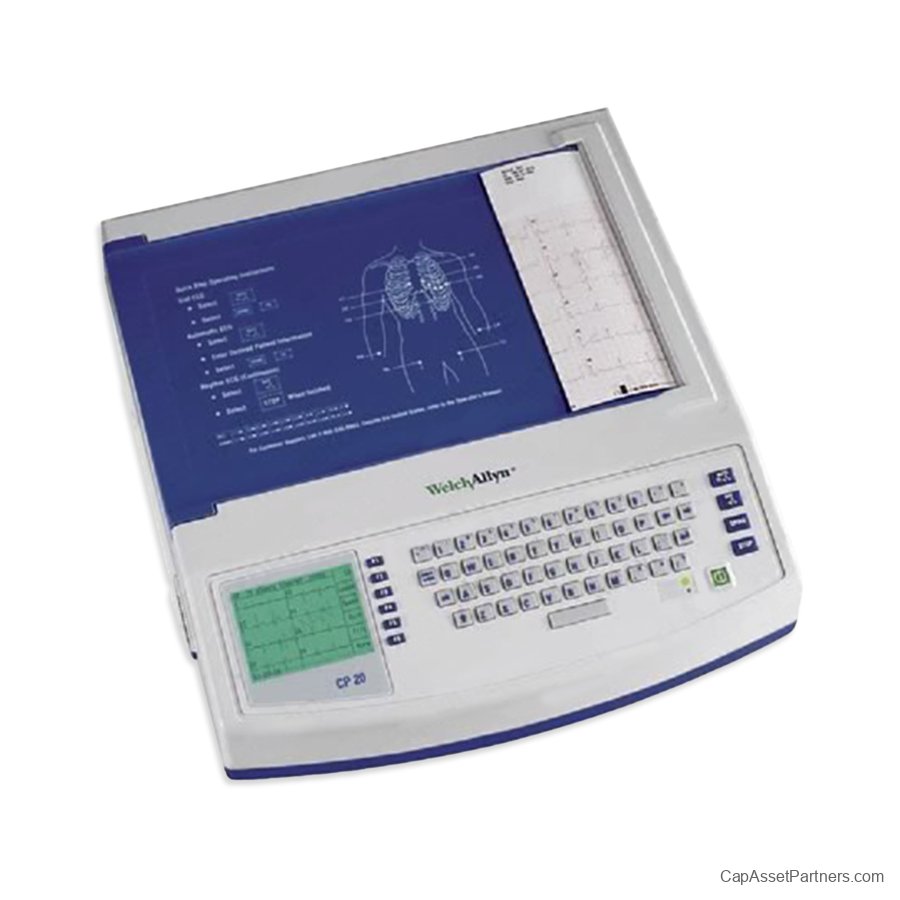

Welch Allyn CP 20 EKG Machine

Welch Allyn CP 20 EKG Machine

• Your Essential ECG Solution

The Welch Allyn CP 20™ Electrocardiograph is designed to meet the needs of medical professionals with its user-friendly features and advanced technology, ensuring accurate ECG measurements. This powerhouse device enables quick input of patient demographics, thanks to its full alphanumeric keyboard, providing an efficient workflow in busy clinical settings.
Key Features:

• 12-Lead Resting ECG: Achieve standard ECG measurements with precision.

• High-Resolution Backlit Display: The 1/4" VGA LCD screen makes patient data entry simple, even in low-light conditions.

• Multiple Printout Formats: Generate reports on high-quality 8.25 × 11 inches thermal paper in a variety of formats, including 3x4+1, 3x4+3, 6, and 12 channel options.

• Flexible Operation: Switch seamlessly between automatic and manual modes to suit your specific needs.

• ECG Storage Capability: Store up to 50 ECGs for easy access and reference.

• Waveform Preview Screen: Choose between 8 or 3 channel ECG waveform displays for quick review.

• Data Transfer Compatibility: Effortlessly transfer ECG records to the CardioPerfect™ Workstation for editing, review, and secure paperless storage.

• Optional Interpretation Software: Enhance your diagnostic capabilities with integrated interpretation software.

• Connectivity Options: Connect with a variety of communication methods, including modem, serial interface, and wireless LAN -802.11b.

• Seamless Integration: The CP 20 integrates smoothly with office practice management systems or electronic medical records (EMRs) via the CardioPerfect Workstation.

The Welch Allyn CP 20 EKG Machine is the ideal choice for healthcare facilities looking to optimize their ECG processes while maintaining high standards of accuracy and efficiency in patient care. Elevate your practice with this reliable and advanced electrocardiograph today.

Welch Allyn CP 20 EKG Machine Specifications

General

• Dimensions: 15.5 × 17 × 4 inches (39.4 × 43.2 × 10.2 cm)

• Weight: 11.25 lb (5.1 kg) including battery

• Waveform Display: Backlit, VGA LCD, 3 channel lead groups or complete 8 channel presentation (CP 20 only)

• Keyboard Type: Elastomer keypad with complete alphanumeric keys, soft-key menu and dedicated function keys

• Paper Type: 8.25 × 11 inches (21 × 28 cm), Z-fold thermal paper, 200 sheets stored in paper tray

• Thermal Recorder: Computer-controlled dot array, 8 dots/mm

• Thermal Writer Speeds: 5, 10, 25, 50 mm/s

• Gain Settings: 5, 10, 20 mm/mV

• Report Print Formats:

• Automatic mode: 3+1, 3+3, 6 channel, 12 channel

• Rhythm mode: 6 channel with configurable lead groups or 12 channel

• ECG Storage: Up to 50 ECGs (CP 20 only)

• Frequency Response: 0.05 to 300 Hz

• Digital Sampling Rate:

• 1,000 s/sec/channel for recording and analysis

• 10,000 s/sec/channel for pacemaker spike detection

• Power Requirement: Universal AC power supply (100-240 VAC at 50/60 Hz), 50 VA

• Battery: Lead acid gel rechargeable battery; prints up to 200 ECGs per charge

• Filters: High Performance Baseline Filters, 40 Hz Muscle Tremor Filter, AC Interference Filter (50/60 Hz)

• Safety and Regulatory Compliance: ANSI/AAMI EC11, Class I type CF defibrillation proof
