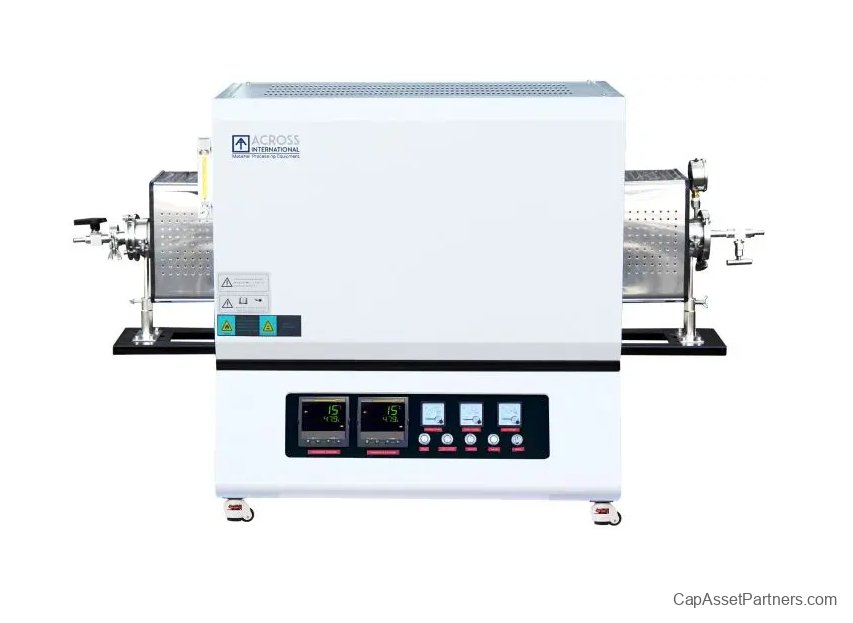

1700°C 2-Zone Tube Furnaces

Experience precision and reliability with the 1700°C 2-Zone Tube Furnaces, designed to meet the diverse needs of research and industrial applications. This high-performance furnace offers advanced features that ensure optimal sintering and processing of various materials and chemicals.

Key Features:

• Temperature Control: High precision temperature controller (Shimaden FP93) ensures ±1°C accuracy across 40 programmable segments, allowing tailored heating profiles for specific applications.
• Built-in Computer Interface: Save and analyze temperature curve data for comprehensive records or study purposes, enhancing research capabilities.
• Double-Layer Steel Design: Two internal cooling fans enhance thermal insulation and improve safety during operation.
• Sealed Tube Access: The split furnace chamber provides fast and easy tube access, and the stainless steel vacuum sealing flanges secure the tube in position.
• CE Certified: Meets stringent European safety and performance standards.

Safety Features:

• Overheat Protection: Automatically cuts off power when the temperature exceeds desired limits.
• Thermocouple Protection: Ensures immediate power shutdown in the event of a thermocouple malfunction.
• Temperature Variation Safety: Prevents operation if the actual temperature deviates significantly from the target temperature, as defined in the controller's manual.
• Power Failure Protection: Resumes operation automatically from the point of failure once power is restored.
• Secure Flange Support: Stainless steel flanges provide stability and safety for the tube assembly.
• Note: Never operate the furnace with explosive gases, including Hydrogen, Carbon Monoxide, and Methane.

TFM2 Series Components:

Specifications:

Additional Information:
