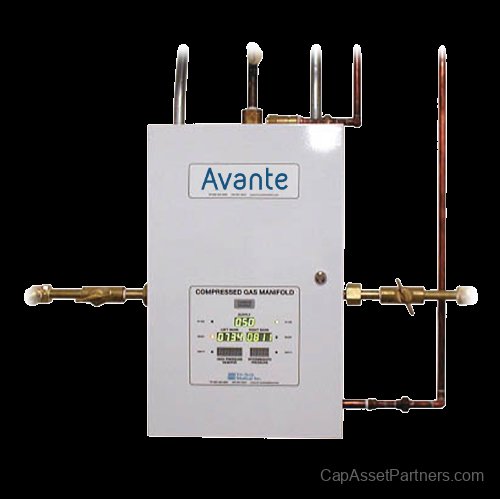

Automatic Medical Gas Manifolds

Automatic Medical Gas Manifolds: Essential Efficiency for Medical Facilities
Enhance the safety and reliability of your medical gas supply with our Automatic Medical Gas Manifolds, designed to optimize the delivery of vital gases in healthcare settings. Engineered for efficiency and precision, our manifolds are the ideal solution for hospitals, clinics, and other medical environments.
Key Features:

• Versatile Input Power: Operates on 120 VAC with a frequency of 50 to 60 Hz, ensuring compatibility with diverse power systems.

• Durable Pigtails: Comes with 24-inch flexible stainless steel braided pigtails. For added functionality, 36-inch pigtails are available for half of the cylinders, and all configurations include a check valve for enhanced safety.

• Oxygen Compatibility: Includes 36-inch copper pigtails with check valves specifically for oxygen units, ensuring optimal gas delivery.

• Reliable Connections: Features CGA connections with integral check valves at each header station, providing a secure and efficient connection to gas sources.

• Multi-Unit Pressure Measurement: Easily switch between units of measure, including psi, kPa, and BAR, to accommodate various monitoring needs.

• Dual Line Pressure Regulators: Equipped with dual regulators to maintain consistent gas pressure and flow, enhancing patient safety.

• Customizable Configurations: Special header configurations such as U-shaped and L-shaped options are available upon request. A dimensional sketch of installation is required for customization.

• Expandable System: Designed for easy expansion by adding header extensions as your facility's needs grow.

• Robust Build: With a cabinet weight of 70 lbs, our manifolds are constructed for durability and reliability in busy medical environments.

• Flexible Conversion: Capable of converting from high-pressure cylinder use to accommodate low or medium pressure liquid portable bulk vessels, offering flexibility in gas supply management.

• Adaptive Pressure Monitoring: Line pressure sensors can be mounted inside the cabinet or remotely, allowing for streamlined monitoring without the need for high/low pressure switches for master alarm operations.

Upgrade your facility's gas management systems with our Automatic Medical Gas Manifolds—engineered to deliver maximum performance, safety, and versatility. Ideal for medical professionals who demand reliable and efficient solutions in patient care environments.

Automatic Medical Gas Manifolds Specifications:

• Compliance: NFPA 99

• Operation: Digital, fully automatic with no manual resetting required.

• Switching Mechanism: "Bank in Use" to "Reserve" bank without fluctuation in line delivery pressure.

• Alarm System:

• "Reserve in Use" alarm triggered by microprocessor.

• "High Line Pressure" and "Low Line Pressure" alarms triggered without additional sensors.

• Power Failure: Continuously provides gas until both banks are depleted.

• Control Panel Display:

• Three large illuminated LED displays (green):

• Left Bank

• Right Bank

• Delivery Pressure

• Analog gauges for line and bank pressures (operational during power failure).

• LED status indicators for each bank:

• Green: "Bank in Use"

• Amber: "Ready"

• Red: "Empty"

• Construction:

• All regulators, piping, and control switching equipment cleaned for oxygen service.

• Installed in a weatherproof steel cabinet to provide protection and minimize tampering.

• Additional Features:

• Emergency high-pressure shutoff valves outside the cabinet for emergency isolation of header bars.

• Integral check valves for each station in the header bar.

• Upgrade Capabilities:

• Can be upgraded post-installation for use with low or medium pressure portable bulk vessels.

• Adjustable for higher or lower delivery pressures.

• Dimensions and Weights (Approximate):

• Cabinet Dimensions: Varies based on model, typically around 30" H x 24" W x 12" D (76.2 cm x 61 cm x 30.5 cm).

• Weight: Approximately 150 lbs (68 kg), varies by configuration.

• Delivery Pressure Range:

• Typically adjustable from 0 to 100 psi (0 to 689 kPa).

• Input Pressure:

• Designed for standard medical gas supply pressures, typically around 2000 psi (13790 kPa) for bulk tanks.

• Max Flow Rate:

• Varies per model, generally up to 1000 L/min (35.3 CFM) depending on application needs.
