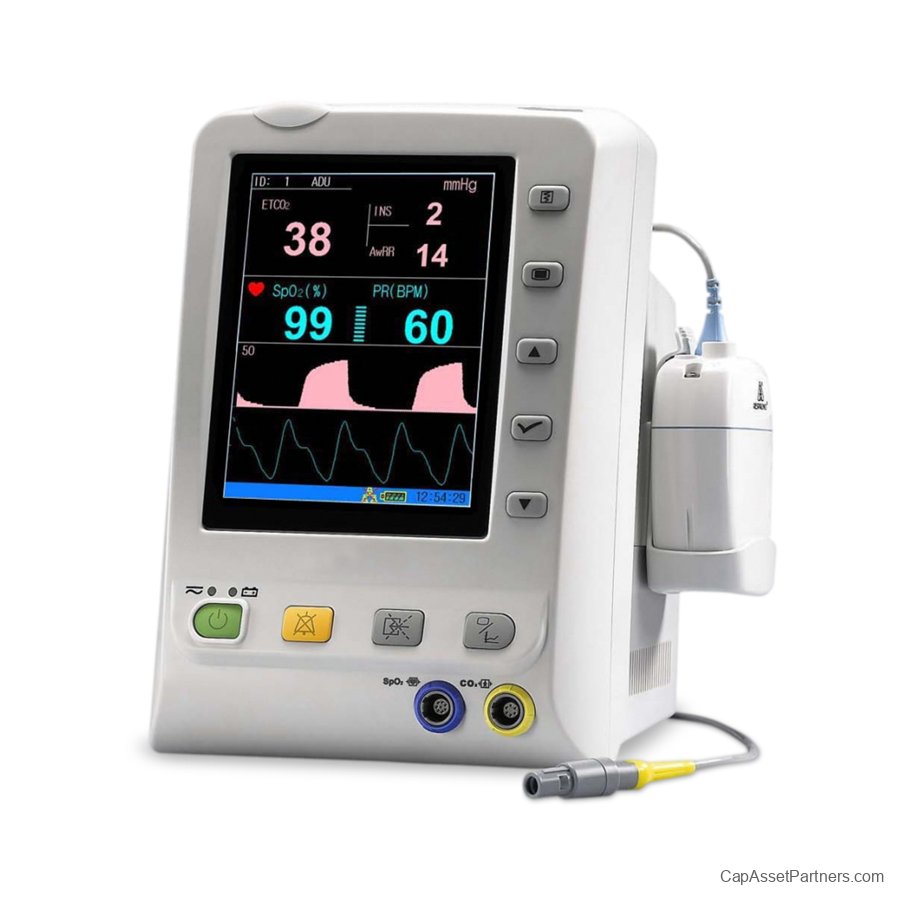

Avante Echo CO2 - Capnography Monitor

Avante Echo CO2

• Capnography Monitor: Your Solution for Effective EtCO2 Monitoring

Enhance patient care with the Avante Echo Capnography Monitor, designed for both intubated and non-intubated patients requiring continuous long-term monitoring. This cost-effective solution not only delivers precise EtCO2 measurements but is also tailored for use in mechanically ventilated scenarios. For those seeking additional functionality, the optional Nellcor SpO2 feature ensures a comprehensive monitoring experience.
Capnography is becoming the prevalent standard of care, surpassing traditional Pulse Oximetry, particularly in outpatient surgery settings. Discover the significant advantages of CO2 monitoring through our informative insights.
Product Features:

• High-Resolution Display: A 5.7-inch display for clear, intuitive readings.

• Portable Design: Lightweight and user-friendly, facilitating easy operation across various settings.

• Flexible Configurations: Adaptable to meet diverse clinical requirements seamlessly.

• Optional Nellcor SpO2 Monitoring: Expand your capabilities with this additional feature.

• Precise Measurements: PR measurement, along with Respironics Loflo sidestream or CAPNOSTAT 5 EtCO2 mainstream measurement.

• Robust Data Storage: Powerfully designed to retain crucial monitoring data for review.

• Real-time Monitoring: Track parameters in real time with a trend table for simplified oversight.

• Extended Battery Life: A built-in rechargeable Lithium-ion battery offers up to 10 hours of continuous performance.

• Network Communication: Supports bi-directional communications with central stations through wired or wireless networks.

• Nurse Call Feature: Ensures prompt response in clinical environments.

• Versatile Usage: Suitable for adult, pediatric, and neonatal patients.

The Avante Echo Capnography Monitor combines accuracy, portability, and advanced features, making it an essential tool for healthcare professionals dedicated to improving patient outcomes.

Avante Echo CO2

• Capnography Monitor Specifications

General:

• Size: 200.8 mm (L) × 241 mm (H) × 189 mm (D) | 7.9 in (L) × 9.5 in (H) × 7.4 in (D)

• Weight: 3 kg | 6.6 lbs

• Display: 5.7 inches

• Color TFT Resolution: 640 x 480

• Power Supply: 100-240 VAC, 50/60 Hz

• Pmax: 70 VA FUSE T 1.6AL

• Battery Type: Lithium-ion

• Voltage: 14.8 V DC | Capacitance: 4,400 mAh

• Working Period: Color TFT 480 min

• Rechargeable Period: < 360 min

• Thermal Recorder: (Optional)

• Record Width: 48 mm | 1.9 in

• Paper Speed: 25 mm/s | 0.98 in/s

---

SpO2 (Standard)

General:

• Measuring Range: 0 ~ 100 %

• Alarm Range: 0 ~ 100 %

• Resolution: 1 %

Accuracy:

• Adult (including Pediatric):

• ± 2% (70% ~ 100% SpO2)

• Undefined (0 ~ 70% SpO2)

• Neonate:

• ± 3% (70% ~ 100% SpO2)

• Undefined (0 ~ 70% SpO2)

Pulse Rate:

• Measuring and Alarm Range: 30 ~ 300 bpm | 30 ~ 300 beats per minute

• Resolution: 1 bpm

• Accuracy: ± 3 bpm

• Data Update Period: 2 s

• Compliance: ISO 9919

---

SpO2 (Option, by Nellcor OxiMax)

General:

• Measuring Range: 1 ~ 100 %

• Alarm Range: 1 ~ 100 %

• Resolution: 1 %

Accuracy:

• Adult (including Pediatric):

• ± 2% (70% ~ 100% SpO2)

• Undefined (0 ~ 70% SpO2)

• Neonate:

• ± 3% (70% ~ 100% SpO2)

• Undefined (0 ~ 70% SpO2)

Pulse Rate:

• Measuring and Alarm Range: 20 ~ 300 bpm | 20 ~ 300 beats per minute

• Resolution: 1 bpm

• Accuracy: ± 3 bpm

---

Respironics CO2

Mainstream:

• CO2 Measurement Range:

• 0 to 150 mm Hg | 0 to 19.7 %

• 0 to 20 kPa (at 760 mm Hg)

• Rise Time:

• < 60 ms (Adult/Infant)

• Reusable or Single Patient Use

• Airway Adapter

• CO2 Resolution:

• 0.1 mm Hg (0 to 69 mm Hg)

• 0.25 mm Hg (70 to 150 mm Hg)

• CO2 Accuracy:

• 0-40 mm Hg: ± 2 mm Hg

• 41 - 70 mm Hg: ± 5% of reading

• 71 - 100 mm Hg: ± 8% of reading

• 101 - 150 mm Hg: ± 10% of reading

• Above 80 bpm: ± 12% of reading

• CO2 Stability:

• Short Term Drift: ? 0.8 mm Hg over 4 hours

• Long Term Drift: Maintained over a 120-hour period

• Respiration Rate Accuracy: ± 1 breath

• Calibration: No routine user calibration required; airway adapter zero required when changing styles

• Water Resistance: IPX4 (Splash-proof, sensor head only)

• Shock Impact:

• EN60068-2-6 (Sinusoidal Vibration)

• EN60068-2-27 (Shock)

• EN60068-2-64 (Random Vibration)

• Can withstand 6 ft drops onto tiled floor while operating

Sidestream:

• Sample Rate: 50 mL/min

• CO2 Measurement Range:

• 0 - 150 mm Hg | 0 to 20 kPa (at 760 mm Hg)

• Barometric Pressure supplied by Host

• CO2 Resolution:

• 0.1 mm Hg (0 to 69 mm Hg)

• 0.25 mm Hg (70 to 150 mm Hg)

• CO2 Accuracy:

• 0 - 40 mm Hg: ± 2 mm Hg

• 41 - 70 mm Hg: ± 5% of reading

• 71 - 100 mm Hg: ± 8% of reading

• 101 - 150 mm Hg: ± 10% of reading

• Above 80 bpm: ± 12% of reading

• CO2 Stability:

• Short Term Drift: ? 0.8 mm Hg over 4 hours

• Long Term Drift: Maintained over a 120-hour period

• Respiratory Rate Range: 2 to 150 bpm

• Respiratory Rate Accuracy: ± 1 breath

• Sample Cell/Filter: Integrated proprietary single patient use sample cell and inline filter

• Nasal Sampling Kits: Available for adult, pediatric, and infant patients

• On-Airway Adapter Kits: Available for intubated patients with various configurations

• Sample Kit Hours of Use:

• Nasal Cannula (all styles): Up to 12 hours

• On-Airway Adapter Kits (without dehumidification): Up to 12 hours

• Sample Cell Detection: Auto-activation of sampling pump with insertion/removal

• Water Resistance: IPX4 (splash-proof with sample cell)

• Shock Impact: IEC TR 60721-4-7 Class 7M3; withstands significant vibrations/high shock levels

Specifications subject to change without notice.
