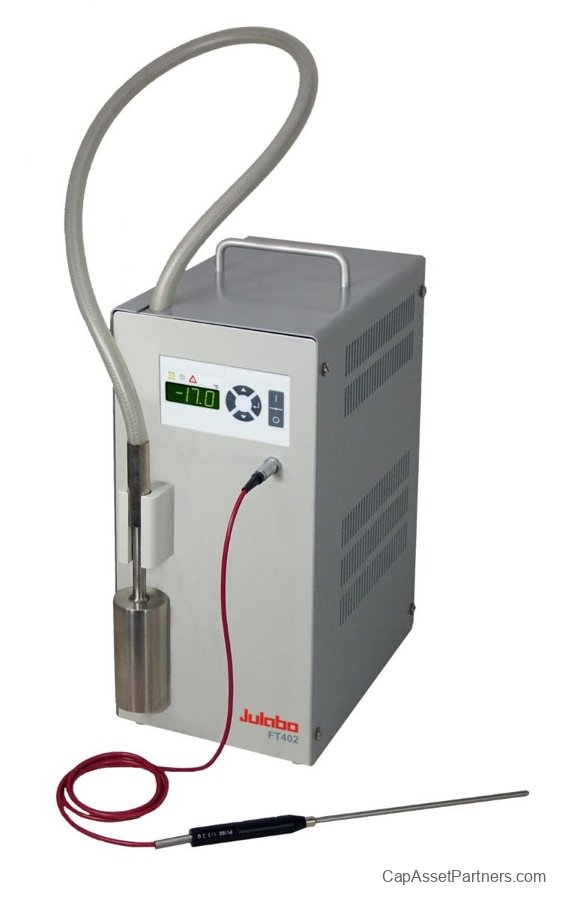

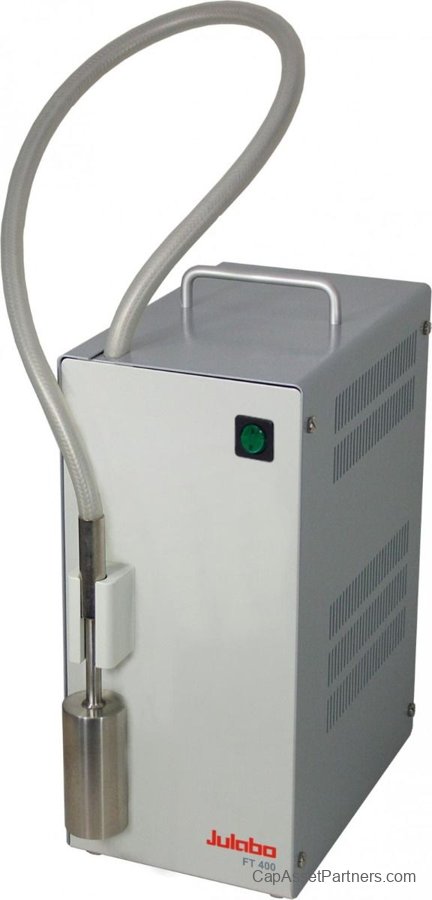

FT Series Immersion Cooler
The FT Series Immersion Cooler is engineered to provide efficient cooling solutions for a variety of applications. Primarily used for countercooling open bath circulators to ambient temperatures or even below, this immersion cooler excels at rapidly cooling liquids while minimizing reliance on tap water. Its compact design makes it an economical choice for laboratories and other environments where space is a premium.
Key Features:
- Rapid Liquid Cooling: Achieves low temperatures quickly, ideal for sensitive applications.
- Counter-Cooling: Works in synergy with heating circulators to optimize temperature control.
- Environmentally Friendly: Reduces or eliminates the need for tap water in cooling processes.
- User-Friendly: Designed for straightforward operation and hassle-free handling.
- Compact Design: Small footprint for easy integration into various workspaces.
- Dry Ice Substitution: Provides an alternative for dry ice applications, enhancing versatility.
Specifications:
SKU |
Temperature Range |
Immersion Probe |
Cooling Capacity |
Cooling Compressor |
Voltage |
9650892.2 |
-90 to +30°C |
25.6 x 0.6 flexible (l x dia.) inch |
300 W |
Air |
115V/60Hz |
9650842.2 |
-40 to +30°C |
4.7 x 2 (l x dia.) inch |
450 W |
Air |
115V/60Hz |
9650840.2 |
-40 to +30°C |
4.7 x 2 (l x dia.) inch |
450 W |
Air |
115V/60Hz |
9650820.2 |
-20 to +30°C |
3.5 x 1.6 (l x dia.) inch |
250 W |
Air |
115V/60Hz |
9650890.3 |
-90 to +30°C |
25.6 x 0.6 flexible (l x dia.) inch |
300 W |
Air |
230V/50-60Hz |
9650893.33 |
-90 to +30°C |
2.205 x 5.512 (H x dia.) inch |
300 W |
Air |
230V/50-60Hz |
Additional Information:
SKU |
Shipping Weight |
Shipping Dimensions |
Refrigerant |
Connection Tube Length |
Dimensions |
9650892.2 |
166 lb |
32 x 24 x 42 in |
R23, R404A |
63 in |
15 |
9650842.2 |
158 lb |
24 x 32 x 40 in |
115V/60Hz = R134a, 230V/50Hz = R404A |
47.2 in |
7.9 |
9650840.2 |
158 lb |
24 x 32 x 40 in |
115V/60Hz = R134a, 230V/50Hz = R404A |
47.2 in |
7.9 |
9650820.2 |
158 lb |
24 x 32 x 40 in |
R134a |
47.2 in |
7.1 |
9650890.3 |
166 lb |
32 x 24 x 42 in |
R23, R404A |
63 in |
15 |
9650893.33 |
166 lb |
32 x 24 x 42 in |
R23, R404A |
63 in |
15 |
