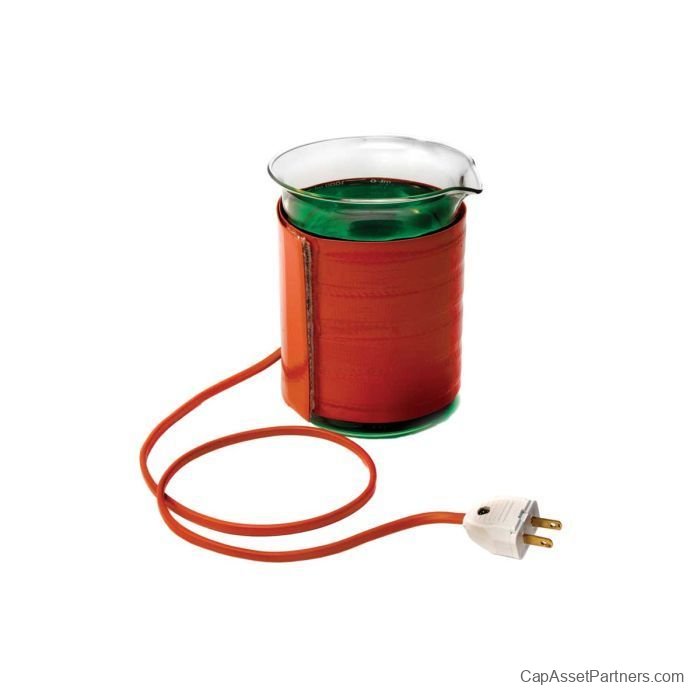

GBH Silicone Rubber Griffin Beaker Heaters
The GBH Silicone Rubber Griffin Beaker Heaters are expertly designed to provide consistent and uniform heating for Griffin and standard beaker applications in laboratory and oil bath settings. Utilizing a removable hook and loop fastener, these heaters allow for effortless access to graduation markings, ensuring convenience and efficiency in your workflows.
Temperature controller is required for safe operation of this product.
Features:
- Maximum Exposure Temperature: 450°F (232°C)
- Compatibility: Fits Griffin and standard size beakers
- Durability: Moisture and chemical resistant, allowing you to work without the worry of spills
- Voltage Options:
- 120 VAC: Standard 2-prong plug (NEMA 1-15)
- 240 VAC: Bare wire connection
- Application: Ideal for Laboratory and Oil Bath Applications

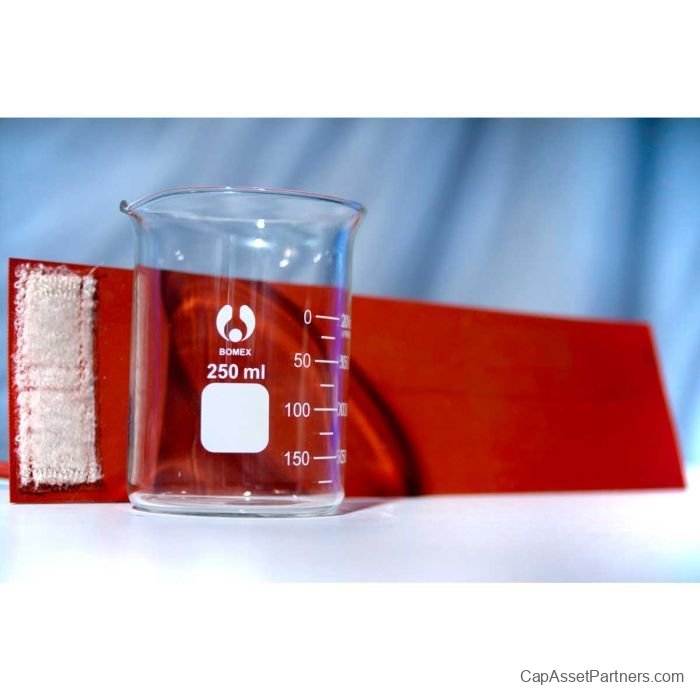

- Easy to Use: Removable design with hook and loop fastener for easy access to graduations
- Power Density: 5.0 W/in² (0.8 W/cm²)
- Dielectric Strength: Over 2000 volts for enhanced safety
- Outer Material: 15 mil fiberglass reinforced silicone rubber for robust performance
- Power Cord Length: 24 in (0.6 m) for flexible placement
Specifications:
| SKU |
Material |
Max Temperature |
Height |
Length |
Density |
| GBH0250-1 |
15 mil Fiberglass Reinforced Silicone Rubber |
450°F (232°C) |
3.0 in (76 mm) |
12.25 in (311 mm) |
5.0 W/in² (0.8 W/cm²) |
| GBH0400-1 |
15 mil Fiberglass Reinforced Silicone Rubber |
450°F (232°C) |
3.5 in (89 mm) |
13.75 in (349 mm) |
5.0 W/in² (0.8 W/cm²) |
| GBH0600-1 |
15 mil Fiberglass Reinforced Silicone Rubber |
450°F (232°C) |
4.0 in (102 mm) |
15 in (381 mm) |
5.0 W/in² (0.8 W/cm²) |
| GBH1000-1 |
15 mil Fiberglass Reinforced Silicone Rubber |
450°F (232°C) |
4.6 in (117 mm) |
17.25 in (438 mm) |
5.0 W/in² (0.8 W/cm²) |
| GBH0250-2 |
15 mil Fiberglass Reinforced Silicone Rubber |
450°F (232°C) |
3.0 in (76 mm) |
12.25 in (311 mm) |
5.0 W/in² (0.8 W/cm²) |
| GBH0400-2 |
15 mil Fiberglass Reinforced Silicone Rubber |
450°F (232°C) |
3.5 in (89 mm) |
13.75 in (349 mm) |
5.0 W/in² (0.8 W/cm²) |
| GBH0600-2 |
15 mil Fiberglass Reinforced Silicone Rubber |
450°F (232°C) |
4.0 in (102 mm) |
15 in (381 mm) |
5.0 W/in² (0.8 W/cm²) |
| GBH1000-2 |
15 mil Fiberglass Reinforced Silicone Rubber |
450°F (232°C) |
4.6 in (117 mm) |
17.25 in (438 mm) |
5.0 W/in² (0.8 W/cm²) |
Additional Information:
| SKU |
Wattage |
Certification |
Plug Type |
Lead Length |
| GBH0250-1 |
150W |
REACH, RoHS, IP54 |
NEMA 1-15 |
24 in (0.6 m) |
| GBH0400-1 |
200W |
REACH, RoHS, IP54 |
NEMA 1-15 |
24 in (0.6 m) |
| GBH0600-1 |
250W |
REACH, RoHS, IP54 |
NEMA 1-15 |
24 in (0.6 m) |
| GBH1000-1 |
350W |
REACH, RoHS, IP54 |
NEMA 1-15 |
24 in (0.6 m) |
| GBH0250-2 |
150W |
REACH, RoHS, IP54 |
Crimped Ferrule Leads |
24 in (0.6 m) |
| GBH0400-2 |
200W |
REACH, RoHS, IP54 |
Crimped Ferrule Leads |
24 in (0.6 m) |
| GBH0600-2 |
250W |
REACH, RoHS, IP54 |
Crimped Ferrule Leads |
24 in (0.6 m) |
| GBH1000-2 |
350W |
REACH, RoHS, IP54 |
Crimped Ferrule Leads |
24 in (0.6 m) |
