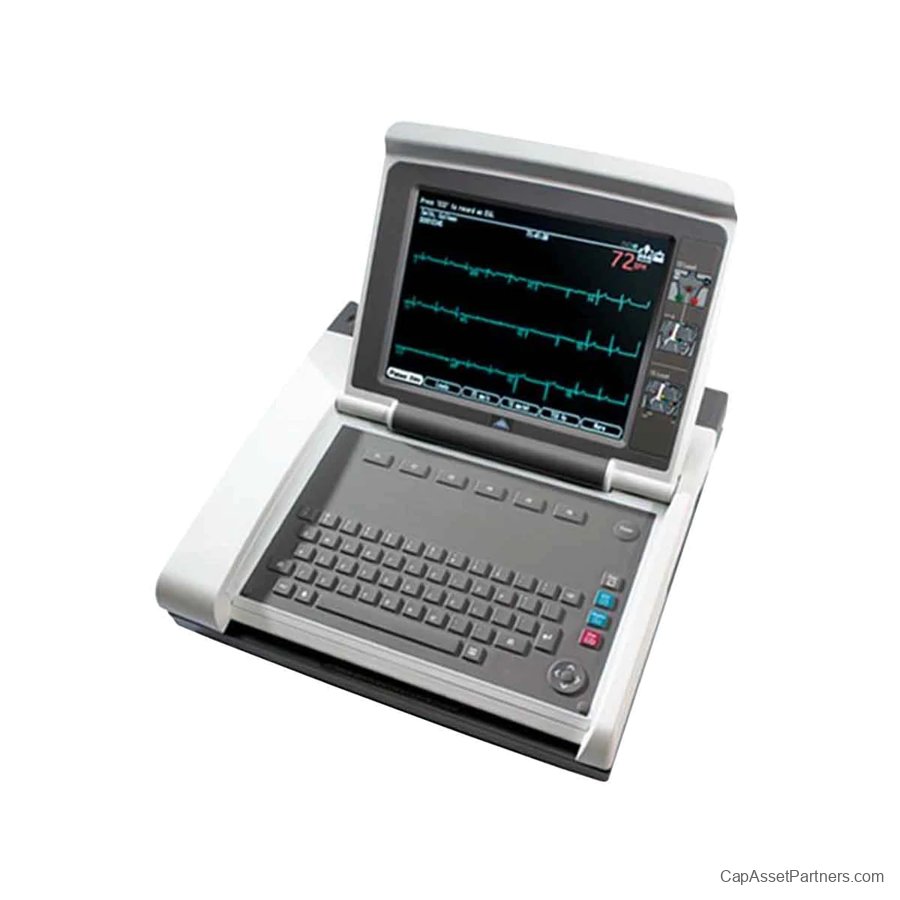

GE Mac 5500 HD EKG Machine

GE MAC 5500 HD EKG Machine: Elevate Your ECG Solutions
The GE MAC 5500 HD EKG Machine stands out as a top-tier resting ECG system, designed to enhance disease management through cutting-edge technology and superior algorithms. This industry-leading device ensures unparalleled speed and accuracy in ECG readings, making it an essential tool for healthcare professionals.
Key features of the MAC 5500 HD include:

• Advanced Triaging Tools: Equipped with top-notch capabilities for Acute Coronary Syndrome (ACS) detection, facilitating faster diagnoses and management.

• Configurable Critical Values: Tailored settings allow for expedited treatment decisions, ensuring that critical conditions are addressed promptly.

• Enhanced Pacemaker Detection: With sophisticated interpretation of paced rhythms, the high-definition acquisition module enables more accurate diagnostics.

• Barcode Workflow Integration: Streamlined procedures with orders and ADT download capabilities improve operational efficiency, significantly reducing administrative burdens.

• Connected ECG Workflow: This feature not only saves time but also minimizes the risk of misdiagnoses, ensuring high-quality patient care.

Choose the GE MAC 5500 HD EKG Machine for an exceptional ECG experience that prioritizes accuracy and efficiency in your practice. Transform your patient care today with this leading-edge technology.

GE Mac 5500 HD EKG Machine Specifications (Old)

Display

• Display Type: 10.4 in (264 mm) diagonal graphics backlit color AM LCD

• Display Resolution: 640 x 480 pixels with waveform enhancement

• Display Data: Heart rate, patient name, ID, clock, waveforms, lead labels, speed, gain and filter settings, warning messages, prompts, and help messages

Writer

• Writer Technology: Thermal dot array

• Writer Speeds: 5, 12.5, 25, and 50 mm/s

• Number of Traces: 3, 6, 12, or 15 user selectable

• Writer Sensitivity/Gain: 2.5, 5, 10, 20, 10/5 (split calibration) mm/mV

• Writer Speed Accuracy: ±2%

• Amplitude Accuracy: ±5%

• Writer Resolution: Horizontal 1000 dpi @ 25 mm/s, 200 dpi vertical

• Paper Type: Thermal, Z-fold, perforated, fan fold, 300 sheets/pack

• Paper Size A: 8.5 in x 11 in (214.6 mm x 280 mm)

• A4 Size: 8.27 in x 11.7 in (210 mm x 297.5 mm)

Keyboard

• Type: Sealed elastomer with soft function keys, alphanumeric keys, writer controls, and TrimPad cursor controls

Electrical

• Power Supply: AC or battery operation

• Voltage: 100 to 240 VAC

• Current: 0.5A @ 115 VAC, 0.3A @ 240 VAC, typical, 0.85A max

• Frequency: 50 to 60 Hz

• Battery Type: User replaceable, 18V @ 3.5 AH ±10% rechargeable NiMH

• Battery Capacity: 100 single page reports (typical) or six hours continuous display (without printing)

• Battery Charge Time: Approximately 4.5 hours from total discharge (with display off)

Vectorcardiography

• Report Formats: Vector loops of component vectors (P, QRS, ST-T)

• Sensitivity: 20, 40, 80, or 160 mm/mV

• Time Resolution: 2 ms

Hi-Res Late Potential Analysis and P-Wave Signal– AVERAGED ECG

• Sensitivity:

• Raw Data Template: 20 mm/mV

• Average Beat: 20 mm/mV and 50 mm/mV

• Filtered Signals and Vector Magnitude: 1 mm/µV

• Analysis Sampling Rate: 1,000 samples/second/channel

• Digital Sampling Rate: 16,000 samples/second/channel

• High/Low Pass Filters: Special filter using Fast Fourier Transform (FFT)

Physical Specifications

• Height: 3.7 in (9.4 cm)† with display closed

• Width: 15 in (38.1 cm)†

• Depth: 13.8 in (35.1 cm)†

• Weight: Approximately 6.8 kg (15 lbs)† including battery, without paper

Environmental Specifications

• Temperature:

• Operating: 50° to 104° F (10° to 40° C)

• Transport/Storage: –40° to 158° F (–40° to 70° C)

• Humidity:

• Operating: 20% to 95% RH non-condensing

• Transport/Storage: 15% to 95% RH non-condensing

• Pressure:

• Operating: 700 to 1060 hPA

• Transport/Storage: 500 to 1060 hPA

Magnetic Card Reader Specifications

• Character Set: ANSI/ISO ALPHA alphanumeric characters and ANSI/ISO BCD (subset of ASCII [ISO 646 IRV:1991])

Bar Code Scanner Specifications

• Symbologies: Code 39 (extended), PDF-417, Code 128, Data Matrix, Interleaved 2 of 5

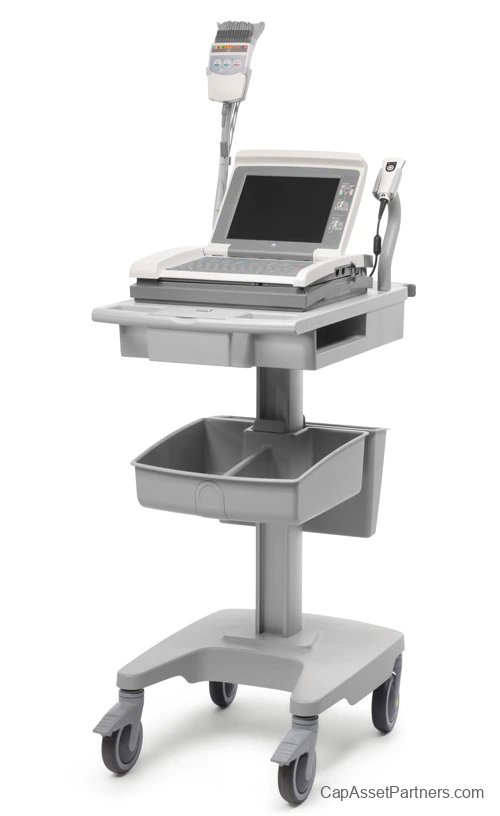

Modular MAC Trolley Dimensions

• Height: 37 in (94 cm)

• Width: 19 in (47 cm)

• Depth: 27 in (69 cm)

• Height with Acquisition Module Holder: 59 in (150 cm)

• Weight: 66 lbs (30 kg)††

• Options: Barcode scanner holder
